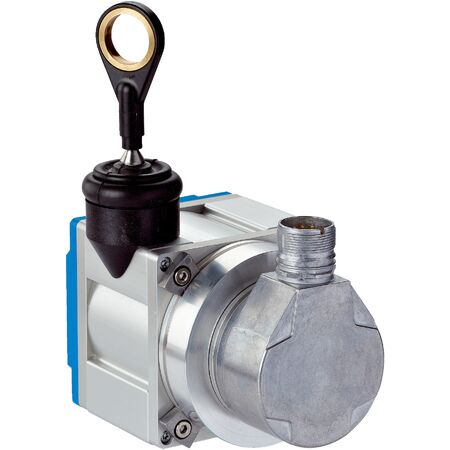

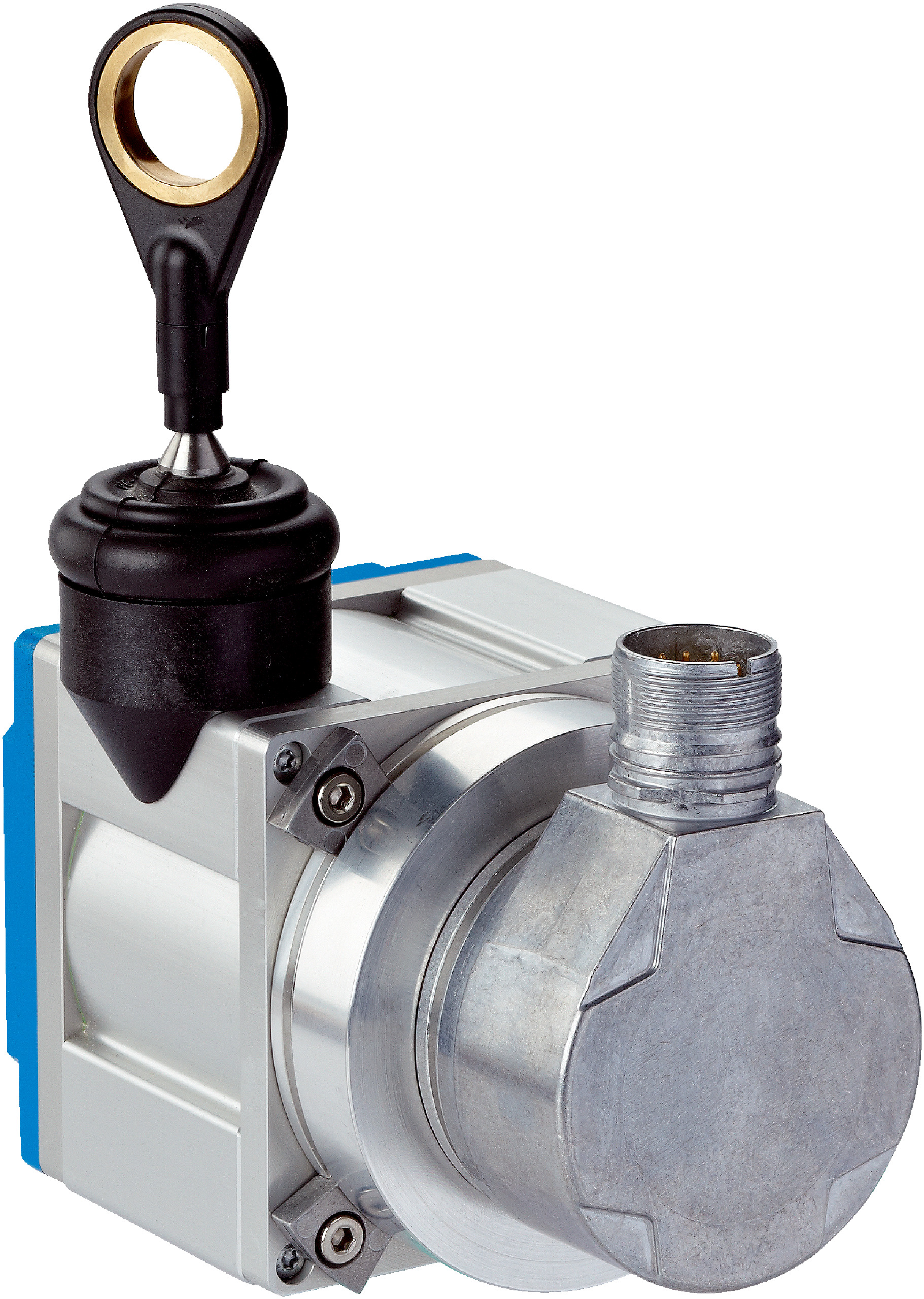

Wire Draw Encoder Sensor PRF08-C1AM0240 | 300 Years MTTFD | 0.02 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder Sensor PRF08-C1AM0240 is designed for precise wire length measurement in industrial automation. With a remarkable 300 years mean time to dangerous failure (MTTFD) and a high resolution of 0.02 mm, it ensures reliable feedback for safety-related applications. Built for durability with an IP64 enclosure rating, this encoder operates efficiently in temperatures ranging from -30 °C to +70 °C, making it ideal for various manufacturing control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Encoder Sensor PRF08-C1AM0240 | 300 Years MTTFD | 0.02 mm Resolution | IP64 Rated | by SICK
Brand: SICK
SKU: 1034329
Alternatively Known As: Wire Draw Encoder, Wire Draw Sensor, Incremental Encoder Sensor, Safety Wire Draw Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Measurement range: 0 m to 2 m
- Encoder type: Incremental encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / TTL / RS-422
- Programmable/configurable interface
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder: DFS60 series
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: -30 °C to +70 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 1.6 kg
Key Features
- High mean time to dangerous failure (MTTFD) of 300 years according to EN ISO 13849-1
- Measurement range up to 2 meters
- High resolution of 0.02 mm with incremental encoders
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable incremental/TTL/RS-422 communication interface
- Robust aluminum housing with anodized and nickel-plated finishes
- IP64 enclosure rating with IP67 for mounted mechanic
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Measurement and control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PRF08-C1AM0240 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
