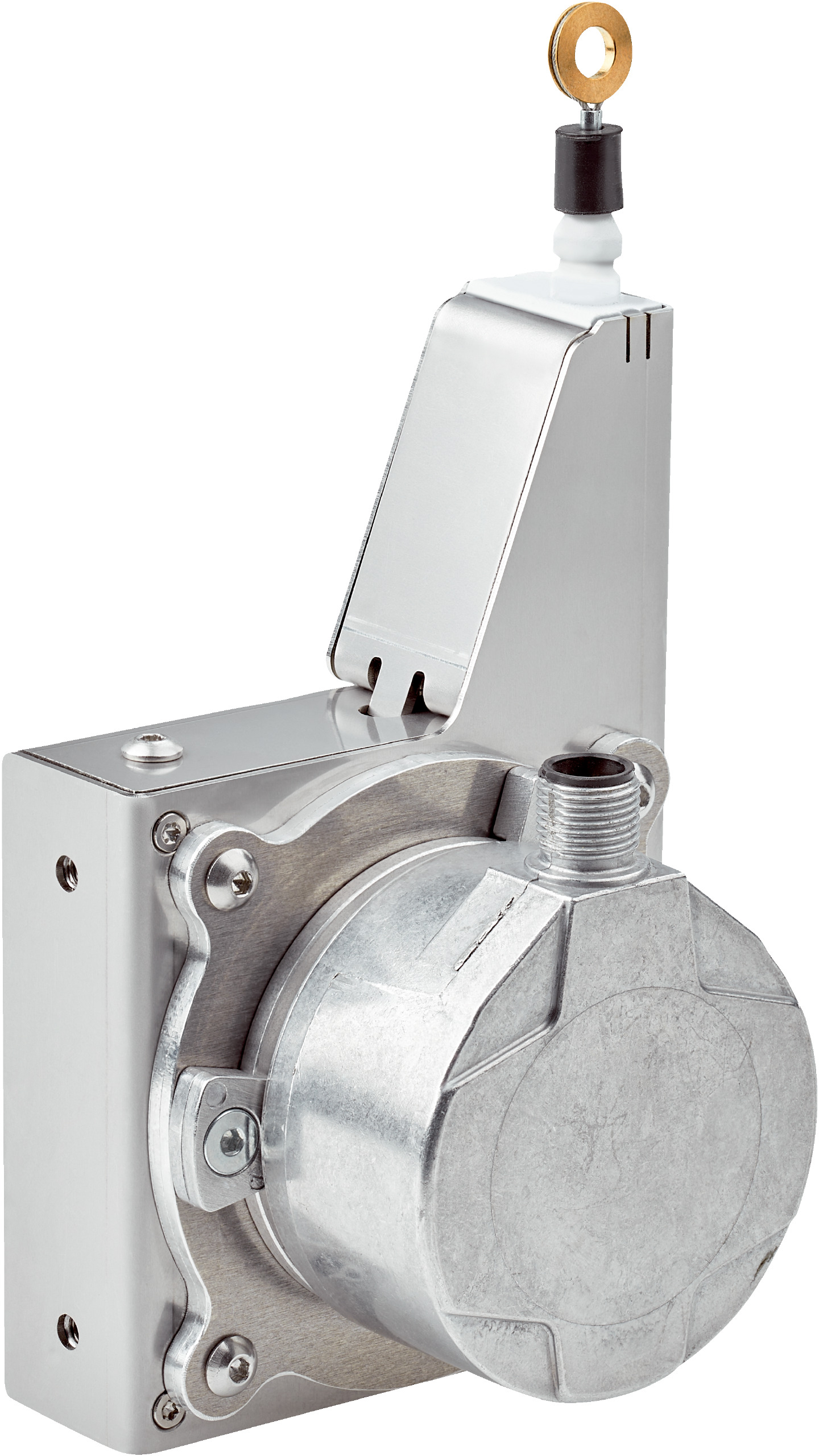

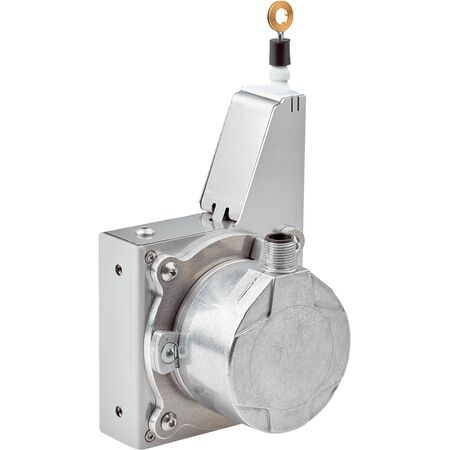

Wire Draw Encoder Sensor | 3m Measurement Range | 0.01mm Resolution | IP60 Rated | by SICK
The Wire Draw Encoder Sensor is designed for precise length measurement in industrial automation, featuring a measurement range of up to 3 meters and a high resolution of 0.01 mm. Built for safety monitoring in machinery, it offers robust stainless steel construction and operates efficiently in temperatures from -30 °C to +70 °C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: Incremental / HTL / Push pull
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.5 W (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder: DFS60, DFS60A-S1EC16384
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP60 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.9 kg
Key Features
- High mean time to dangerous failure (MTTFD) of 300 years according to EN ISO 13849-1
- Measurement range up to 3 meters
- High resolution of 0.01 mm with incremental encoders
- Repeatability of ≤ 0.3 mm and linearity of ≤ ± 2 mm
- Robust stainless steel housing and measuring wire
- Operating temperature range from –30 °C to +70 °C
- Low power consumption ≤ 0.5 W
- IP60 enclosure rating with IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related monitoring in machinery
- Position and speed measurement in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFV08-E1CM03B300 Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
