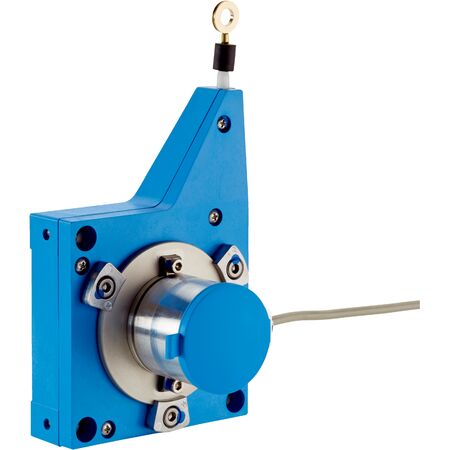

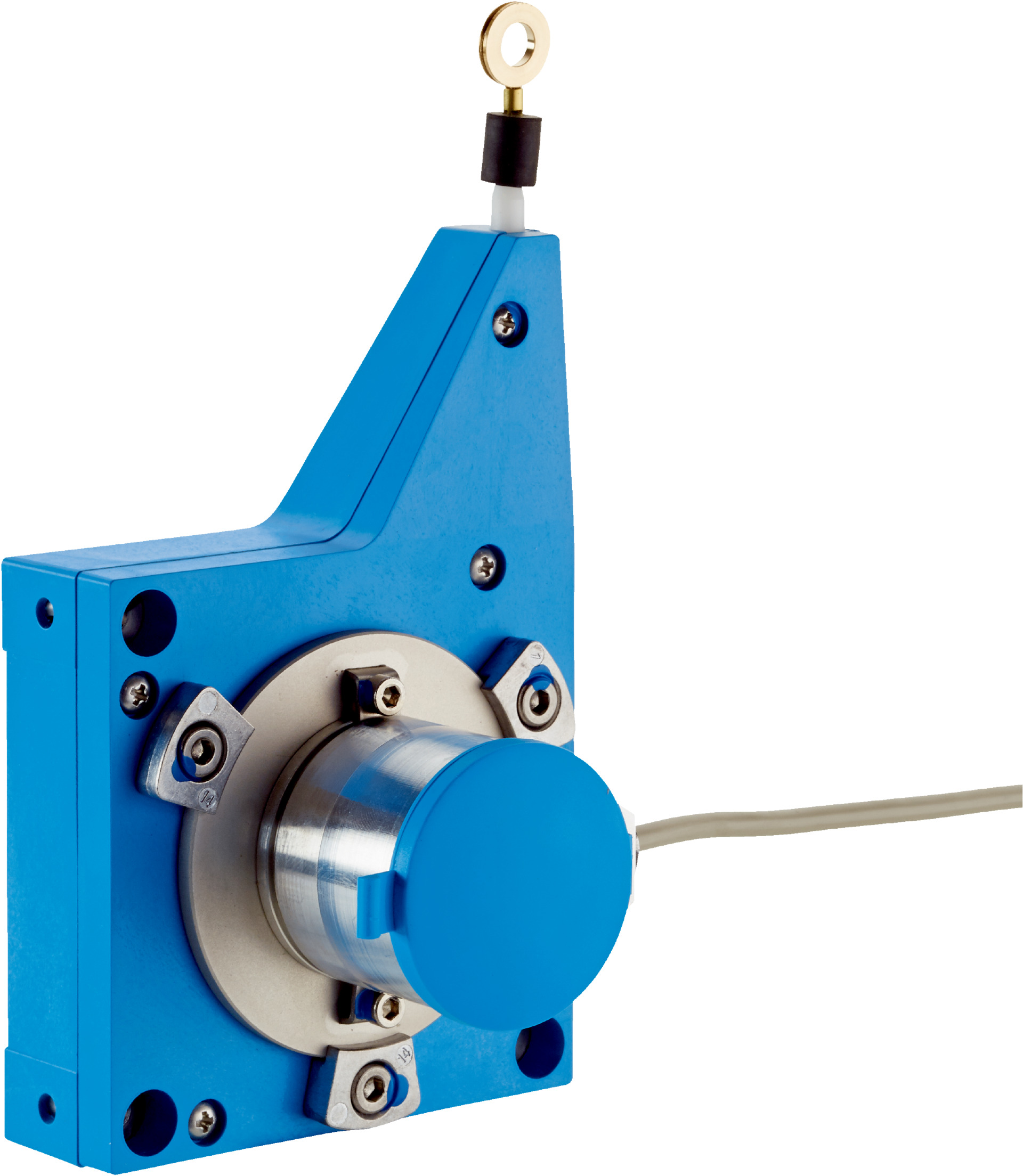

Wire Draw Encoder Sensor | Absolute Encoder | 0.06 mm Resolution | 3 m Measurement Range | IP50/IP65 Rated | by SICK
The Wire Draw Encoder Sensor is designed for precise length measurement in industrial automation, featuring an absolute encoder with a high resolution of 0.06 mm and a measurement range of up to 3 meters. Built with highly flexible stranded stainless steel wire, it ensures durability and reliability in safety-related applications, making it ideal for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog voltage 0...10 V
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 10 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: ACM36, ACM36-L1K0-K01
- Operating temperature range: -30°C to +70°C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50 (device), IP65 (mounted mechanic)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.35 kg
Key Features
- Absolute encoder with high resolution of 0.06 mm
- Measurement range up to 3 meters
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 3.3 N and 4.4 N
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
- IP50 enclosure rating, IP65 for mounted mechanic
- Low operating current ≤ 80 mA
- Communication via analog voltage 0...10 V
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-L1KM03PP Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
