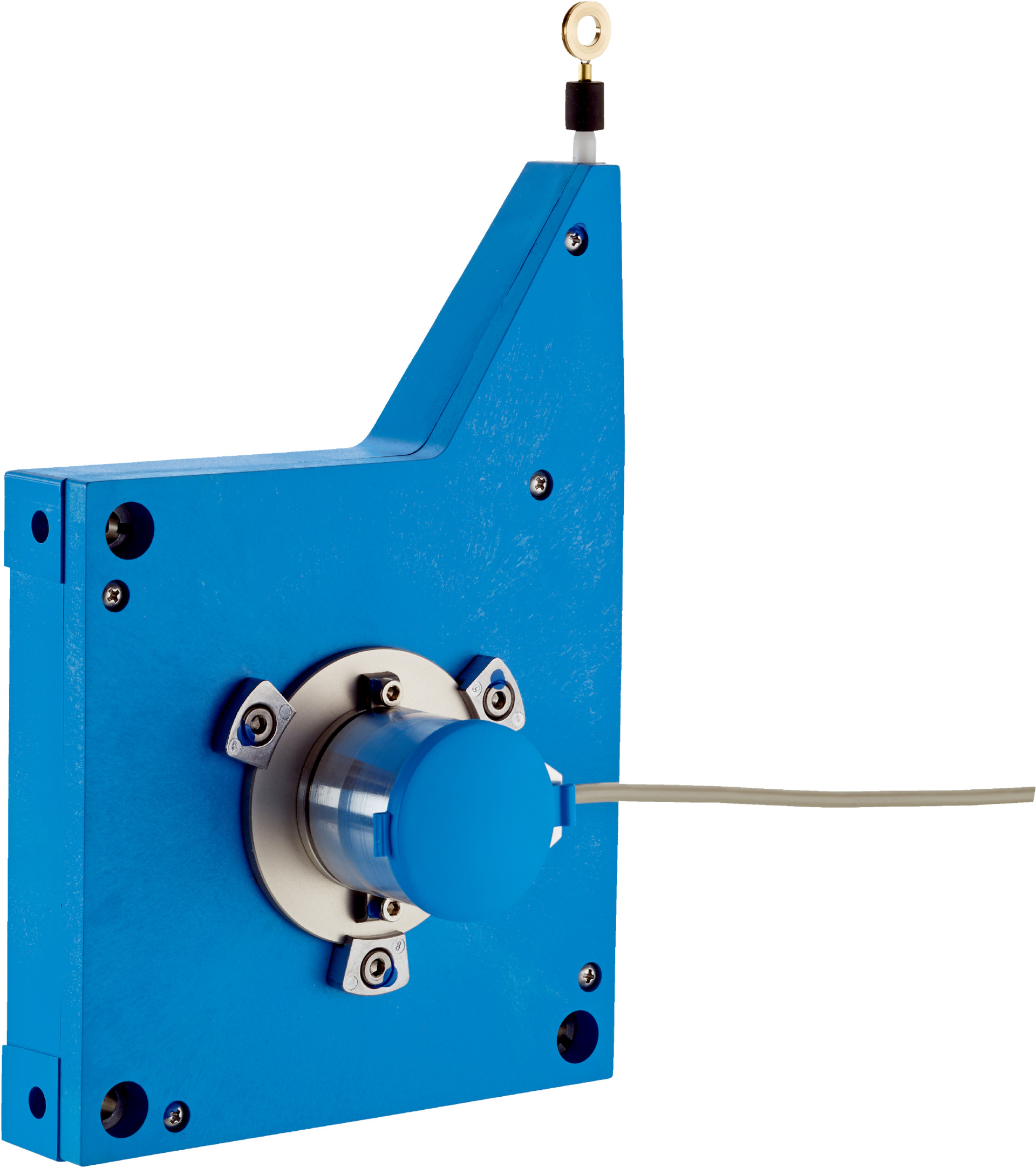

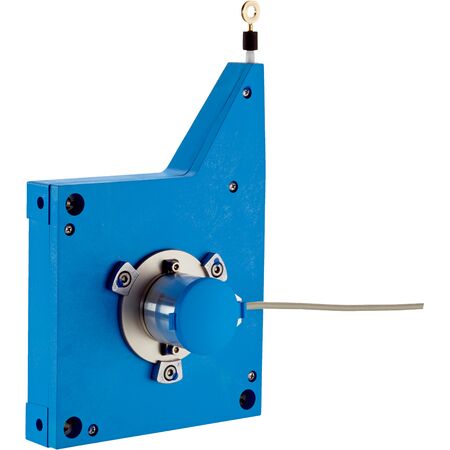

Wire Draw Encoder Sensor | Absolute Encoder | 0.1 mm Resolution | 5 m Measurement Range | by SICK
The Wire Draw Encoder Sensor is designed for precise position measurement in industrial automation, featuring an absolute encoder with a high resolution of 0.1 mm and a measurement range of up to 5 meters. With a robust IP50-rated housing and an operating temperature range from –30 °C to +70 °C, this sensor is perfect for safety-related applications and machine monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.1 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog / Current / 4...20 mA
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder model: ACM36, ACM36-K1K0-K01
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP50 (mechanic IP65, encoder)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.2 kg
Key Features
- Absolute encoder with high resolution of 0.1 mm
- Measurement range up to 5 meters
- Repeatability of ≤ 0.2 mm and linearity of ≤ ± 2 mm
- Robust plastic Noryl housing with IP50 rating, IP65 for mounted mechanic and encoder
- Spring return force between 4.5 N and 7 N
- Operating temperature range from –30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable distance measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (≤ 80 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG13-K1KM05PP Wire Draw Encoder Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
