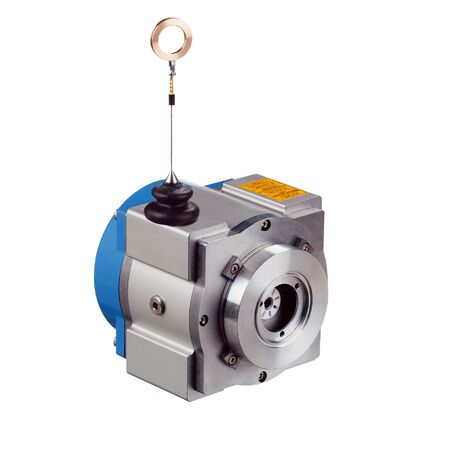

Wire Draw Mechanism MRA-F130-420D1 | 0m to 20m Measuring Range | IP64 Rated | by SICK
The Wire Draw Mechanism MRA-F130-420D1 is designed for precise linear measurement in industrial automation, featuring a measuring range of 0m to 20m and a reproducibility of ≤ 2mm. Built with highly flexible stranded stainless steel wire and an IP64 rated enclosure, it ensures durability and reliability in various applications, making it ideal for position feedback in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wire Draw Mechanism MRA-F130-420D1 | 0m to 20m Measuring Range | IP64 Rated | by SICK
Brand: SICK
SKU: 6029791
Alternatively Known As: Wire Draw Encoder Mechanism, Linear Wire Sensor, Wire Length Measurement Device
Technical Specifications
- Measuring range: 0 m to 20 m
- Reproducibility: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Weight: 6 kg
- Measuring wire material: Highly flexible stranded stainless steel 1,4401 V4A
- Spring housing material: Plastic
- Wire draw mechanism housing: Aluminum (anodised), plastic
- Length of wire pulled out per revolution: 332.4 mm
- Spring return force: ≤ 10 N to 20 N
- Measuring wire diameter: 0.81 mm
- Wire acceleration: 30 m/s²
- Operating speed: 6 m/s
- Ambient operating temperature: –30 °C to +70 °C
- Enclosure rating: IP64
- Life expectancy: Typically 1,000,000 cycles
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6 kg
Key Features
- HighLine wire draw mechanism for face mount flange with 10 mm shaft
- Measuring range from 0 m to 20 m
- Reproducibility ≤ 2 mm and linearity ≤ ± 2 mm
- Hysteresis ≤ 5 mm
- Highly flexible stranded stainless steel measuring wire
- Aluminum anodised and plastic housing
- Spring return force between ≤ 10 N and 20 N
- Operating speed up to 6 m/s
- IP64 rated mechanical enclosure
- Typical life of 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with mechanical measurement systems to ensure accurate setup and calibration.
Applications
- Industrial automation for precise linear measurement
- Position feedback in manufacturing processes
- Length measurement in material handling systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long lifecycle reduce waste and replacement frequency
- Energy efficient mechanical design requiring no power for the wire draw mechanism itself
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK MRA-F130-420D1 wire draw mechanism is available for immediate purchase, ideal for industrial automation and precise linear measurement applications.
