Wire Draw Sensor | Absolute Encoder | 0.07 mm Resolution | 10 m Measurement Range | by SICK
The Wire Draw Sensor is an absolute encoder designed for precise position measurement in industrial automation. With a measurement range of up to 10 m and a high resolution of 0.07 mm, it ensures accurate performance in safety monitoring and process control systems. Built for durability, it features a robust construction with stainless steel measuring wire and operates effectively in temperatures from –10 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

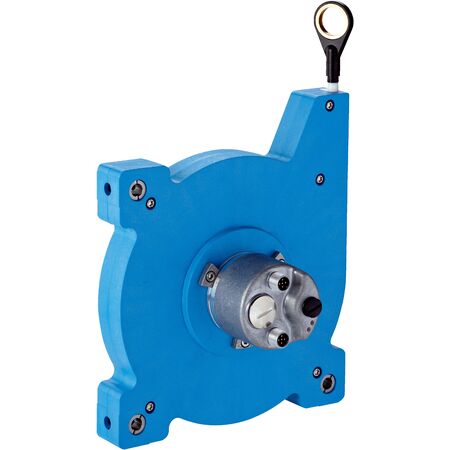

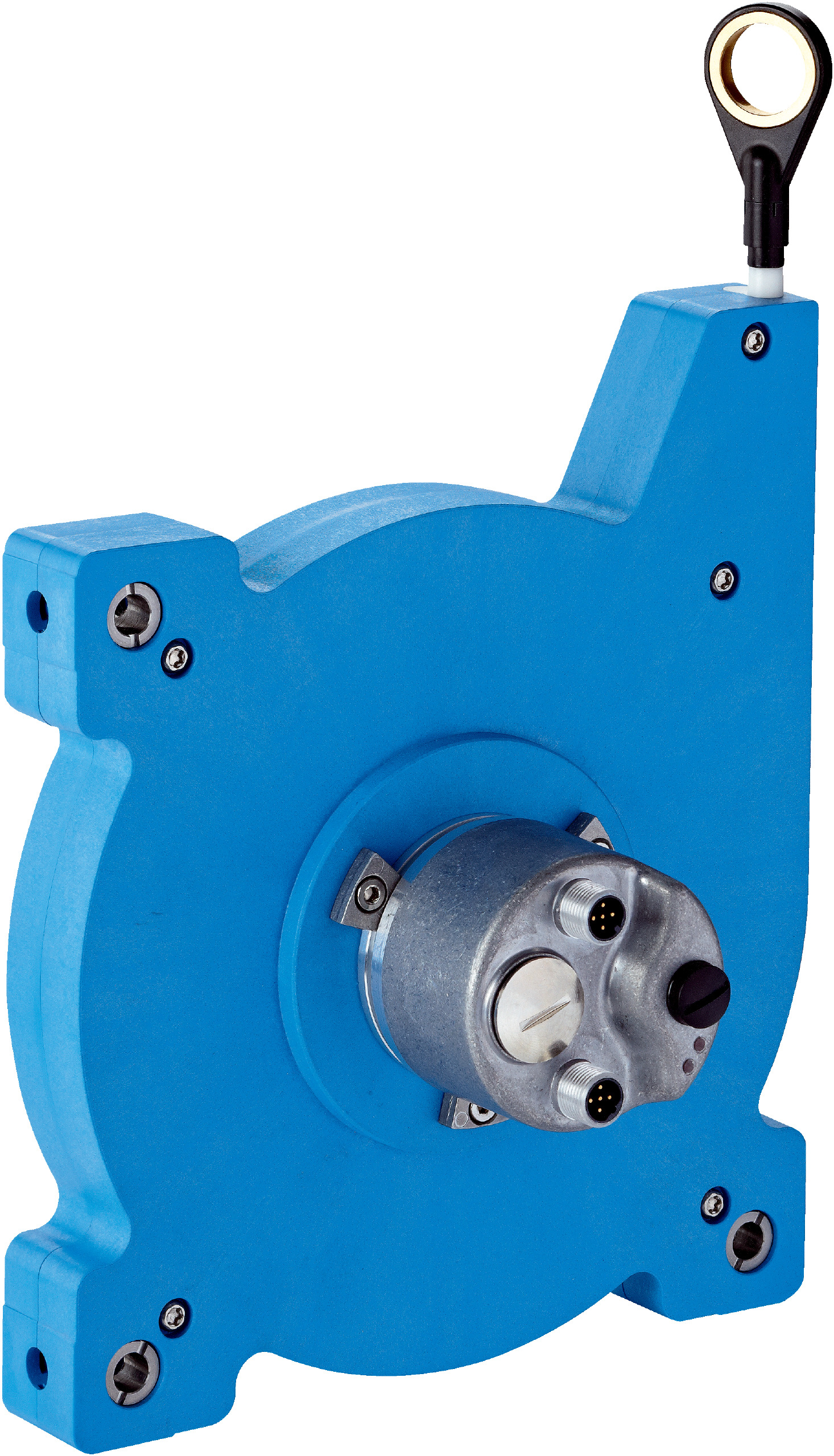

Product Name/Title: Wire Draw Sensor | Absolute Encoder | 0.07 mm Resolution | 10 m Measurement Range | by SICK
Brand: SICK
SKU: 1052620
Alternatively Known As: Wire Draw Sensor, Absolute Encoder Wire Draw, SICK Wire Draw Encoder, Linear Position Sensor
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.07 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFIBUS DP
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67)
- Operating temperature: –10 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.18 kg
Key Features
- Absolute encoder with high resolution of 0.07 mm
- Measurement range up to 10 m
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP interface
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Operating temperature range from –10 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP communication and industrial sensor integration to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Process control systems requiring accurate wire draw measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK BCG19-P1BM1015 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
