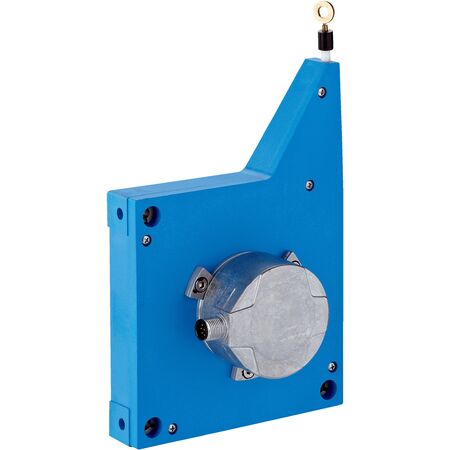

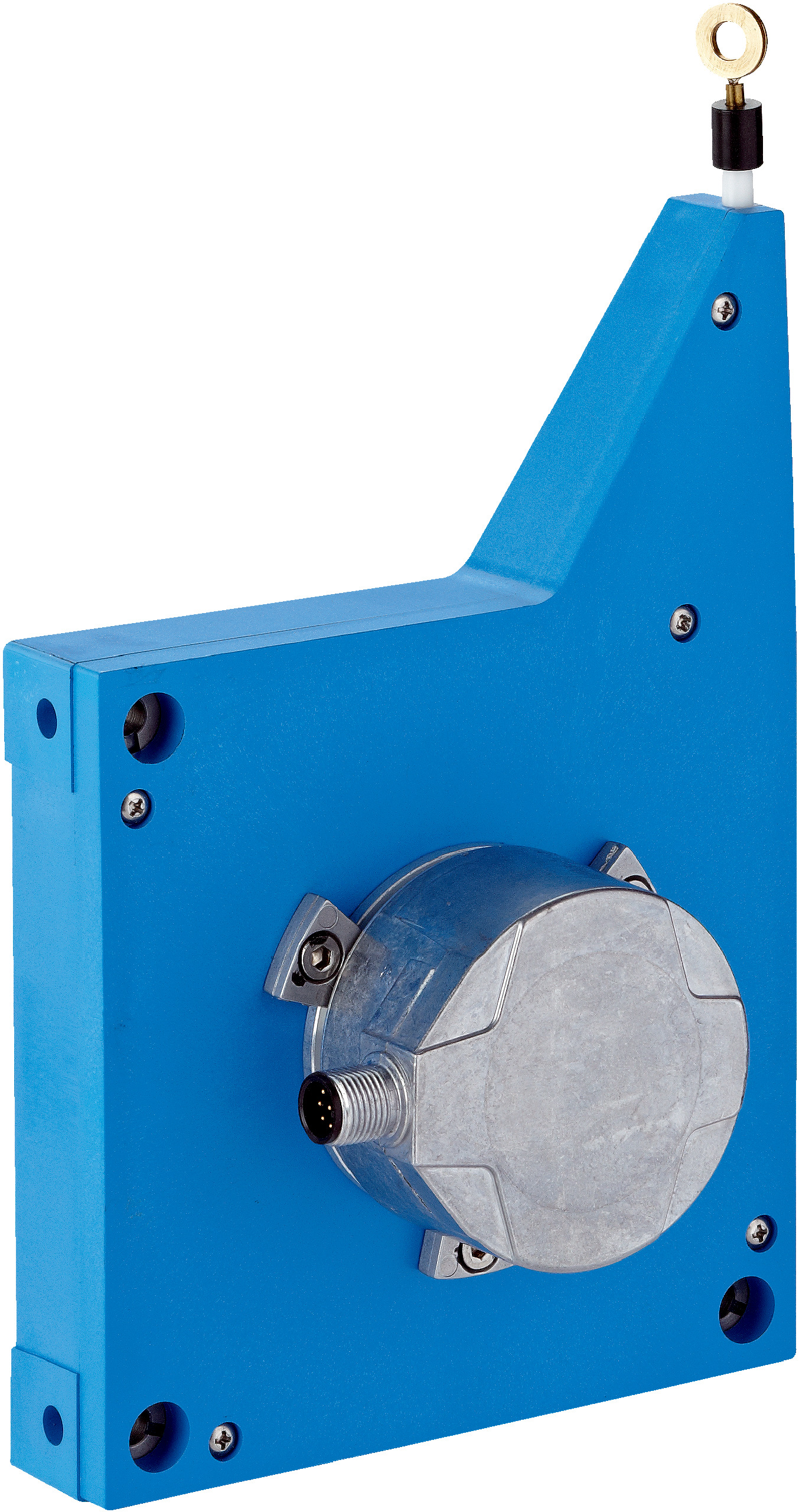

Wire Draw Sensor BCG13-A1CM0511 | Absolute Encoder | 5m Measurement Range | High Resolution 0.09mm | by SICK
The Wire Draw Sensor BCG13-A1CM0511 is designed for precise linear measurement in industrial automation. With a measurement range of up to 5 meters and an impressive resolution of 0.09 mm, it ensures high reliability for safety-related applications. Built with a robust plastic housing and stainless steel measuring wire, this sensor is perfect for machine monitoring and control systems, offering a long lifecycle and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.09 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 4 m/s²
- Operating speed: 3 m/s
- Mounted encoder model: AFM60 SSI
- Operating temperature range: 0 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 sensor, IP67 mounted mechanic
- Dimensions (H x L x W): 60mm x 150mm x 60mm
- Weight: 1.1 kg
Key Features
- Absolute encoder with SSI communication interface
- Measurement range up to 5 meters
- High resolution of 0.09 mm with repeatability ≤ 0.2 mm
- Robust plastic Noryl housing with stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from 0 °C to +70 °C
- Enclosure rating IP50 for the sensor, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BCG13-A1CM0511 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
