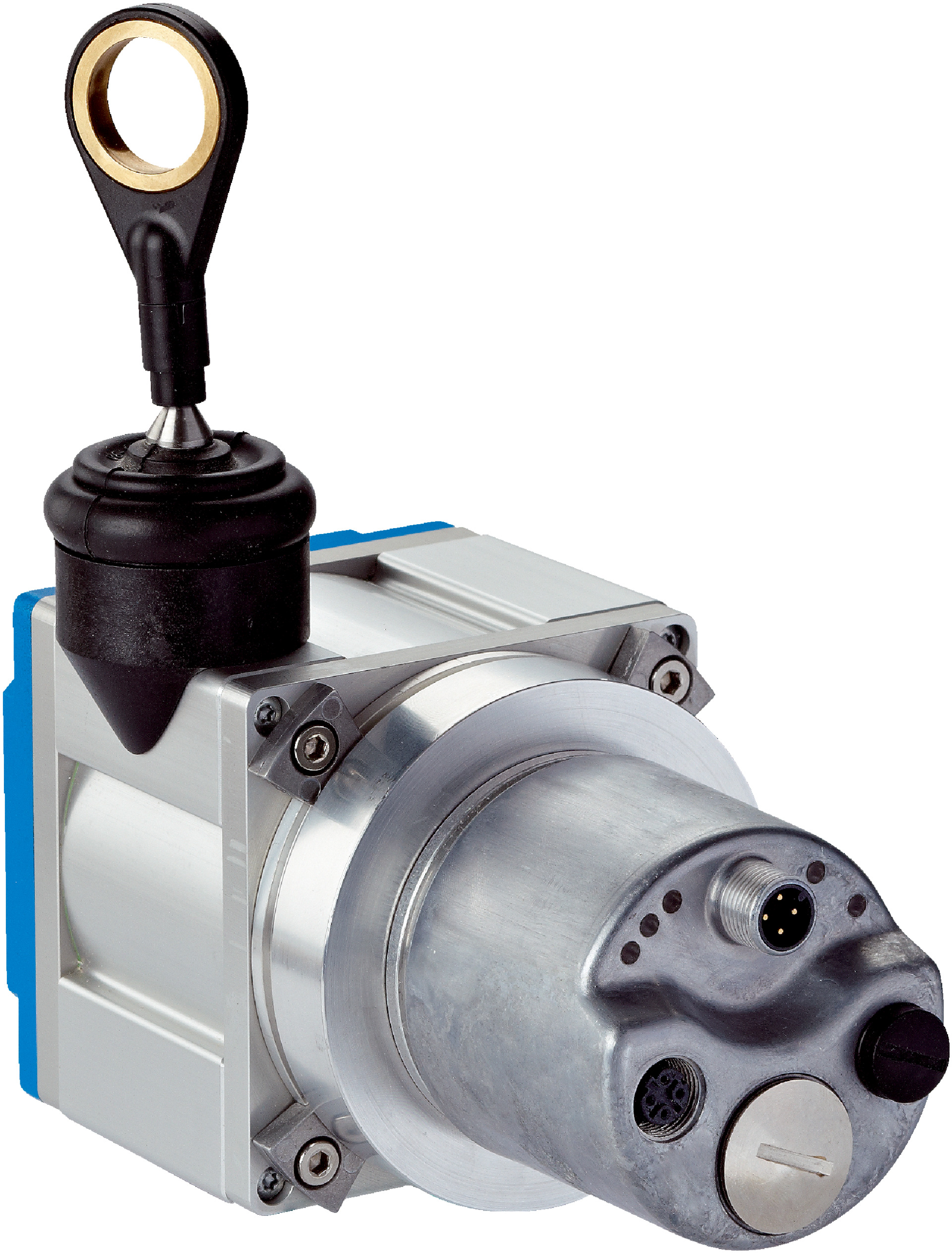

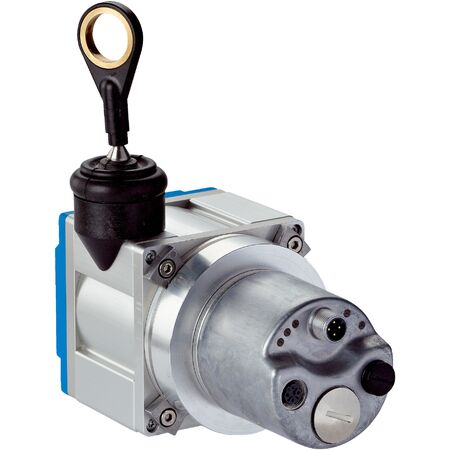

Wire Draw Sensor BTF08-N1BM0299 | 0.0008 mm Resolution | PROFINET Communication | IP64/IP67 Rated | by SICK
The Wire Draw Sensor BTF08-N1BM0299 offers an impressive measurement range of up to 2 meters with a high resolution of 0.0008 mm, making it ideal for industrial automation and machine safety systems. With robust IP64/IP67 protection and a long-lasting wire draw mechanism, this sensor ensures reliable performance in demanding environments, perfect for precise position measurement and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.0008 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Weight: 1.5 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mounted mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 200mm x 80mm
- Weight: 1.5 kg
Key Features
- Absolute encoder with high resolution of 0.0008 mm
- Measurement range up to 2 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFINET communication interface
- Robust aluminum housing with IP64/IP67 protection ratings
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 6 N and 14 N
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET systems and industrial sensor integration to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Machine safety systems requiring reliable wire draw measurement
- Process control with absolute encoder feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-N1BM0299 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise position measurement.
