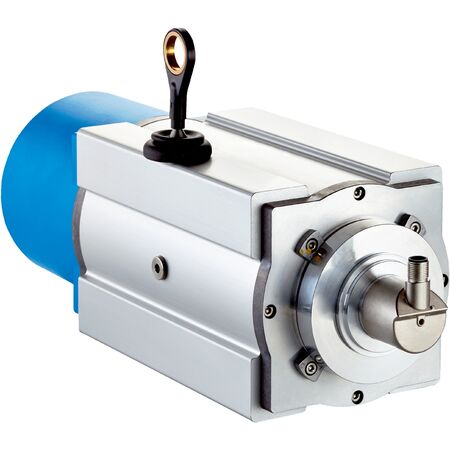

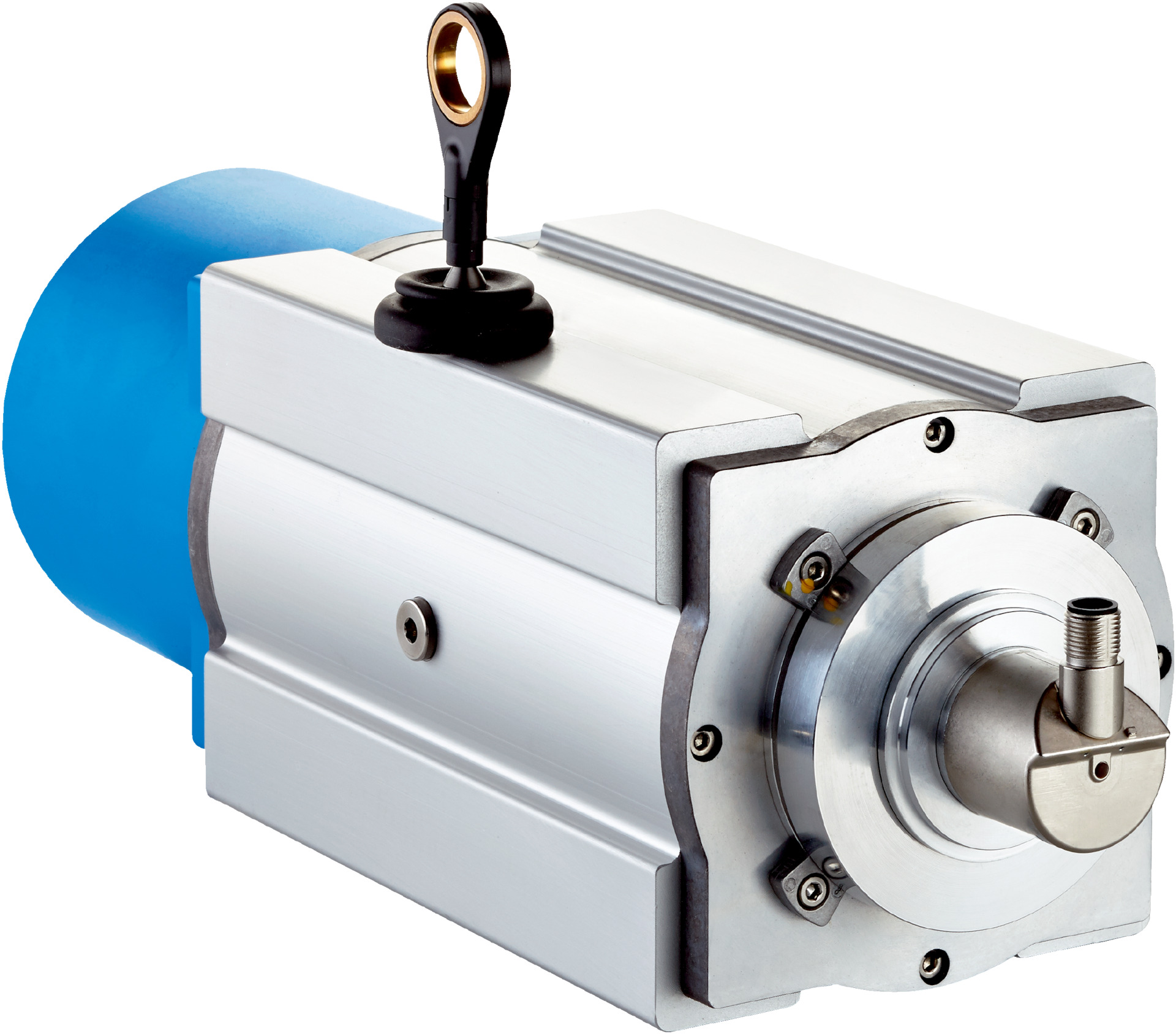

Wire Draw Sensor BTF13-C1QM3049 | 30m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Sensor BTF13-C1QM3049 is designed for precise position measurement in industrial automation, featuring a measurement range of up to 30 meters and a high resolution of 0.02 mm. With robust IP64 to IP67 protection ratings and a long life mechanism rated for approximately 1,000,000 cycles, this sensor is perfect for safety-related applications and machine control systems utilizing CANopen communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Weight: 6.32 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.32 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement range up to 30 m
- High resolution of 0.02 mm with excellent repeatability and linearity
- Robust aluminum and plastic housing with IP64 to IP67 protection ratings
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption of ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial sensor mounting to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine control systems with CANopen communication interface
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-C1QM3049 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
