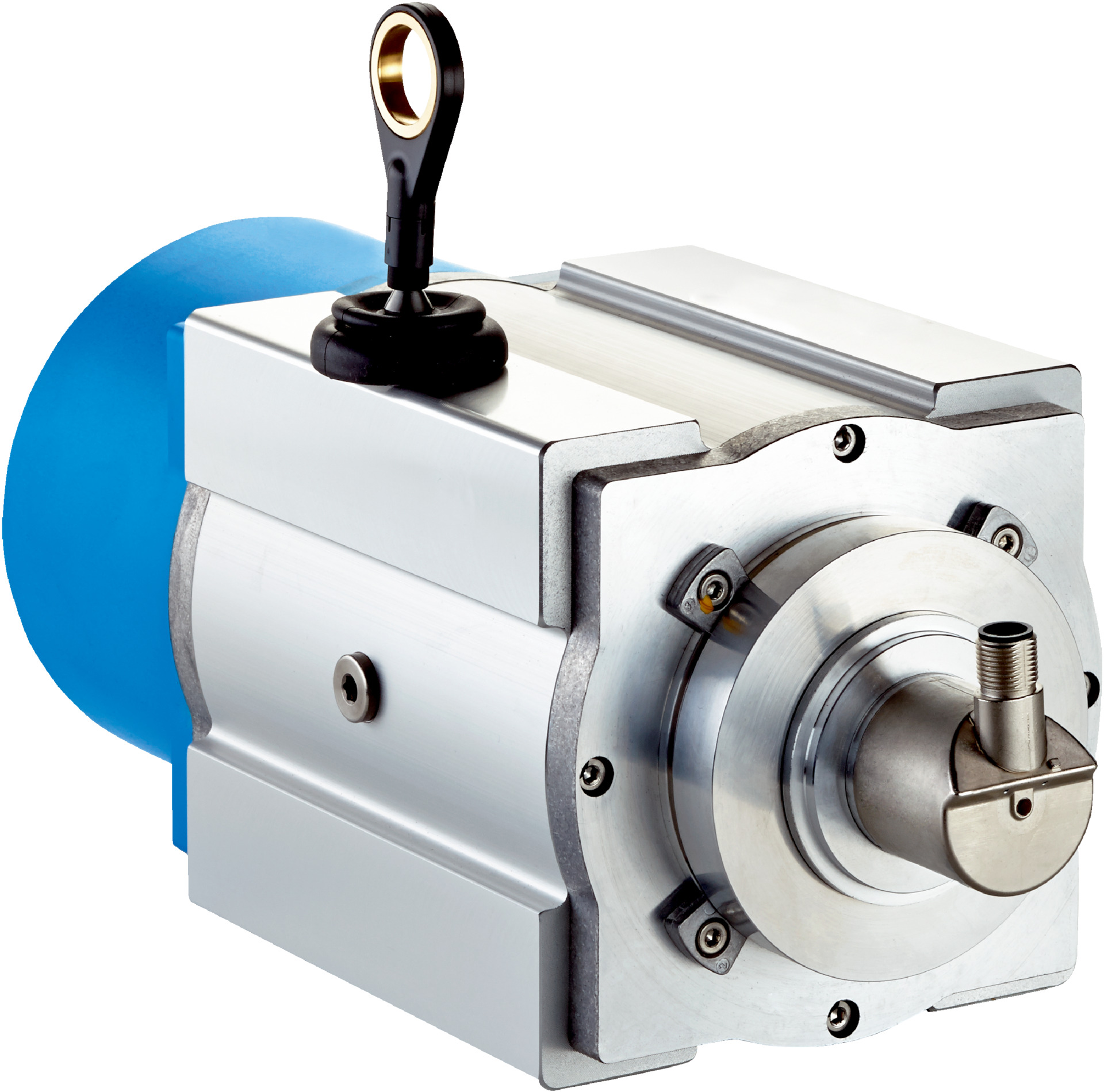

Wire Draw Sensor BTF13-J1QM2064 | 20m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Sensor BTF13-J1QM2064 offers a measurement range of up to 20 meters with a high resolution of 0.02 mm, making it ideal for industrial automation and safety-related applications. Designed for heavy machinery monitoring, this sensor features robust IP64 to IP67 protection and a long-lasting wire draw mechanism, ensuring reliable position feedback in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: SAE J1939
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin, universal
- Weight: 5.12 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.12 kg
Key Features
- Measurement range up to 20 m
- High resolution of 0.02 mm
- Repeatability and linearity within ±2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Highly flexible stainless steel measuring wire
- Programmable and configurable communication via SAE J1939 interface
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring reliable position feedback
- Heavy machinery monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
