Wire Draw Sensor BTF13-N1BM1099 | PROFINET Communication | 0.001 mm Resolution | IP64/IP67 Rated | by SICK

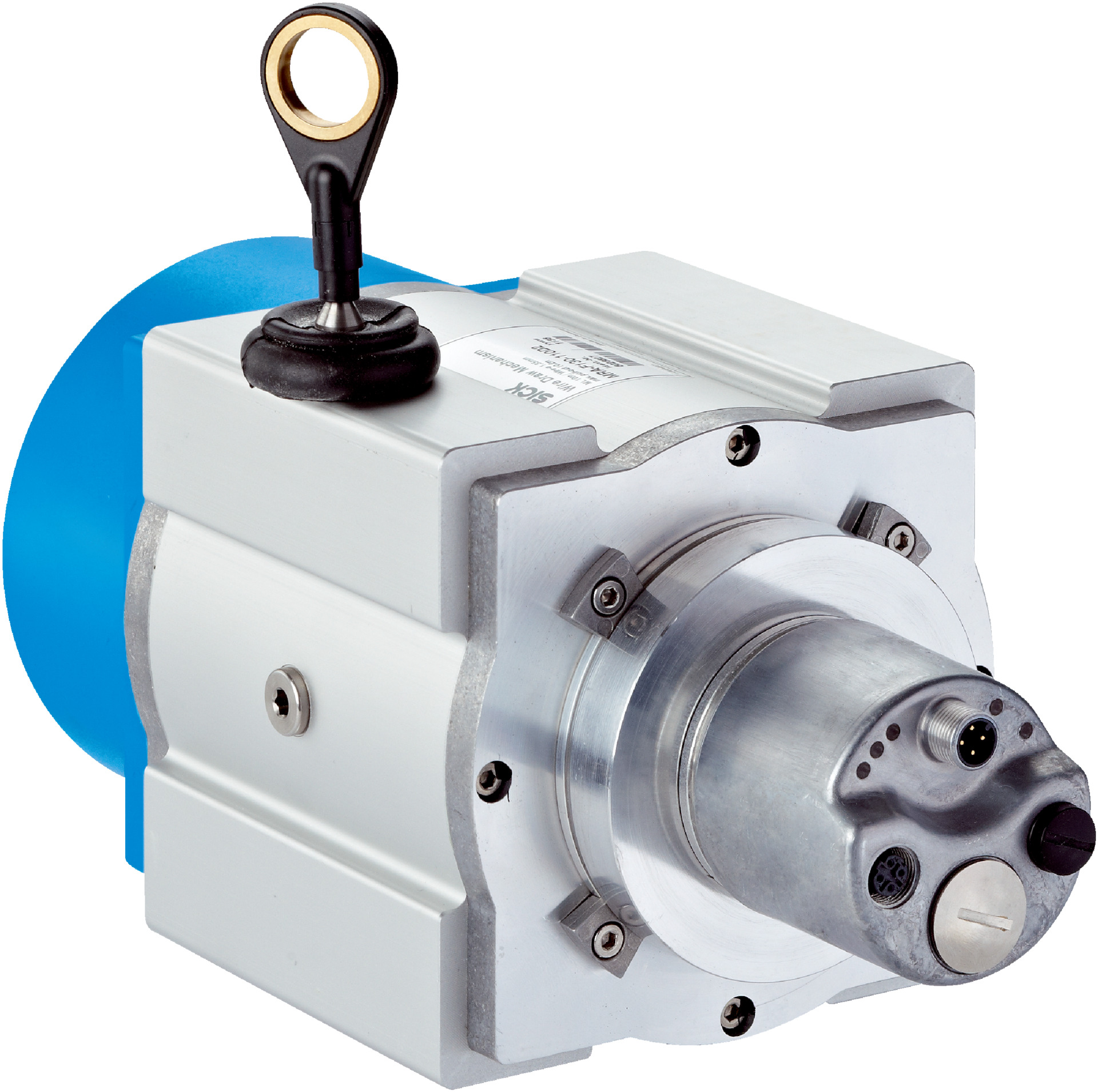

The Wire Draw Sensor BTF13-N1BM1099 is designed for precise position measurement in industrial automation, featuring a high resolution of 0.001 mm and PROFINET communication. With robust IP64/IP67 protection and a wide operating temperature range from -30 °C to +70 °C, this sensor is perfect for safety-related applications and machine monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.7 kg
Key Features
- Absolute encoder with PROFINET communication interface
- High resolution of 0.001 mm with repeatability ≤ 1.5 mm
- Robust aluminum and plastic housing with IP64/IP67 protection
- Measuring wire made of highly flexible stainless steel
- Spring return force between 10 N and 20 N
- Operating temperature range from -30 °C to +70 °C
- Power consumption ≤ 3 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET systems and safety-related equipment to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-N1BM1099 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
