Wire Draw Sensor BTF13-Q1RM1061 | Absolute Encoder | 10m Measurement Range | IP64 Rated | by SICK

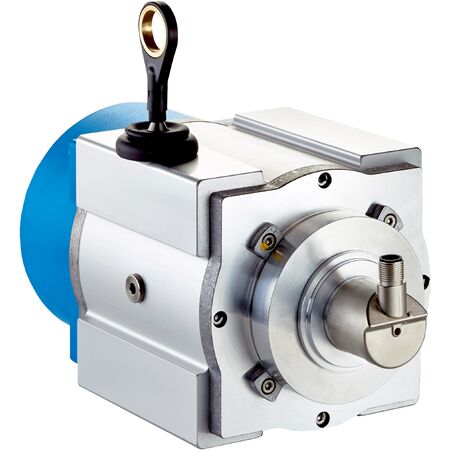

The Wire Draw Sensor BTF13-Q1RM1061 features an absolute encoder with a high measurement range of up to 10 meters and a resolution of 0.08 mm, making it ideal for precise position measurement in industrial automation. With robust IP64-rated housing and a long life mechanism of approximately 1,000,000 cycles, this sensor ensures reliable performance in safety-related monitoring and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.08 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Weight: 3.62 kg
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: –20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP64 (mechanic IP65, encoder IEC 60529)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.62 kg
Key Features
- Absolute encoder with IO-Link communication interface
- High measurement range up to 10 meters
- High resolution of 0.08 mm and repeatability ≤ 1.5 mm
- Robust aluminum and plastic housing with IP64/IP65 rating
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Process control requiring accurate wire draw length measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-Q1RM1061 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
