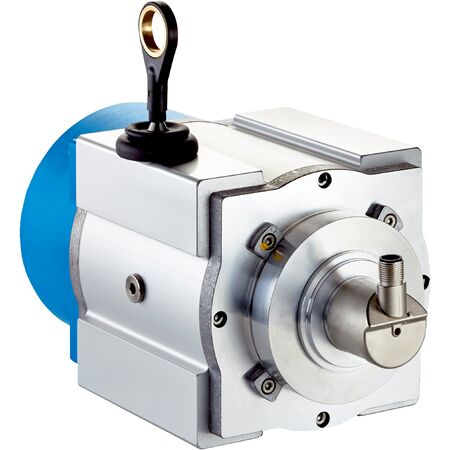

Wire Draw Sensor BTF13-Q1RM1S01 | Absolute Encoder | 10m Measurement Range | IP64 to IP67 Protection | by SICK
The Wire Draw Sensor BTF13-Q1RM1S01 is designed for precise linear position measurement in industrial automation. With a measurement range of up to 10 meters and an impressive resolution of 0.02 mm, it ensures high accuracy and repeatability. Built for robust applications, this sensor features an IP64 to IP67 enclosure rating, making it ideal for safety monitoring and process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.62 kg
Key Features
- Special device with pre-mounted joint ball 5318683
- Absolute encoder with IO-Link communication interface
- High measurement range up to 10 m
- High resolution of 0.02 mm and repeatability ≤ 1.5 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise linear position measurement
- Safety-related monitoring in machinery
- Process control systems requiring accurate wire draw measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-Q1RM1S01 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
