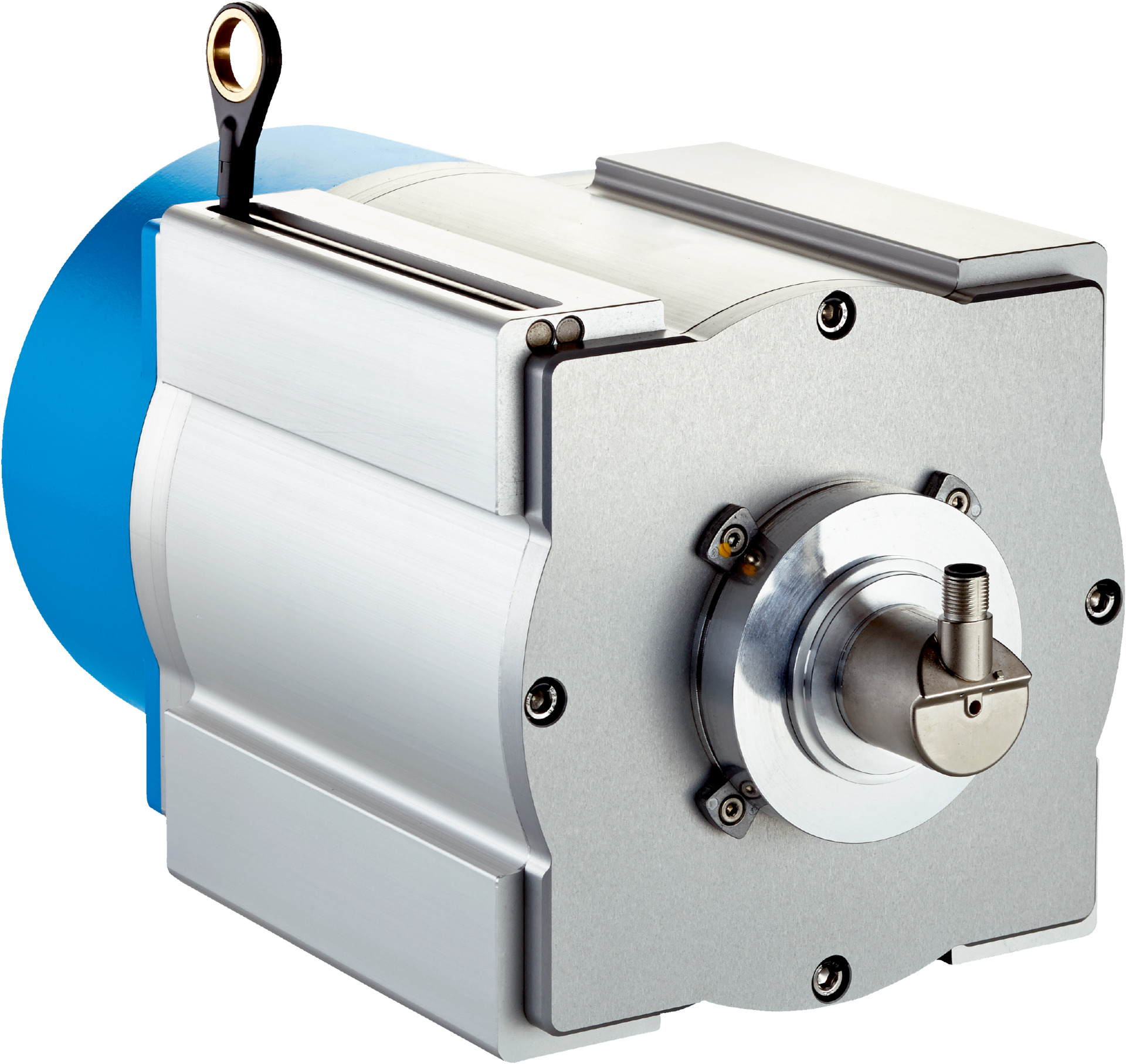

Wire Draw Sensor BTF19-J1QM6064 | 60m Measurement Range | 0.03mm Resolution | IP64 to IP67 Rated | by SICK
The Wire Draw Sensor BTF19-J1QM6064 offers a high measurement range of up to 60 meters and a remarkable resolution of 0.03 mm, making it ideal for precise length measurement in industrial automation. With robust IP64 to IP67 rated enclosure, it withstands harsh environments while ensuring reliable performance. Perfect for manufacturing processes and safety systems, this sensor is designed for longevity with a wire draw mechanism life of up to 1,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 60 m
- Resolution: 0.03 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: SAE J1939
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Weight: 16.62 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 16.62 kg
Key Features
- Absolute encoder with SAE J1939 communication interface
- High measurement range up to 60 meters
- High resolution of 0.03 mm with excellent repeatability and linearity
- Robust aluminum housing with anodized and nickel-plated finish
- IP64 to IP67 rated enclosure for harsh environments
- Programmable and configurable for versatile applications
- Long life wire draw mechanism with up to 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and safety systems
- Measurement and control in manufacturing processes
- Position and length measurement in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF19-J1QM6064 is available for immediate purchase, ideal for industrial automation and safety measurement applications.
