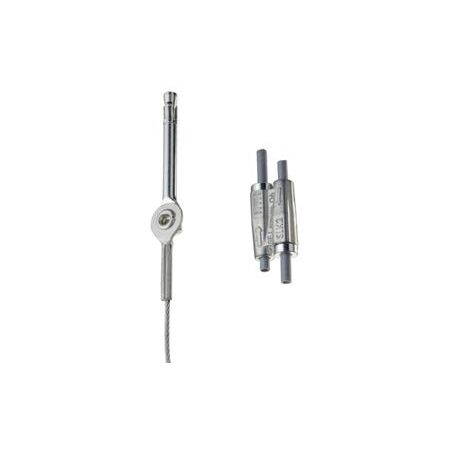

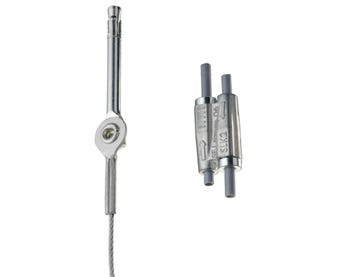

Wire Suspension Kit 2mm | 5m Length | Tool-Free Installation & Masonry Anchor | Electrogalvanized by Cabac
The CADDY Speed Link 2mm wire suspension kit by Cabac offers a quick, tool-free solution for installing suspended trays and ducted systems, including a masonry anchor and tensioner for secure mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CADDY Speed Link 2mm wire, 5m long with masonry anchor and tensioner
Brand: Cabac
SKU: SLK2L3WA6
Alternatively Known As: Speed Link Wire Suspension Kit, CADDY Wire Suspension System, Cable Suspension Kit with Masonry Anchor
Technical Specifications
- Material: Steel, Polypropylene, Zinc Alloy
- Finish: Electrogalvanized
- Rope Diameter: 2mm
- Load Rating: Rated to strength of the cable
- Max Angle of Entry: 90 degrees
- Drill Depth: 60mm
- Embed Depth: 55mm
- Drill Diameter: 6mm
- Dimensions (H x L x W): n/a mm x 5000mm x n/a mm
- Weight: 0.5 kg
Key Features
- Effortless and speedy installation of suspended trays or ducted systems
- Complete kit includes 6mm masonry anchor, catenary wire, and tensioning device
- Tool-free adjustment or removal of tension
- Anchor can be mounted vertically or horizontally
- Locking devices compatible only with nVent CADDY Speed Link wire spools of the same wire diameter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with masonry anchoring and wire suspension systems to ensure safety and compliance with load ratings.
Applications
- Suspended trays installation
- Ducted systems support
- Wire suspension in construction and building projects
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electrogalvanized finish provides corrosion resistance, extending product life and reducing waste
- Durable materials reduce the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The CADDY Speed Link 2mm wire suspension kit with masonry anchor and tensioner is available for immediate purchase, ideal for construction and building applications requiring secure suspended tray or ducted system installation.
