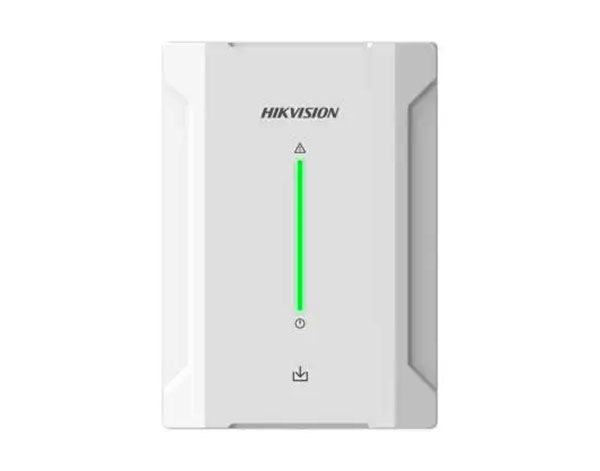

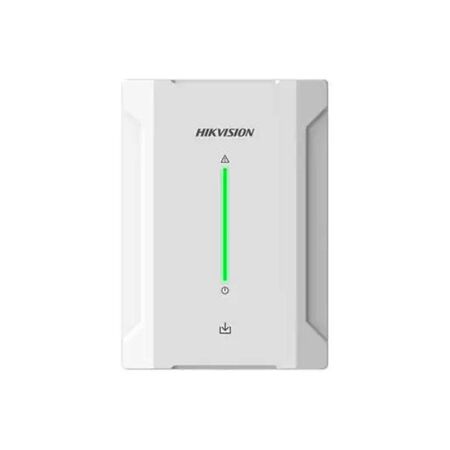

Wired Input Expander Hikvision

BRAND: Ness
SKU: 114-504
$92.80 List price: $123.80
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision wired input expander features wired zone inputs. Ideal for Hikvision alarm system installs.

Alternatively Known As: Hikvision Wired Zone Expander, Hikvision RS485 Input Expander, AX Hybrid Pro Input Expander

Technical Specifications
  • Alarm Inputs: 8 onboard wired zones
  • Outputs: 2 collector outputs for relay module control
  • Bus: 2 Speed-X bus connections; one panel input and one expander cascade output
  • Power Supply: 11–15 VDC, 1 A
  • Maximum Current: 119 mA at 12 VDC
  • Quiescent Current: 45 mA at 12 VDC
  • Detector Output: 9–12 VDC, maximum 500 mA
  • Zone Wiring: 3EOL connection supported; alarm 1 kΩ, tamper 1 kΩ, fault 2.2 kΩ
  • Detection: Alarm, tamper, masking, fault and short-circuit detection
  • Operating Temperature: -10°C to 40°C
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Enclosure Material: Plastic
  • Tamper Protection: Front and rear tamper detection
  • Dimensions (H x L x W): 155mm x 110mm x 32mm
  • Weight: 0.2525 kg
Key Features
  • Adds eight wired alarm zones to compatible Hikvision AX Hybrid Pro control panels
  • Supports Speed-X bus communication and cascading to another input expander
  • Supports 3EOL wiring for alarm, tamper and fault monitoring
  • Provides a dedicated power output for wired detectors
  • Supports alarm, tamper, masking, fault and short-circuit detection
  • Suitable for small to medium residential and commercial security installations
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security technician. Connect and configure the expander in accordance with the Hikvision installation manual, applicable electrical requirements and AS/NZS 2201.1 installation practices.
Applications
  • Expanding wired alarm zones in Hikvision AX Hybrid Pro systems
  • Residential security alarm installations
  • Retail, office and small commercial premises
  • Villa, hotel and similar small to medium security applications
  • Connection of wired door contacts, motion detectors and other alarm devices
Standards & Compliance
  • AS/NZS 2201.1:2007 is relevant to the design, installation, commissioning and maintenance of intruder alarm systems incorporating input expanders.
Environmental Benefits
  • Low-voltage operation with modest quiescent current helps limit energy consumption during continuous operation
  • Durable plastic enclosure supports long service life and reduced replacement waste
  • Expandable zone architecture can reduce the need to replace the main alarm panel when additional wired inputs are required
Warranty Information

Hikvision limited warranty: one year from the date of purchase against defects in materials and workmanship, subject to regional terms, proof of purchase and installation in accordance with the user manual.

Available Now

Available through Hikvision and authorised Australian security-system distributors, subject to regional product range and stock availability.
