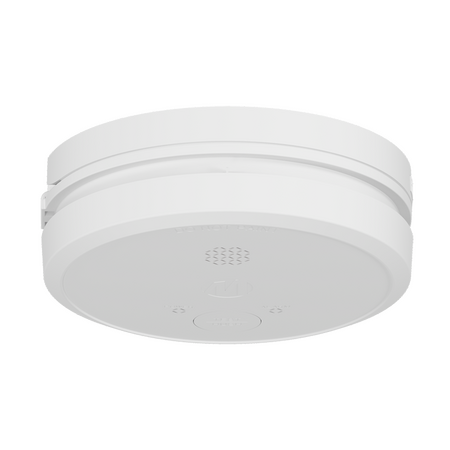

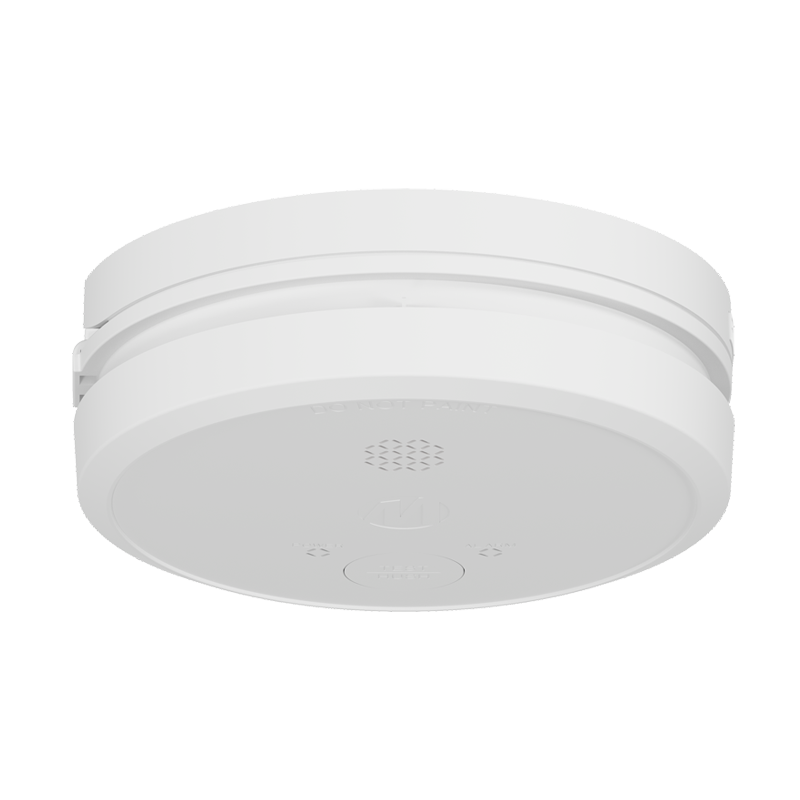

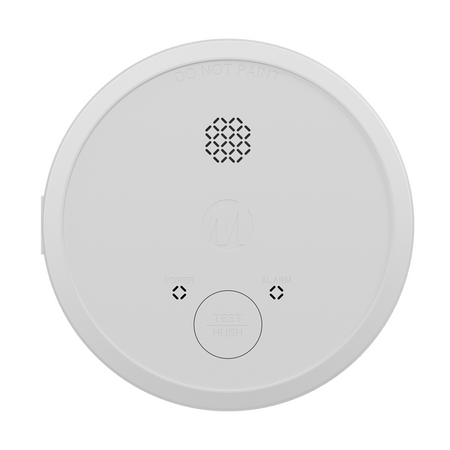

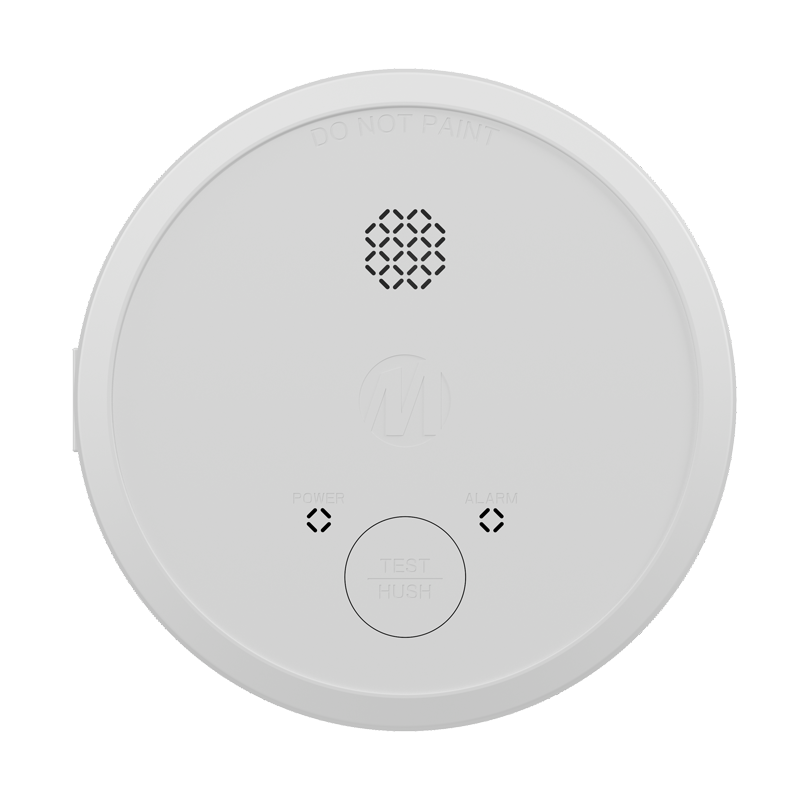

Type A Wired Interconnect Photoelectric Smoke Detector | 240V | Hardwired for 24 Alarms | 85dB Sound Output | by Matelec
The Type A Wired Interconnect Photoelectric Smoke Detector operates at 240V and is designed for seamless interconnection of up to 24 alarms, making it ideal for both residential and commercial fire safety applications. With a powerful 85dB sound output and included 9V battery, it ensures reliable performance and peace of mind. Its dual spectrum technology minimizes nuisance alarms, while the easy installation features make it a practical choice for any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 240V
- Battery: 9V alkaline included
- Sound Level Output: 85dB at 3 meters
- Wireless Frequency: 433.42 MHz
- Temperature Range: 0 - 40°C
- Humidity Range: 5% - 93%
- Conforms to AS3786:2023 and ISO 12239:2021
- Dimensions (H x L x W): 49mm x 133mm x 133mm
- Weight: 0.2 kg
Key Features
- Hardwired interconnection for up to 24 alarms
- 9V battery included
- Dual spectrum to reduce nuisance alarming
- Separate hush/test button
- Hinged detachable base with easy push button open
- ‘No Battery’, ‘No Close’ feature
- Loop terminal provided
- Mounting holes line up with standard plaster brackets
- Base recessed for mains cabling - no need for large ceiling cut-away
- LED indicators
- ‘Low Battery’ audible warning
- Improved resilience to EMI interference
- Suitable for wall or ceiling mounting
- 1- or 10-year battery backup
- Sound level output: 85dB@3m
Professional Installation Requirements
- Professional installation by a licensed electrician or qualified fire safety technician is recommended to ensure proper interconnection and compliance with safety standards.
Applications
- Residential: Homes, apartments
- Commercial: Offices, retail spaces
- General: Wall or ceiling mounting for fire safety
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Long battery life reduces battery waste.
- Energy-efficient operation minimizes power consumption.
Warranty Information
7-year warranty.
Available Now
The Matelec Type A Wired Interconnect Photoelectric Smoke Detector - 240V is available for immediate purchase, ideal for residential and commercial fire safety applications.
