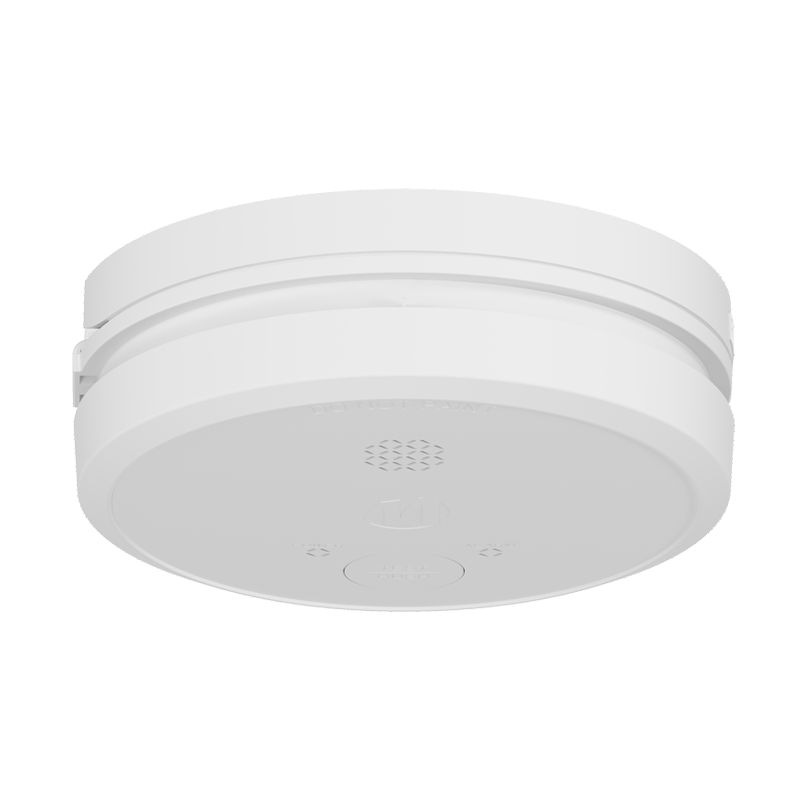

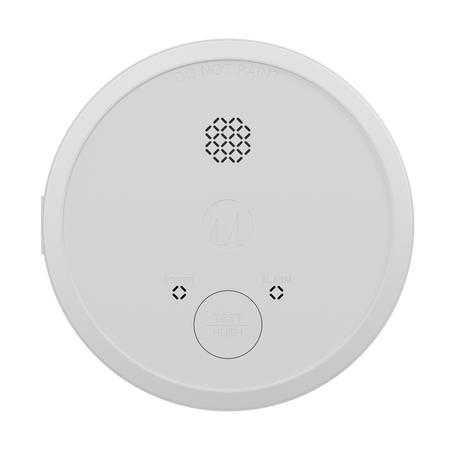

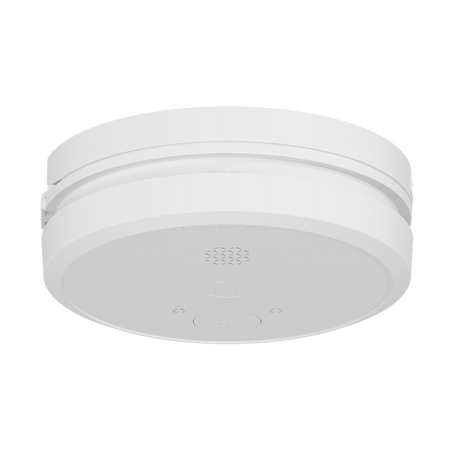

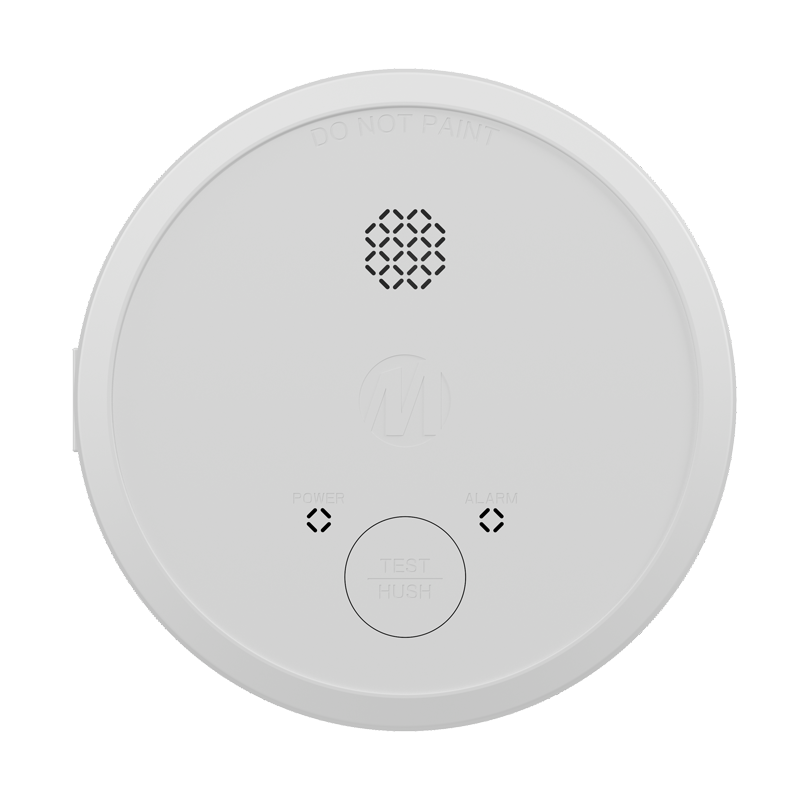

Type A Wired Interconnect Photoelectric Smoke Detector | 240V | Hardwired for 24 Alarms | 85dB Sound Output | by Matelec
Type A Wired Interconnect Photoelectric Smoke Detectors are designed for optimal fire safety in residential and commercial settings. With a hardwired interconnection for up to 24 alarms and a powerful 85dB sound output, these detectors ensure reliable performance. Ideal for homes and offices, they feature a 9V battery backup and dual spectrum technology to minimize false alarms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 240V
- Battery: 9V included, 1- or 10-year lithium battery backup
- Sound Level Output: 85dB at 3 meters
- Wireless Frequency: 433.42 MHz
- Temperature Range: 0 - 40°C
- Humidity Range: 5% - 93%
- Conforms to AS3786:2023 and ISO 12239:2021
- Dimensions (H x L x W): 49mm x 133mm x 133mm
- Weight: 0.2 kg
Key Features
- Hardwired interconnection for up to 24 alarms
- 9V battery included
- Dual spectrum to reduce nuisance alarming
- Separate hush/test button
- Hinged detachable base with easy push button open
- ‘No Battery’, ‘No Close’ feature
- Loop terminal provided
- Mounting holes line up with standard plaster brackets
- Base recessed for mains cabling - no need for large ceiling cut-away
- LED indicators
- ‘Low Battery’ audible warning
- Improved resilience to EMI interference
- Suitable for wall or ceiling mounting
- 1- or 10-year battery backup
- Sound level output: 85dB@3m
Professional Installation Requirements
- Professional installation by a licensed electrician or qualified fire safety technician is recommended to ensure proper interconnection and compliance with fire safety regulations.
Applications
- Residential: Homes, apartments
- Commercial: Offices, retail spaces
- General: Wall or ceiling mounting for fire safety
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Long-life lithium battery reduces battery waste.
- Energy-efficient operation minimizes power consumption.
Warranty Information
7-year warranty.
Available Now
The Matelec Type A Wired Interconnect Photoelectric Smoke Detector - 240V is available for immediate purchase, ideal for residential and commercial fire safety applications.
