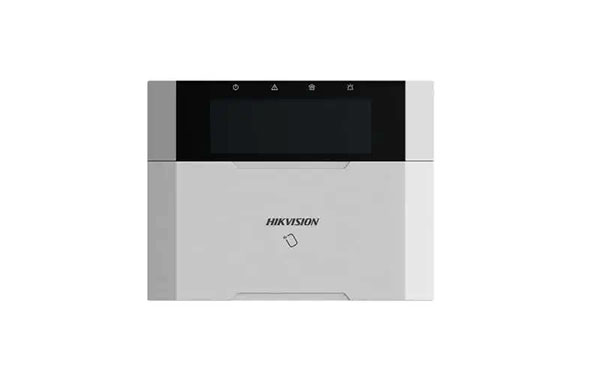

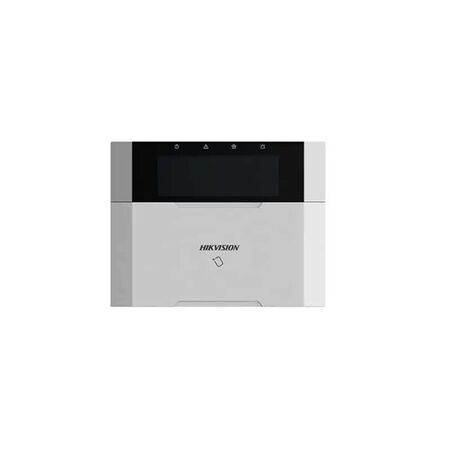

Wired Keypad Hikvision

BRAND: Ness
SKU: 114-501
$170.20 List price: $226.90
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision wired keypad features a wired connection. Ideal for Hikvision alarm system installs.

Alternatively Known As: Hikvision DS-PK1-LRT-HWE Wired Keypad, Hikvision DS-PK1-LRT-HWB Wired Keypad, Hikvision AX Pro Wired Keypad

Technical Specifications
  • Compatible Systems: Hikvision AX Hybrid Pro control panels
  • Communication: Speed-X bus; HWE variant also supports RS-485
  • Power Supply: 12 V DC
  • Power Consumption: 0.972–0.984 W quiescent; 1.32–1.33 W maximum
  • Keypad: Numeric keys 0–9, *, #, plus eight function keys
  • Display: LCD screen
  • Tag Reader: Built-in
  • Alarm Inputs: 2 on-board inputs
  • Alarm Output: 1 on-board output
  • Indicators: Four status indicators and white keypad backlight
  • Tamper Protection: Rear-cover tamper switch
  • RF Frequency: 433 MHz for DS-PK1-LRT-HWB; 868 MHz for DS-PK1-LRT-HWE
  • Operating Temperature: -10 °C to 55 °C
  • Operating Humidity: 10% to 90%
  • Manufacturer Dimensions: 150 mm W × 115 mm H × 28 mm D ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000601/S000000937/S000000941/OFR001816/M000053265/Data_Sheet/DS-PK1-LRT-HWEHWB_Datasheet.pdf?utm_source=openai))
  • Dimensions (H x L x W): 115mm x 28mm x 150mm
  • Weight: 0.35 kg
Key Features
  • Wired keypad for Hikvision AX Hybrid Pro alarm systems
  • LCD screen for system status and menu operation
  • Integrated tag reader for authorised user access
  • Away arm, stay arm, disarm, alarm output and query functions
  • Two on-board alarm inputs and one alarm output
  • Rear-cover tamper detection and integrated buzzer
  • Available in 433 MHz and 868 MHz regional variants
  • White wall-mountable housing
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security or electrical installer. Connect to the compatible Hikvision alarm control panel using the specified bus wiring and configure the keypad address before commissioning.
Applications
  • Residential intruder alarm systems
  • Commercial security alarm installations
  • AX Hybrid Pro alarm system arming and disarming points
  • User access and alarm status monitoring at entry doors or internal control locations
Standards & Compliance
  • AS/NZS 2201.1:2007 may apply to the design, installation, commissioning and maintenance of the complete intruder alarm system; Hikvision product-specific compliance was not stated in the available documentation. ([intertekinform.com](https://www.intertekinform.com/en-gb/standards/as-nzs-2201-1-2007-364548/?utm_source=openai))
Environmental Benefits
  • Low operating power consumption of approximately 1.33 W maximum helps minimise energy use. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000601/S000000937/S000000941/OFR001816/M000053265/Data_Sheet/DS-PK1-LRT-HWEHWB_Datasheet.pdf?utm_source=openai))
  • Reusable wired design avoids routine battery replacement and associated battery waste.
  • Durable electronic keypad construction can extend service life and reduce replacement waste when maintained correctly.
Warranty Information

Hikvision Australia warranty support is subject to the applicable product warranty terms, authorised supply channel and proof of purchase. The available Hikvision RMA policy does not state a universal warranty period for this keypad; confirm the applicable period with the authorised Australian distributor. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy.pdf?utm_source=openai))

Available Now

Available through Hikvision and authorised Australian security-system distributors, subject to regional model and stock availability.
