Wired PIR Motion Detector AJAX MOTIONPROTECT FIBRA | 12m Detection Range | IP50 & IK04 Rated | by Dicker Data
The AJAX MOTIONPROTECT FIBRA is a wired PIR motion detector designed for effective security monitoring. With a detection range of up to 12 meters and a horizontal angle of 88.5°, it’s perfect for residential, commercial, and industrial applications. Featuring pet immunity and temperature compensation, this reliable sensor ensures optimal performance in various environments, making it an essential component of your security system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wired PIR Motion Detector AJAX MOTIONPROTECT FIBRA | 12m Detection Range | IP50 & IK04 Rated | by Dicker Data
Brand: Dicker Data
SKU: 44405.09.WH1
Alternatively Known As: Wired PIR Motion Detector, Ajax Fibra Motion Sensor, IR Motion Detector for Security Systems
Technical Specifications
- Sensing Element: 1 × PIR sensor

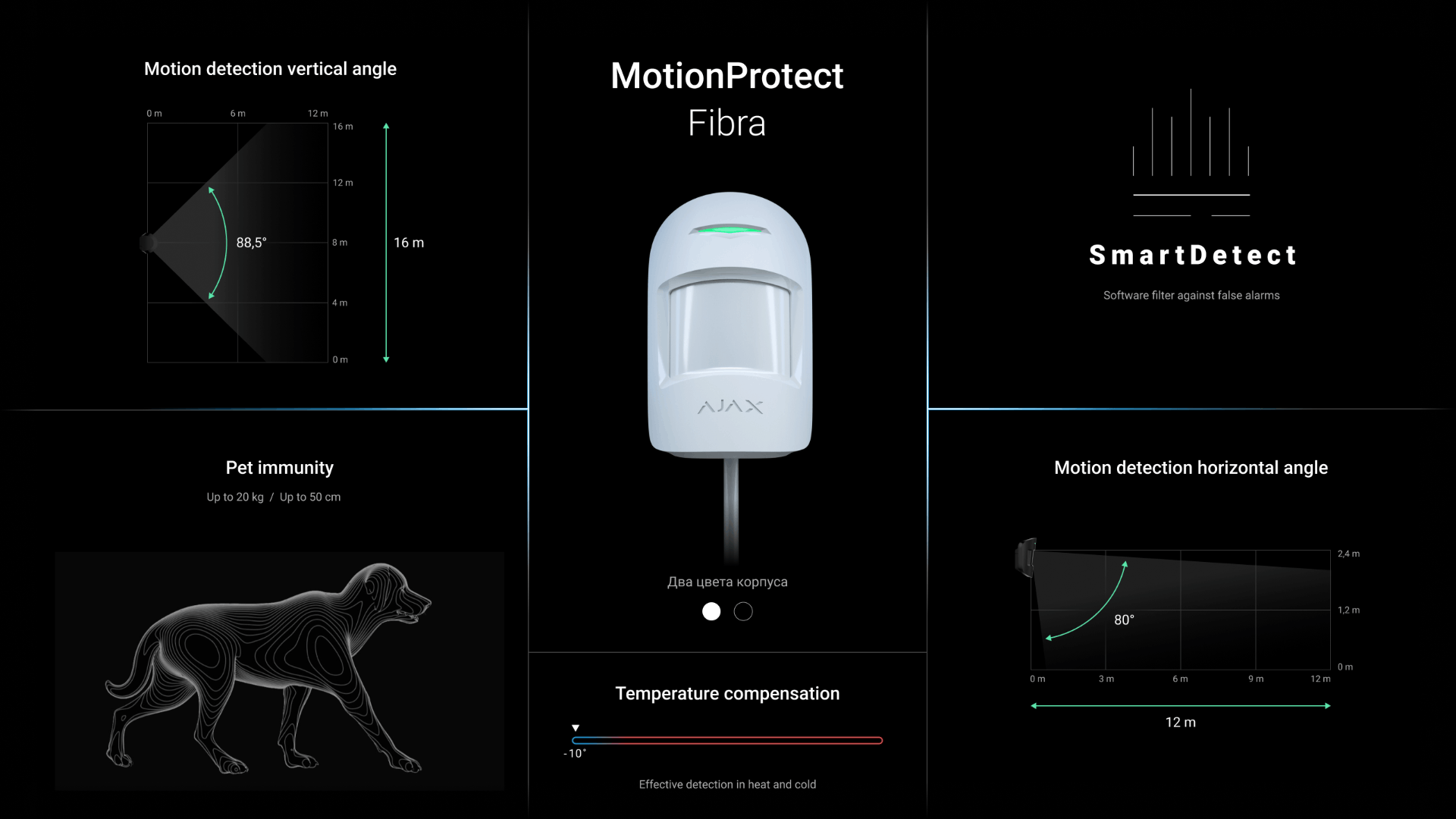

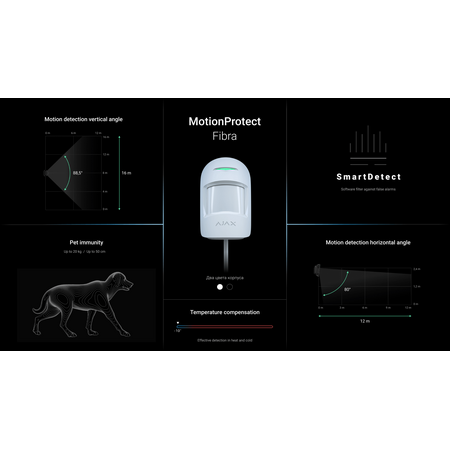

- Motion Detection Distance: Up to 12 meters (installed at 2.4 meters height)
- Motion Detection Angles: Horizontal — 88.5°
- Motion Detection Speed: From 0.3 to 2.0 m/s
- Sensitivity: 3 levels
- Pet Immunity: Up to 20 kg, up to 50 cm height
- Temperature Compensation: Effective detection within −10°C to +40°C
- Power Supply: Fibra line power supply (5−30 V⎓, up to 25 mW)
- Line Connection: 4-core cable
- Fibra Line Length: Up to 2,000 meters (using U/UTP cat.5 twisted pair)
- Operating Temperature Range: From −10 °C to +40 °C
- Operating Humidity: Up to 75%
- Protection Class: IP50, IK04
- Dimensions (H x L x W): 110mm x 50mm x 65mm
- Weight: 0.088 kg
Key Features
- Wired IR motion detector with 1 × PIR sensor
- Motion detection distance up to 12 meters at 2.4 meters height
- Horizontal detection angle of 88.5°
- Motion detection speed range from 0.3 to 2.0 m/s
- Three sensitivity levels with pet immunity up to 20 kg and 50 cm height
- Temperature compensation for effective detection from −10°C to +40°C
- Low power consumption up to 0.045 W at peak
- Secure two-way communication with block encryption and device authentication
- Supports connection of multiple devices on a single Fibra line up to 2000 meters
- IP50 and IK04 protection class
- SmartBracket mounting panel for easy installation
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper wiring and configuration.
Applications
- Security systems for residential properties
- Commercial building security
- Industrial facility monitoring
- Integration with Ajax security systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage and environmental impact
- Supports extended wired connectivity reducing the need for additional power sources
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
AJAX MOTIONPROTECT FIBRA WHITE is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial environments.
