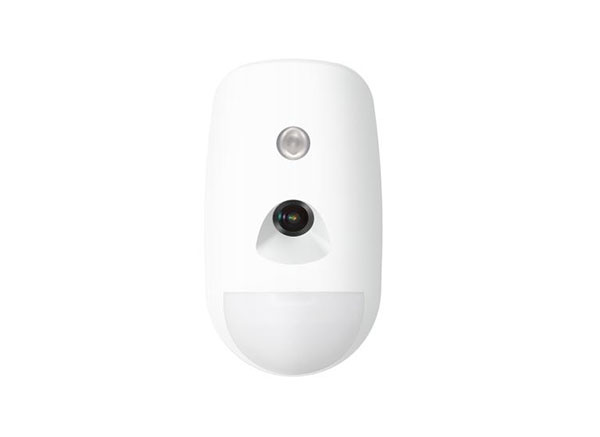

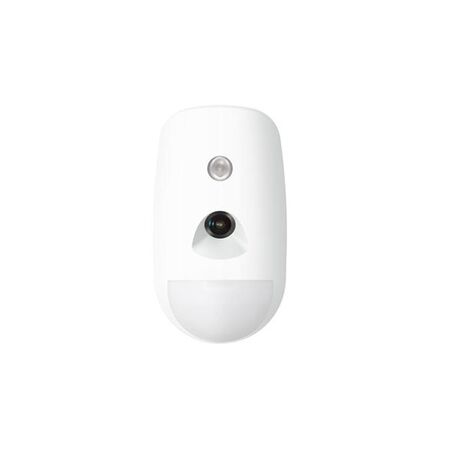

Wired PIRCAM Detector Hikvision
Hikvision PIRCAM detector features a wired connection and PIR camera verification. Ideal for Hikvision alarm system installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wired PIRCAM Detector, Wired PIR Camera Detector, Video-Verified PIR Detector
Technical Specifications
- Detection Method: Passive infrared with video verification
- Detection Range: 12 m
- Detection Angle: 85.9°
- Detection Zones: 52
- Detectable Speed: 0.3–2 m/s
- Sensitivity: Automatic, high and pet modes
- Pet Immunity: Up to 30 kg
- Camera Field of View: 109° horizontal, 60° vertical
- Image Resolution: 1920 × 1080, 1280 × 720 or 640 × 480 JPEG
- Illumination: Infrared, up to 12 m
- Transmission: Wired Speed-X bus
- Transmission Security: AES-128 encryption
- Transmission Range: Up to 1 km in free space
- Power Supply: 9–16 VDC, 12 VDC typical
- Maximum Current Consumption: 100 mA
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90%
- Mounting Height: 1.8–2.4 m
- Security Classification: EN 50131-2-2:2017, Security Grade 2, Environment Class II
- Dimensions (H x L x W): 130.5mm x 73mm x 56.7mm
- Weight: 0.195 kg
Key Features
- Integrated PIR sensor and camera for visual alarm verification
- Wired connection for Hikvision Speed-X alarm systems
- 12 m detection range with 85.9° coverage
- Pet immunity up to 30 kg
- Front and rear tamper protection
- Digital temperature compensation and sealed optics
- Creep-zone protection
- Automatic day/night switching with infrared illumination
- Blue alarm and orange fault LED indicators
- Suitable for indoor installation
Professional Installation Requirements
- Installation should be performed by a suitably qualified security installer. Connect to a compatible Hikvision alarm control panel using the manufacturer's wiring, addressing and commissioning procedures; observe applicable low-voltage wiring and intruder-alarm installation requirements.
Applications
- Indoor Hikvision alarm system installations
- Residential intrusion detection
- Commercial and light-industrial security systems
- Video-verified alarm detection where visual confirmation of PIR events is required
Standards & Compliance
- AS 2201.3:1991 is the relevant Australian standard for internal intruder alarm detection devices; product documentation identifies EN 50131-2-2:2017 Security Grade 2 and does not confirm AS 2201.3 certification.
Environmental Benefits
- Low-voltage DC operation limits operating energy demand compared with mains-powered detection equipment
- Video verification can help reduce false alarm responses and unnecessary site attendance
- Durable sealed optics and digital temperature compensation support a longer service life, reducing replacement waste
Warranty Information
Hikvision Australia warranty support is provided through authorised distribution channels. A detector-specific warranty term was not identified; Hikvision's published five-year programme applies to listed premium project-oriented product series and does not list this detector.
Available Now
Available through Hikvision and authorised Australian security-system distributors.
