Wired Security Siren AJAX StreetSiren DoubleDeck Fibra | IP54 Rated | Adjustable Volume 85-113 dB | by AJAX
The AJAX StreetSiren DoubleDeck Fibra is a wired security siren designed for both indoor and outdoor use, featuring adjustable sound volume from 85 dB to 113 dB and LED light notifications. Ideal for residential, commercial, and industrial security systems, this siren ensures reliable alarm notifications with tamper protection and a rechargeable battery, making it a smart choice for security service providers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wired Security Siren AJAX StreetSiren DoubleDeck Fibra | IP54 Rated | Adjustable Volume 85-113 dB | by AJAX
Brand: AJAX
SKU: 82401.61.BL3
Alternatively Known As: Wired Security Siren, Outdoor Security Siren, Ajax Fibra Siren, DoubleDeck Siren, Tamper-Proof Security Siren
Technical Specifications
- Notification type: Sound and light (LEDs)
- Sound volume: 85 dB to 113 dB at 1 meter (adjustable)
- Alarm duration: 3 seconds to 3 minutes
- Piezo annunciator frequency: 3.5 ± 0.5 kHz
- Protection: Tamper switch
- Power supply: Fibra line 7−27 V⎓, up to 67 mA
- Line connection: 4-core cable
- Fibra line length: Up to 2000 meters with U/UTP cat.5 cable
- Battery: LTO 2.4 V rechargeable, 1500mAh pre-installed
- Body protection level: IP54
- Installation: Indoors/outdoors
- Operating temperature: -25°C to +50°C
- Operating humidity: Up to 95%
- Service life: 10 years
- Dimensions (H x L x W): 58mm x 198.5mm x 198.5mm
- Weight: 0.575 kg
Key Features
- Wired siren with sound and LED light notifications
- Adjustable alarm volume from 85 dB to 113 dB
- Alarm duration adjustable from 3 seconds to 3 minutes
- Tamper switch protection against dismounting and sabotage
- Fibra wired protocol for secure, encrypted communication up to 2 km

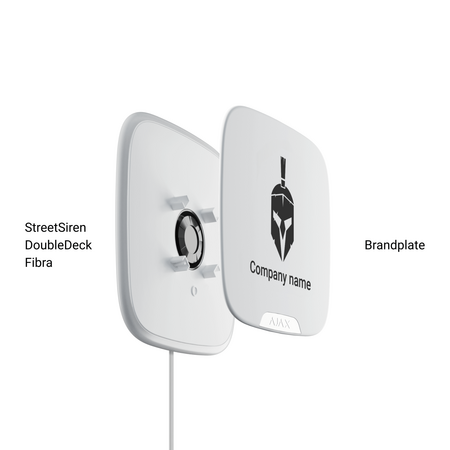

- Customizable branded faceplate for security service providers
- IP54 rated for outdoor and indoor installation
- Pre-installed rechargeable LTO 2.4 V battery with 1500mAh capacity
- Operating temperature range from -25°C to +50°C
- Supports up to 95% operating humidity
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper wiring and compliance with electrical standards.
Applications
- Outdoor and indoor security alarm notification
- Security service advertising with customizable front panel
- Residential, commercial, and industrial security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Rechargeable battery reduces waste from disposable batteries
- Durable design with 10 years service life minimizes replacement frequency
Warranty Information
2 years warranty from Ajax Systems Manufacturing, excluding the pre-installed battery.
Available Now
The AJAX StreetSiren DoubleDeck Fibra Wired Security Siren is available for immediate purchase, ideal for enhancing security and advertising for security service providers.
