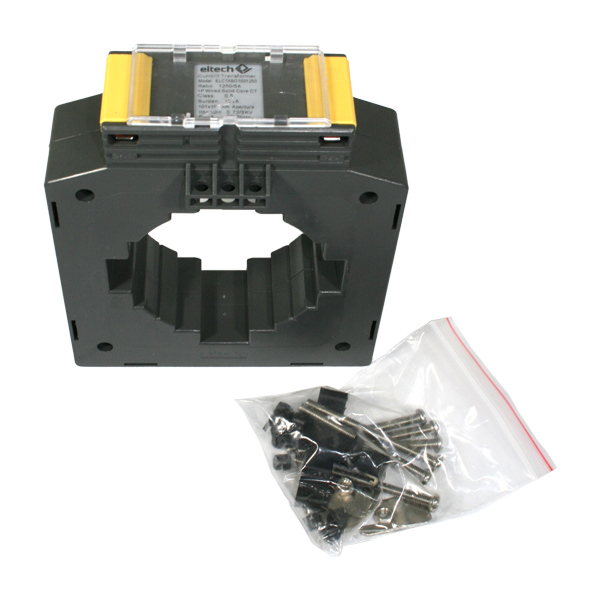

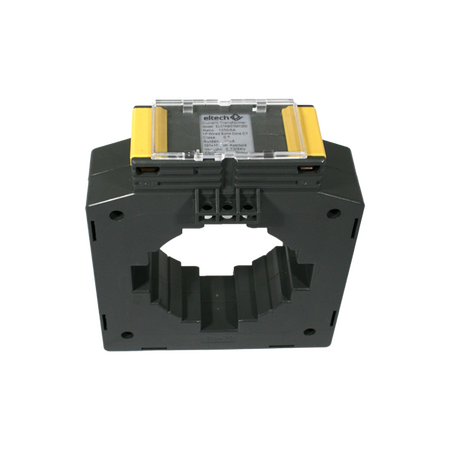

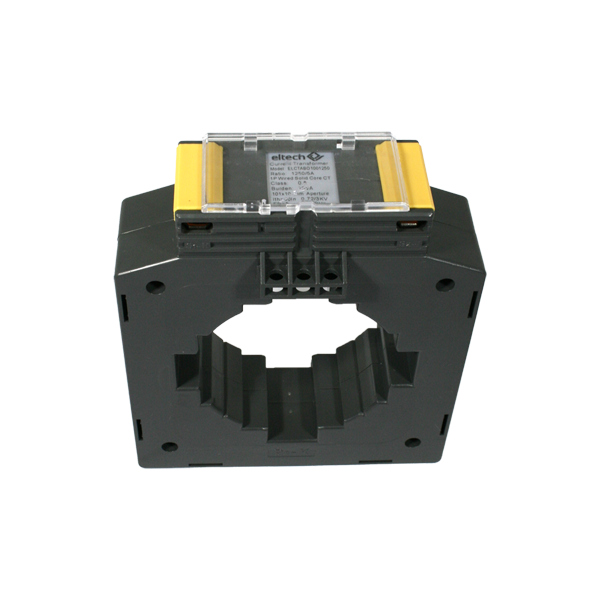

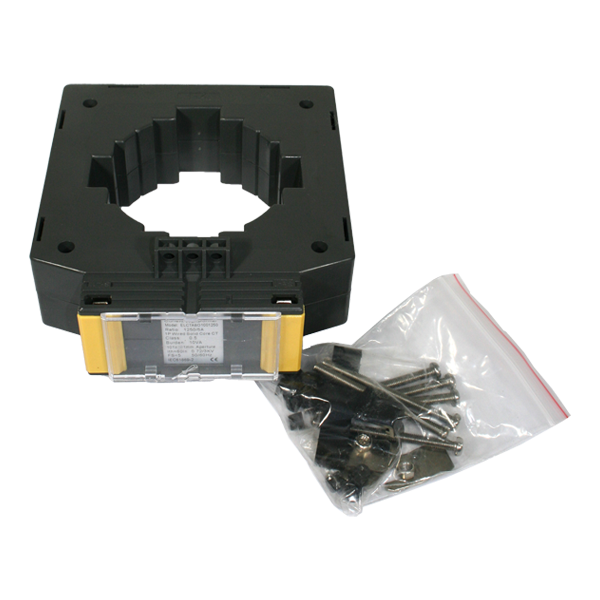

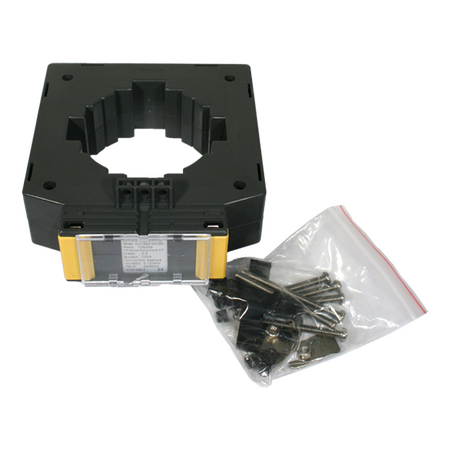

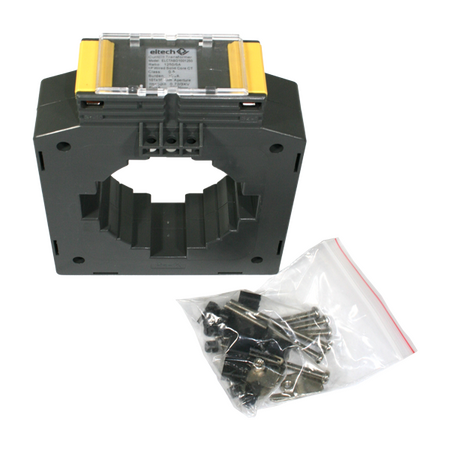

Wired Solid Core Current Transformer 1250A | Class 0.5S Accuracy | 101mm Aperture | 1P by Eltech
Wired solid core current transformer rated for 1250A with Class 0.5S accuracy and a 101mm aperture—ideal for power quality monitoring and electrical metering. Built for industrial and commercial systems, it ensures precise current measurement and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Primary Current: 1250A
- Secondary Current: 5A
- Accuracy Class: 0.5S
- Core Type: Solid Core
- Aperture Size: 101 x 101mm
- Phase: Single (1P)
- Dimensions (H x L x W): 101mm x 50mm x 101mm
- Weight: 2 kg
Key Features
- Single phase (1P) wired solid core design
- Class 0.5S accuracy for precise current measurement
- 101 x 101mm aperture suitable for large conductor sizes
- Rated for 1250A primary current
Professional Installation Requirements
- Installation by a qualified electrician or technician is required to ensure safety and compliance with electrical standards.
Applications
- Power quality monitoring
- Electrical metering and protection
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60044.1 – Instrument Transformers
Environmental Benefits
- Enables accurate energy monitoring to optimize power usage and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty terms.
Available Now
The Eltech 1250/5A 1P Wired Solid Core Current Transformer is available now for immediate purchase. Ideal for power quality monitoring and electrical metering in industrial and commercial settings.
