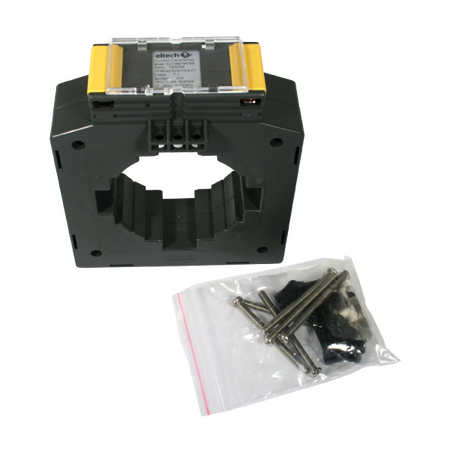

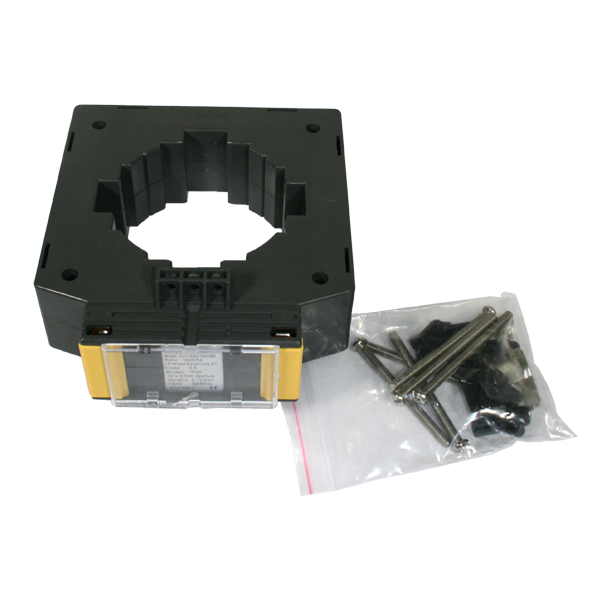

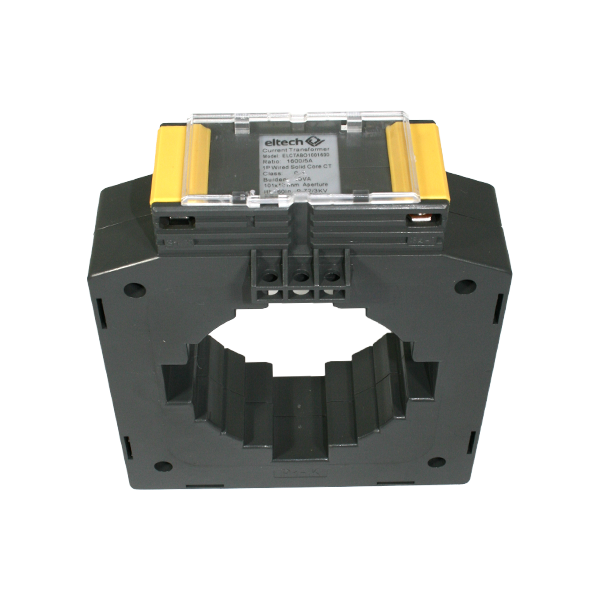

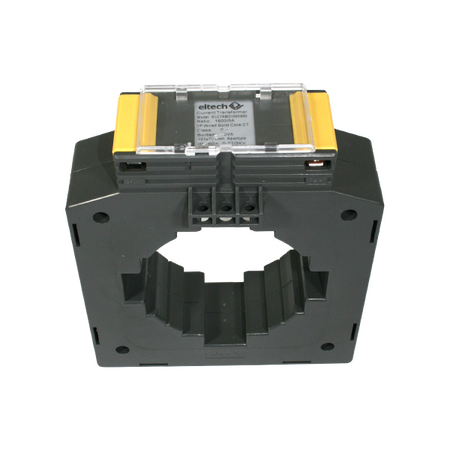

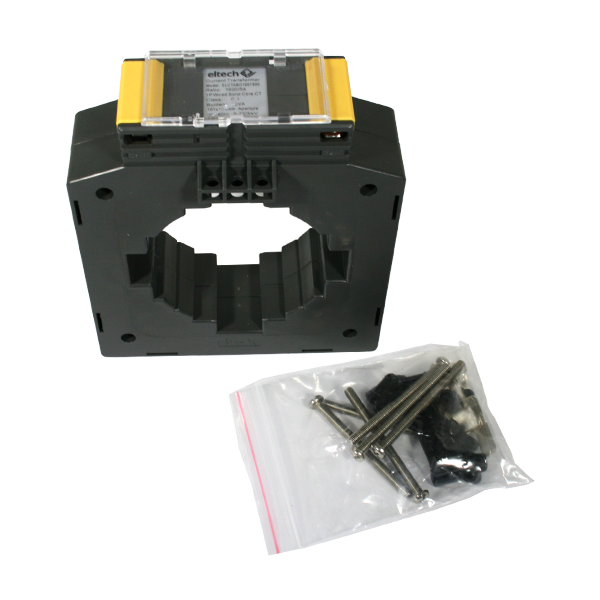

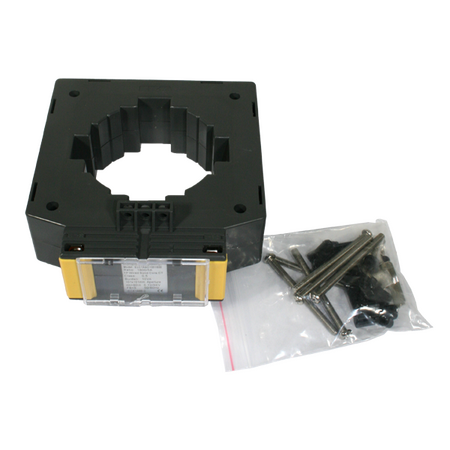

Wired Solid Core Current Transformer 1600/5A | Class 0.5S Accuracy | 101mm Aperture | Eltech
Wired solid core current transformer rated for 1600A primary current and featuring Class 0.5S accuracy—ideal for power quality monitoring and electrical metering. Built for industrial and commercial systems, with a 101mm aperture for large conductors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1600/5A 1P Wired Solid Core CT Class 0.5S 101 x 101mm Aperture
Brand: Eltech
SKU: ELCTABO1001600
Alternatively Known As: Current Transformer 1600A, CT 1600/5A, Solid Core CT, Wired Current Transformer
Technical Specifications
- Type: Single Phase (1P) Wired Solid Core Current Transformer
- Accuracy Class: 0.5S
- Primary Current: 1600A
- Secondary Current: 5A
- Aperture Size: 101 x 101mm
- Dimensions (H x L x W): 120mm x 50mm x 120mm
- Weight: 2 kg
Key Features
- Single phase (1P) wired solid core design
- Class 0.5S accuracy for precise current measurement
- 101 x 101mm aperture suitable for large conductor sizes
- Rated for 1600A primary current
Professional Installation Requirements
- Installation by a qualified electrician or electrical engineer is required to ensure safety and compliance with electrical standards.
Applications
- Power quality monitoring
- Electrical metering and protection
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60044.1 – Instrument Transformers
Environmental Benefits
- Enables accurate energy monitoring to optimize power usage and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech 1600/5A 1P Wired Solid Core Current Transformer is available now for immediate purchase. Ideal for power quality monitoring and electrical metering in industrial and commercial settings.
