Trade Discount 17%

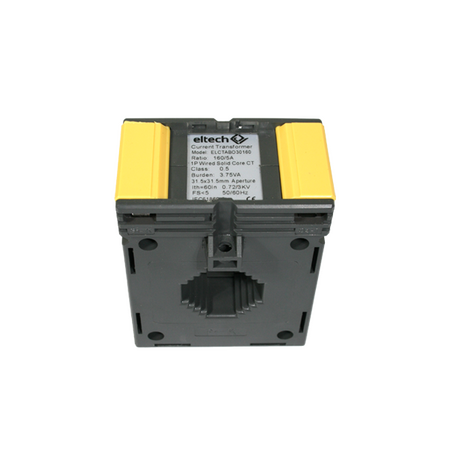

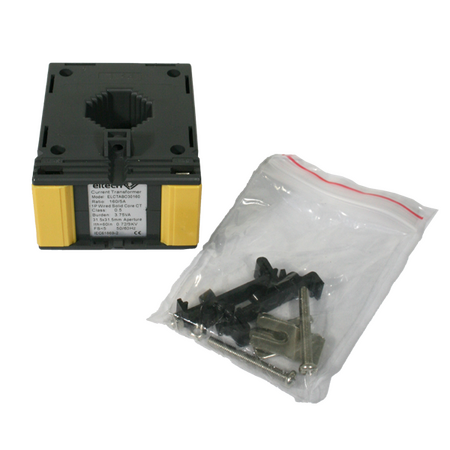

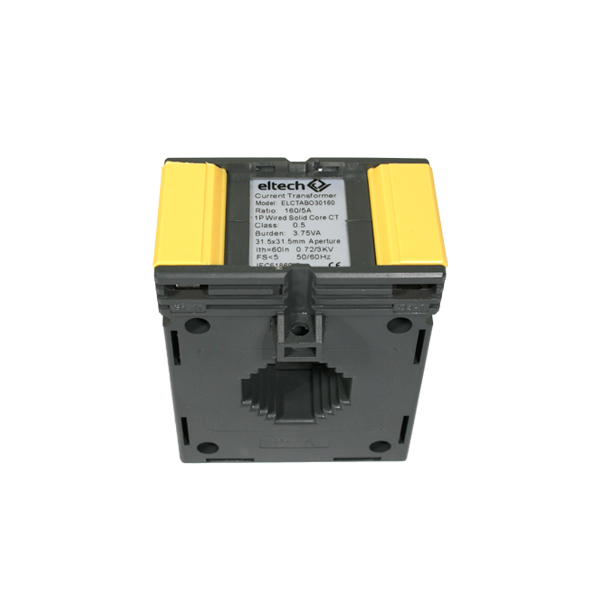

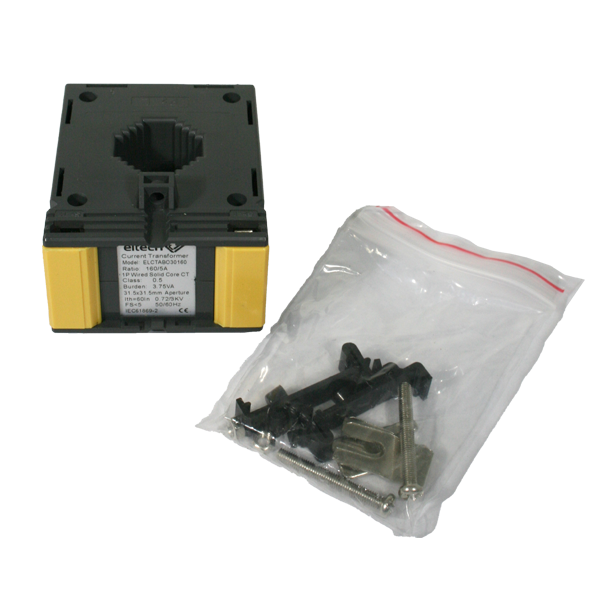

Wired Solid Core Current Transformer 160A | 1P Class 0.5S Accuracy | 31.5mm Aperture by Eltech
Wired solid core current transformer rated at 160A with a 31.5mm aperture and Class 0.5S accuracy—ideal for power quality monitoring and electrical current measurement. Built for industrial and commercial systems, it ensures reliable performance and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 160/5A 1P Wired Solid Core CT Class 0.5S 31.5 x 31.5mm Aperture
Brand: Eltech
SKU: ELCTABO30160
Alternatively Known As: Current Transformer 160A, CT 160/5A, Solid Core CT, Class 0.5S CT
Technical Specifications
- Type: 1P Wired Solid Core Current Transformer
- Accuracy Class: 0.5S
- Aperture Size: 31.5 x 31.5mm
- Current Rating: 160A
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- 1P Class 0.5S accuracy
- 31.5 x 31.5mm aperture
- 160A current rating
- Solid core design for reliable performance
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure accurate measurement and safety compliance.
Applications
- Power quality monitoring
- Electrical current measurement
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60044.1 – Instrument Transformers
Environmental Benefits
- Improves energy monitoring accuracy, enabling better energy management and reduced wastage.
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech 160/5A 1P Wired Solid Core Current Transformer is available now for immediate purchase. Ideal for power quality and electrical current monitoring applications.
