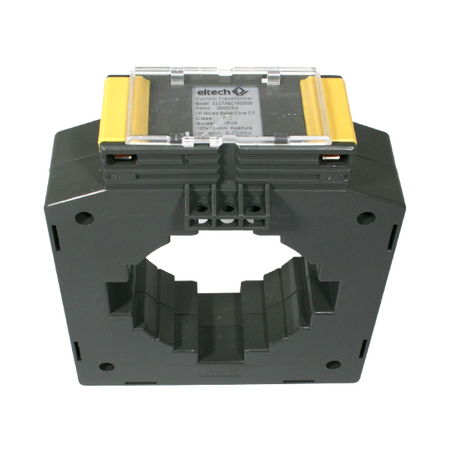

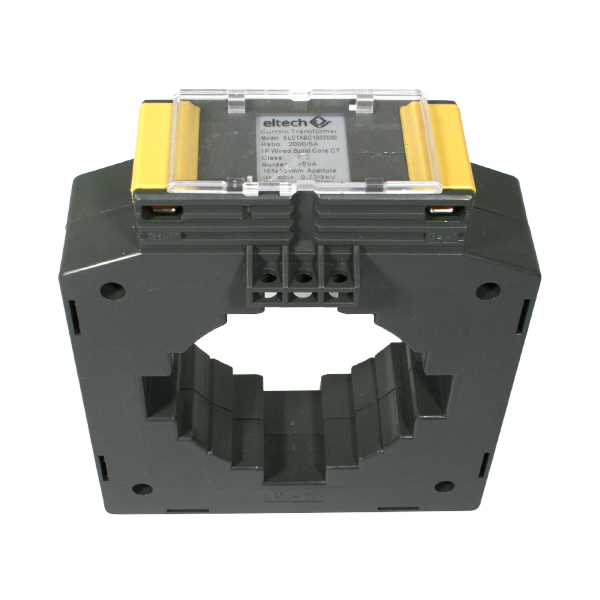

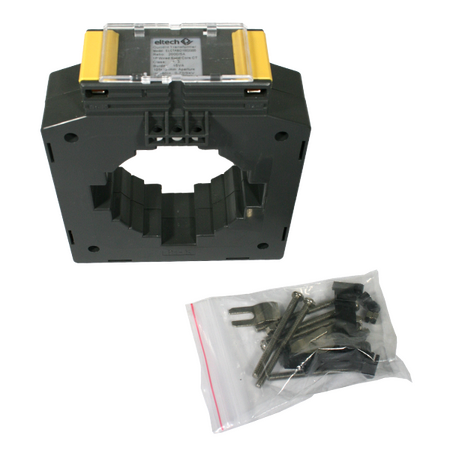

Wired Solid Core Current Transformer 2000/5A | Class 0.5S Accuracy | 101mm Aperture | Single Phase by Eltech
Wired solid core current transformer rated for 2000A primary current and featuring Class 0.5S accuracy—ideal for power quality monitoring and electrical metering. Built for industrial and commercial systems, with a 101mm aperture for large conductor sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2000/5A 1P Wired Solid Core CT Class 0.5S 101 x 101mm Aperture
Brand: Eltech
SKU: ELCTABO1002000
Alternatively Known As: Current Transformer 2000A, Solid Core CT 2000/5A, Class 0.5S CT, Wired Current Transformer
Technical Specifications
- Primary Current: 2000A
- Secondary Current: 5A
- Accuracy Class: 0.5S
- Core Type: Solid Core
- Aperture Size: 101 x 101mm
- Phase: Single (1P)
- Dimensions (H x L x W): 101mm x 50mm x 101mm
- Weight: 2 kg
Key Features
- Single phase (1P) wired solid core design
- Class 0.5S accuracy for precise current measurement
- 101 x 101mm aperture suitable for large conductor sizes
- Rated for 2000A primary current
Professional Installation Requirements
- Installation by a qualified electrician or technician is required to ensure safety and compliance with electrical standards.
Applications
- Power quality monitoring
- Electrical metering and protection
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60044.1 – Instrument Transformers (Electrical & Electronics)
Environmental Benefits
- Enables accurate energy monitoring to optimize power usage and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty terms.
Available Now
The Eltech 2000/5A 1P Wired Solid Core Current Transformer is available now for immediate purchase. Ideal for power quality monitoring and electrical metering in industrial and commercial settings.
