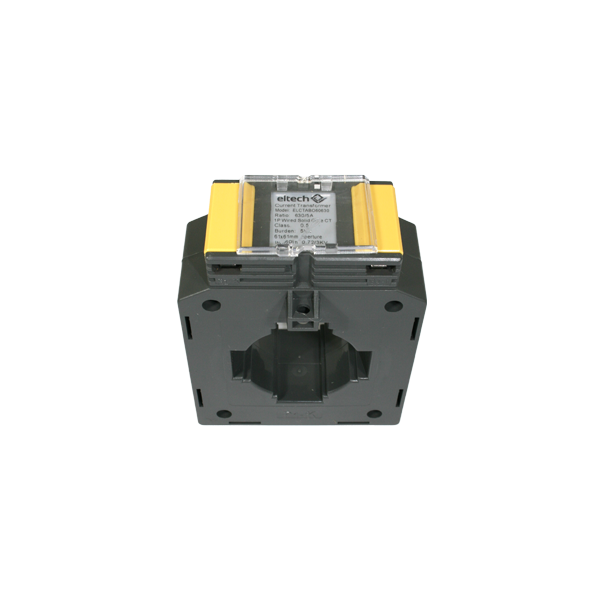

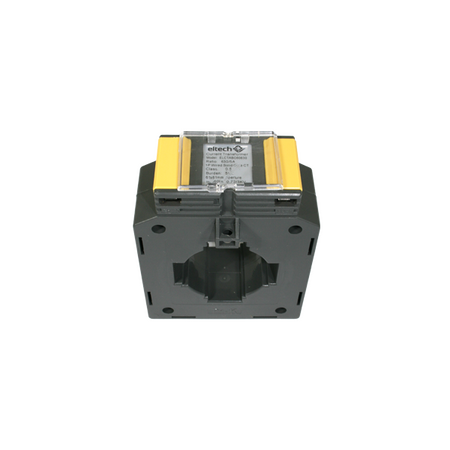

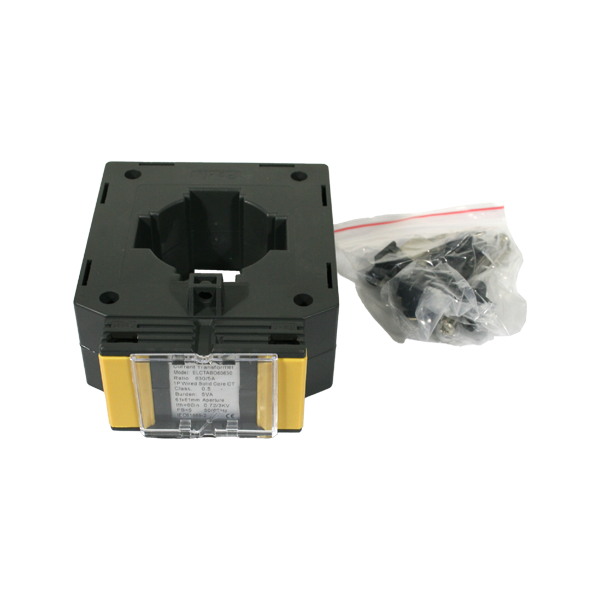

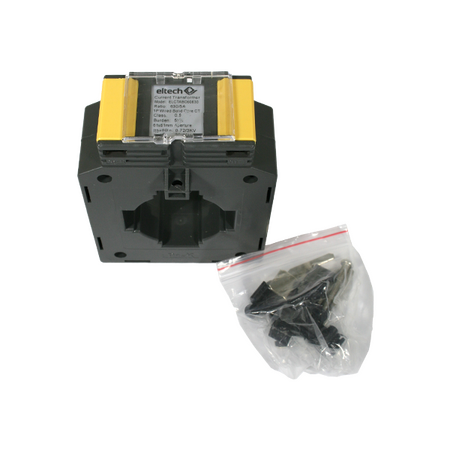

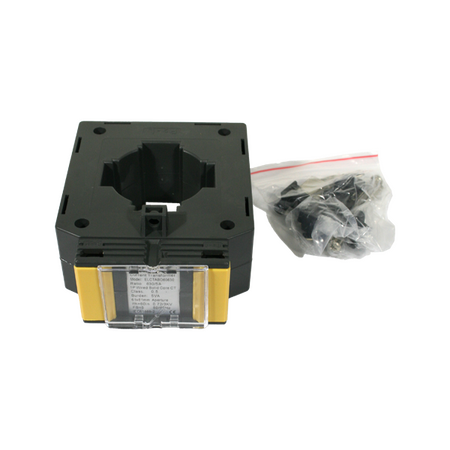

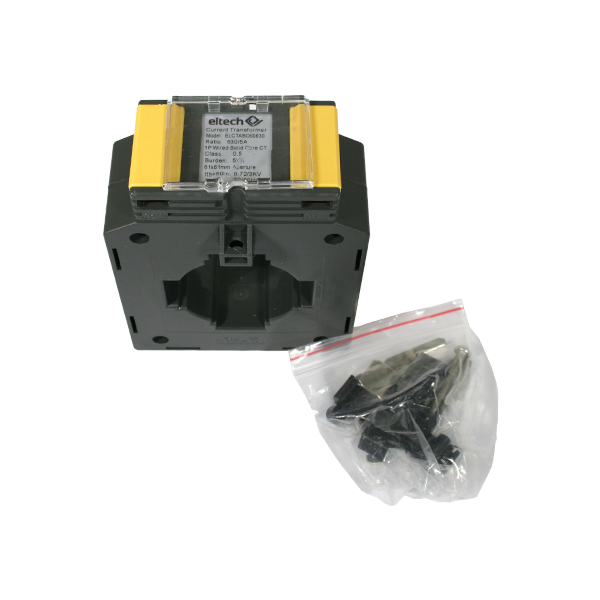

Wired Solid Core Current Transformer 630A to 5A | Class 0.5S Accuracy | 61mm Aperture by Eltech
Wired solid core current transformer with 630A primary to 5A secondary and Class 0.5S accuracy—ideal for power quality monitoring and electrical metering. Built for industrial and commercial systems, it features a 61mm aperture for versatile installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 630/5A 1P Wired Solid Core CT Class 0.5S 61 x 61mm Aperture
Brand: Eltech
SKU: ELCTABO60630
Alternatively Known As: Current Transformer 630A to 5A, Solid Core CT, Class 0.5S CT, Wired Current Transformer
Technical Specifications
- Type: Single phase (1P) wired solid core current transformer
- Accuracy Class: 0.5S
- Aperture Size: 61 x 61mm
- Primary Current: 630A
- Secondary Current: 5A
- Dimensions (H x L x W): 80mm x 50mm x 80mm
- Weight: 1.5 kg
Key Features
- Single phase (1P) wired solid core design
- Class 0.5S accuracy for precise current measurement
- 61 x 61mm aperture suitable for various conductor sizes
- Rated current: 630A primary to 5A secondary
Professional Installation Requirements
- Installation by a qualified electrician or technician is required to ensure safety and compliance with electrical standards.
Applications
- Power quality monitoring
- Electrical metering and protection
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60044.1 – Instrument Transformers
Environmental Benefits
- Enables accurate energy monitoring to optimize power usage and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for detailed warranty terms.
Available Now
The Eltech 630/5A 1P Wired Solid Core Current Transformer is available for immediate purchase, ideal for power quality and electrical metering applications.
