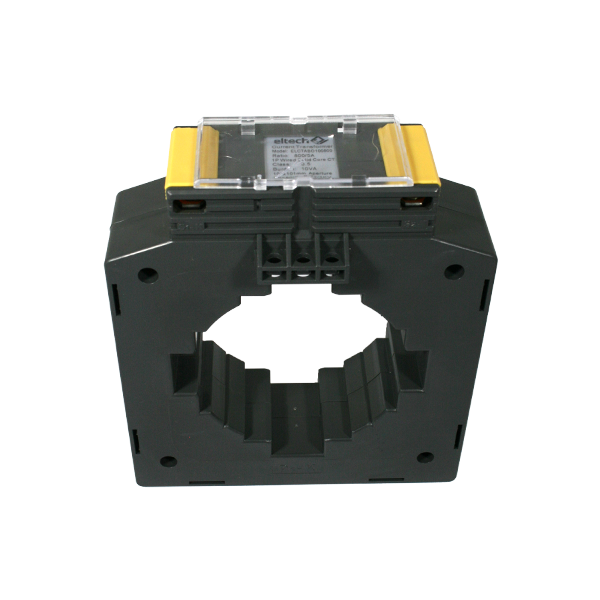

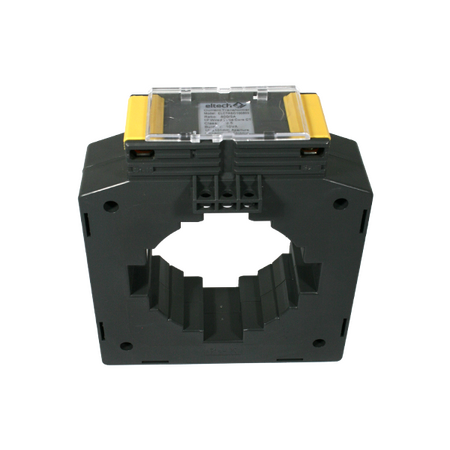

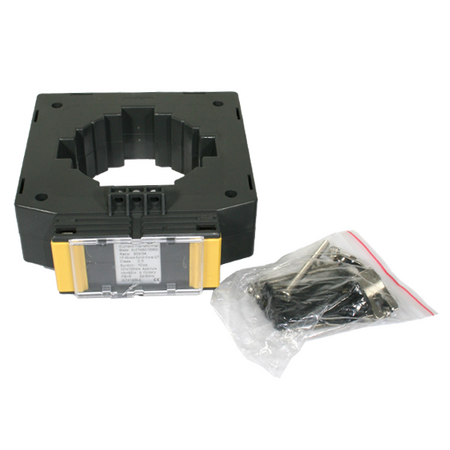

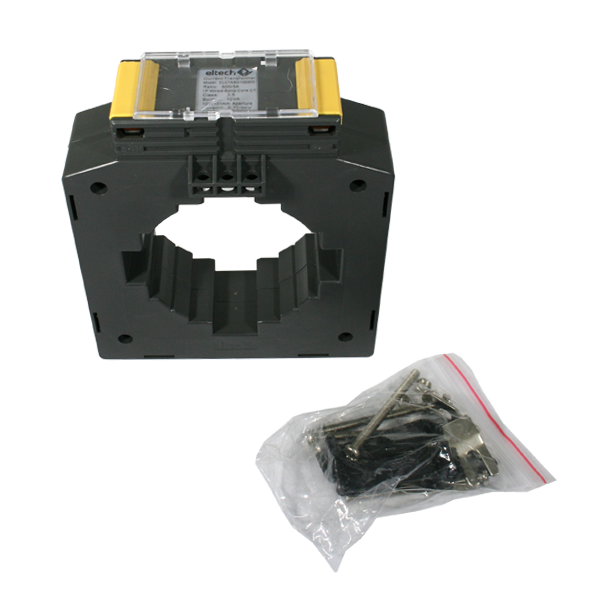

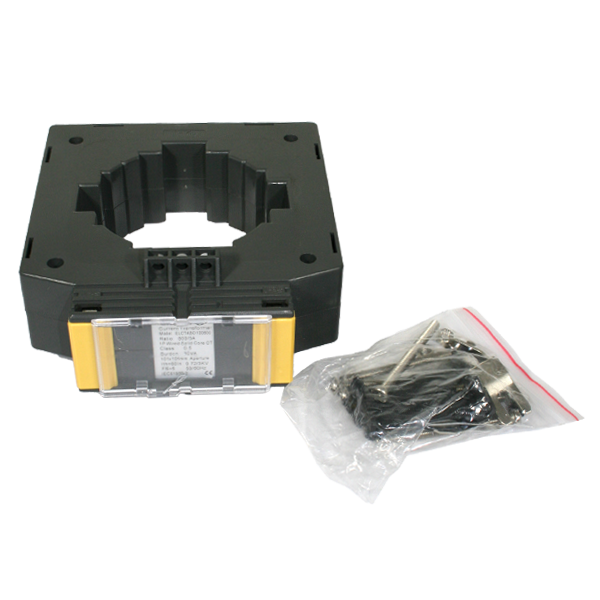

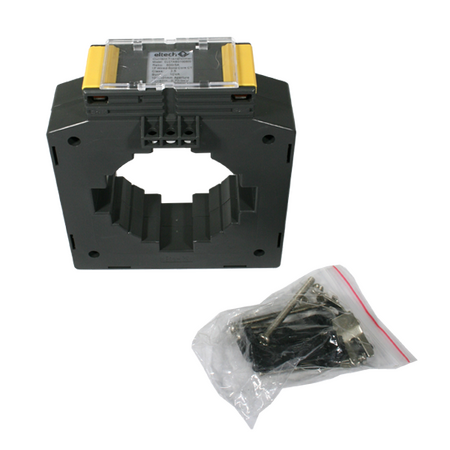

Wired Solid Core Current Transformer 800A to 5A | Class 0.5S Accuracy | 101mm Aperture by Eltech
Wired solid core current transformer with 800A primary to 5A secondary and Class 0.5S accuracy—ideal for power quality monitoring and electrical metering. Built for industrial and commercial systems, it features a 101 x 101mm aperture for versatile installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 800/5A 1P Wired Solid Core CT Class 0.5S 101 x 101mm Aperture
Brand: Eltech
SKU: ELCTABO100800
Alternatively Known As: Current Transformer 800A to 5A, Solid Core CT, Class 0.5S CT
Technical Specifications
- Type: Single phase (1P) wired solid core current transformer
- Accuracy Class: 0.5S
- Primary Current: 800A
- Secondary Current: 5A
- Aperture Size: 101 x 101mm
- Dimensions (H x L x W): 120mm x 50mm x 120mm
- Weight: 1.5 kg
Key Features
- Single phase (1P) wired solid core design
- Class 0.5S accuracy for precise current measurement
- 101 x 101mm aperture suitable for various conductor sizes
- Rated current: 800A primary to 5A secondary
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure safety and compliance with electrical standards.
Applications
- Power quality monitoring
- Electrical metering and protection
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60044.1 – Instrument transformers – Part 1: Current transformers
Environmental Benefits
- Enables accurate energy monitoring to optimize power usage and reduce waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eltech 800/5A 1P Wired Solid Core Current Transformer is available now for immediate purchase. Ideal for power quality monitoring and electrical metering applications.
