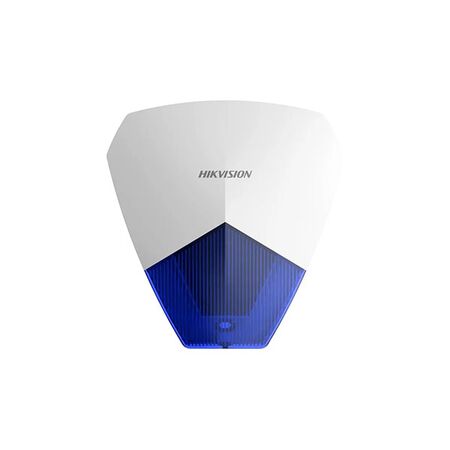

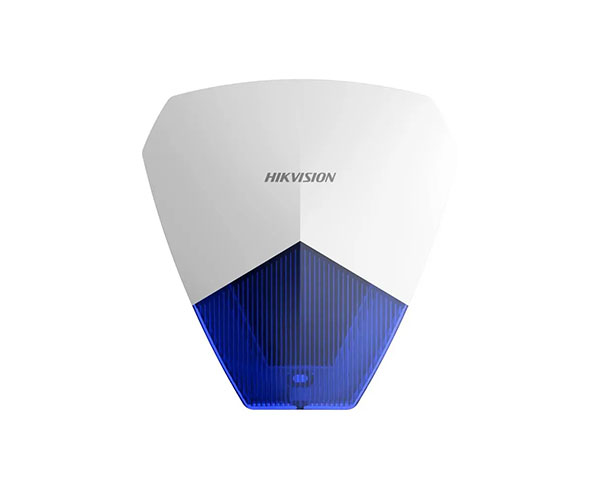

Wired Sounder Blue Hikvision

BRAND: Ness
SKU: 114-508
$41.30 List price: $55.00
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision wired sounder features a wired connection and blue finish. Ideal for Hikvision alarm system installs.

Alternatively Known As: Hikvision wired siren, wired alarm sounder, blue LED sounder, external alarm siren

Technical Specifications
  • Model: DS-PS1-B
  • Connection: Wired
  • Power Supply: 8–16 VDC
  • Maximum Current: 0.22 A
  • Quiescent Power Consumption: 0.96 W
  • Sound Pressure: 105 dB at 30 cm
  • Ingress Protection: IP54
  • Operating Temperature: -20°C to +60°C
  • Operating Humidity: 10% to 90% RH
  • Housing Material: PC+ABS
  • Colour: Blue
  • Indication: Sound and LED flash indication separately
  • Dimensions (H x L x W): 134mm x 33mm x 140mm
  • Weight: 0.185 kg
Key Features
  • 105 dB sound output measured at 30 cm
  • Separate sounder and blue LED flash indication
  • IP54-rated housing for protected indoor or outdoor alarm installations
  • Compatible with wired Hikvision alarm control panels using 8–16 VDC output
  • Compact wall-mounted design
  • Wide operating temperature range from -20°C to +60°C
Professional Installation Requirements
  • Installation should be completed by a suitably qualified security or electrical technician. Connect to the alarm control panel's 8–16 VDC auxiliary or sounder output, observing polarity and the manufacturer's wiring instructions. System installation should follow AS/NZS 2201.1.
Applications
  • Intruder alarm systems
  • Residential security installations
  • Commercial security systems
  • Small business and office alarm systems
  • Indoor or sheltered outdoor alarm sounder applications
  • Hikvision AX Hybrid PRO wired alarm installations
Standards & Compliance
  • AS/NZS 2201.1:2007 – relevant to the design, installation, commissioning and maintenance of intruder alarm systems; model-specific certification was not stated by the manufacturer
Environmental Benefits
  • Low-voltage DC operation supports efficient alarm-system power consumption
  • Durable PC+ABS housing and IP54 protection can extend service life and reduce replacement waste
  • Compact construction reduces material use compared with larger external alarm sounders
Warranty Information

Hikvision Australia RMA documentation lists alarm accessories with a 24-month warranty, subject to the applicable sales terms, authorised distribution channel and proof of purchase.

Available Now

Available through Hikvision and authorised Australian security-system distributors, subject to distributor stock.
