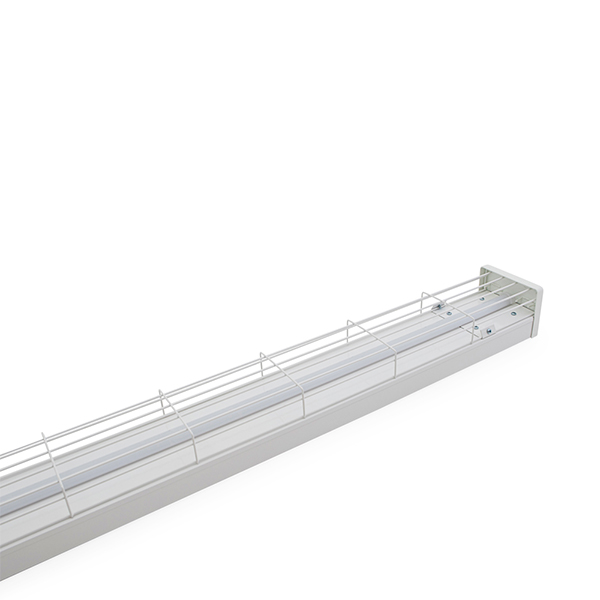

Wireguard LED Batten | Tri-CCT | 120 lm/W Efficiency | IP20 Rated | by Ektor
The Wireguard LED Batten is designed for versatile indoor lighting with a Tri-CCT configuration, allowing you to select between 4000K, 5000K, and 6500K color temperatures. With a high efficiency of 120 lm/W and an IP20 rating, it's perfect for commercial and industrial applications, ensuring reliable performance and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wireguard LED Batten, Tri-CCT LED Batten, Surface Mount LED Batten, Emergency LED Batten Light
Technical Specifications
- Total System Efficiency: 120 lm/W
- IP Rating: IP20
- Fitting Colour: White
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.9
- Maximum Wattage: 36 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.2 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (4000K, 5000K, 6500K)
- Macadam Steps: 4-step MacAdam Ellipse
- LED Voltage: 42 V
- LED Current: 800 mA
- LED Lifetime: >54,000 hours (L70B10 at 25°C and 40°C)
- Driver Type: Fixed output, constant current
- Driver Included: Yes
- Integrated Driver: No
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Output Power: 3400 mW
- Emergency Lumen Output: 400 lm
- Product Design Life: 8 years at 16 hours daily use
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 3.5 kg
Key Features
- Tri-CCT configuration with selectable colour temperatures
- High total system efficiency of 120 lm/W
- IP20 rated for indoor use
- Powder coated steel body with PMMA diffuser
- Fixed output driver with re-wireable terminal block
- Non-dimmable
- Maintained emergency mode available with 90 minutes duration
- High LED lifetime of over 54,000 hours (L70B10)
- Colour rendering index (CRI) greater than 80
- Low flicker with PstLM of 0.1 and SVM of 0.4
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety regulations.
Applications
- Commercial and industrial lighting
- Surface mounted indoor lighting
- Emergency and general lighting in workplaces and public buildings
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2.1: Particular Requirements - Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
Standard 5 years return-to-base warranty with 2 years onsite warranty for registered users in defined regions. Warranty valid up to 25,000 operating hours.
Available Now
The UMBRA ADVANCED 1200mm Wireguard LED Batten - Tri-CCT by Ektor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
