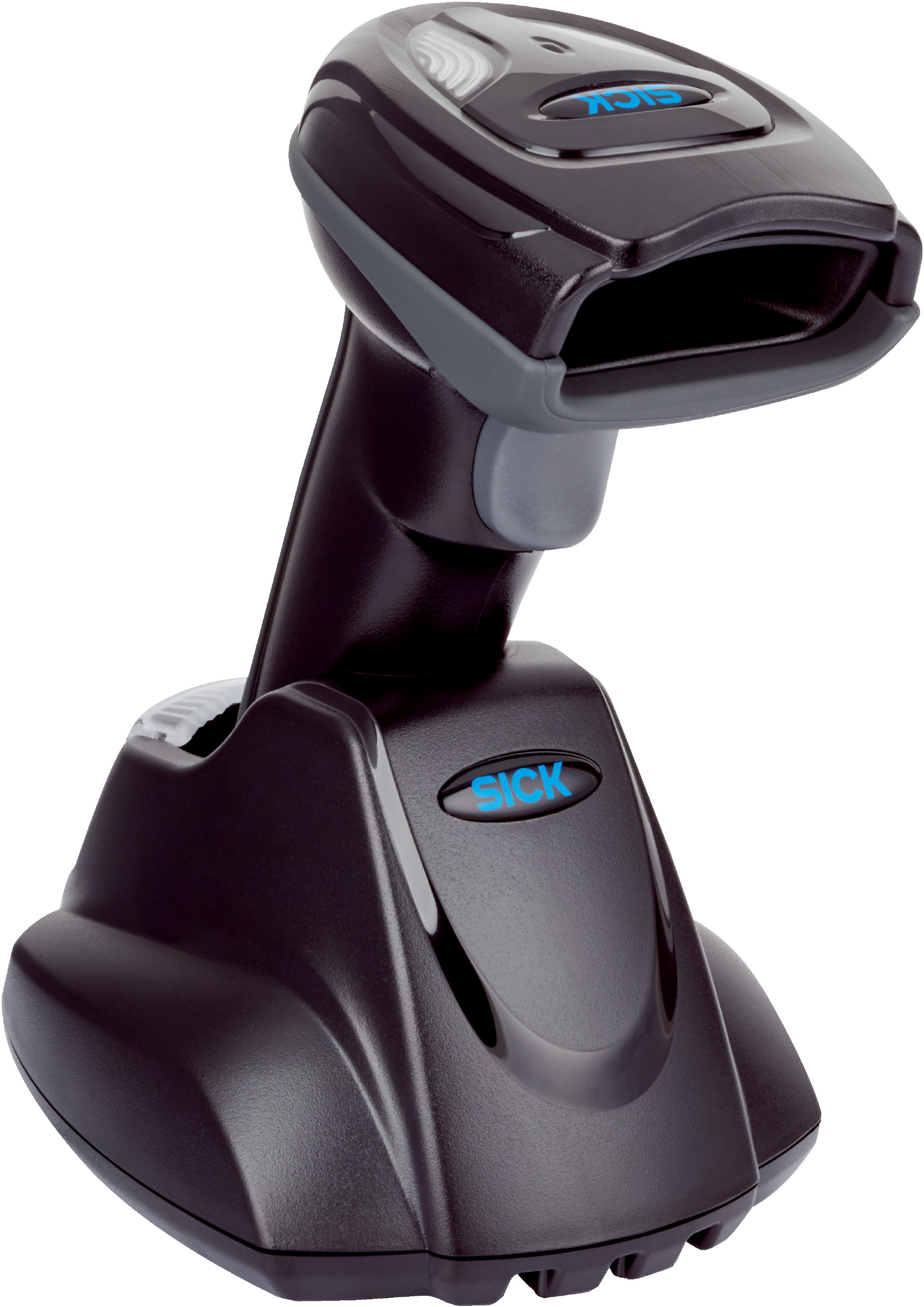

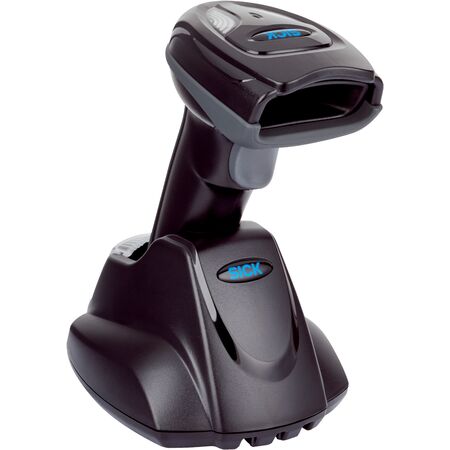

Wireless Barcode Scanner IDM241-411S | 1280 px x 800 px Resolution | 60 Hz Scanning Frequency | IP52 Rated | by SICK
The Wireless Barcode Scanner IDM241-411S is designed for efficient barcode scanning in industrial and commercial environments. With a high sensor resolution of 1280 px x 800 px and a scanning frequency of 60 Hz, it ensures quick and accurate readings from 30 mm to 400 mm. Its wireless design enhances operational flexibility, while the robust IP52 rating provides protection against dust and moisture, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, visible red, 660 nm
- Alignment aid: LED, green, 660 nm
- Reading distance: 30 mm to 400 mm
- Scanning frequency: 60 Hz
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA during operation, 175 mA standby
- Enclosure rating: IP52
- Weight: 230 g without cable
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, QR code, Data Matrix, PDF417, and more
- Battery power: Over 60,000 scans per full charge
- Code buffer: 5,000 to 100,000 codes
- Interfaces: USB with keyboard wedge and COM-Port emulation
- Indicators: 2 LEDs, beeper (switchable)
- Shock resistance: 25 drops from 1.8 m on concrete
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +70°C
- Humidity: 95% non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 160mm x 94mm x 71mm
- Weight: 0.23 kg
Key Features
- Wireless variant scanner design
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 660 nm
- Green LED alignment aid
- Reading distance from 30 mm to 400 mm
- Scanning frequency of 60 Hz
- Supports 1D, 2D, and stacked barcode types
- Battery supports over 60,000 scans per full charge
- Code buffer for 5,000 to 100,000 codes
- USB interface with keyboard wedge and COM-Port emulation
- Optical and acoustic indicators for status feedback
- Shock resistant to 25 drops from 1.8 m on concrete
- Operating temperature range from -10°C to +50°C
- Storage temperature range from -40°C to +70°C
- High ambient light immunity up to 100,000 lx
Professional Installation Requirements
- Professional installation is recommended to ensure proper USB connection and configuration using IDM Setup Tool software.
Applications
- Standard barcode scanning applications
- Wireless scanning in industrial and commercial environments
- Batch mode and out of range scanning
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Wireless design reduces cable waste and improves operational flexibility
- Energy-efficient LED light source
- Long battery life reduces frequent charging and power consumption
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM241-411S USB Kit is available for immediate purchase, ideal for wireless barcode scanning in industrial and commercial environments.
