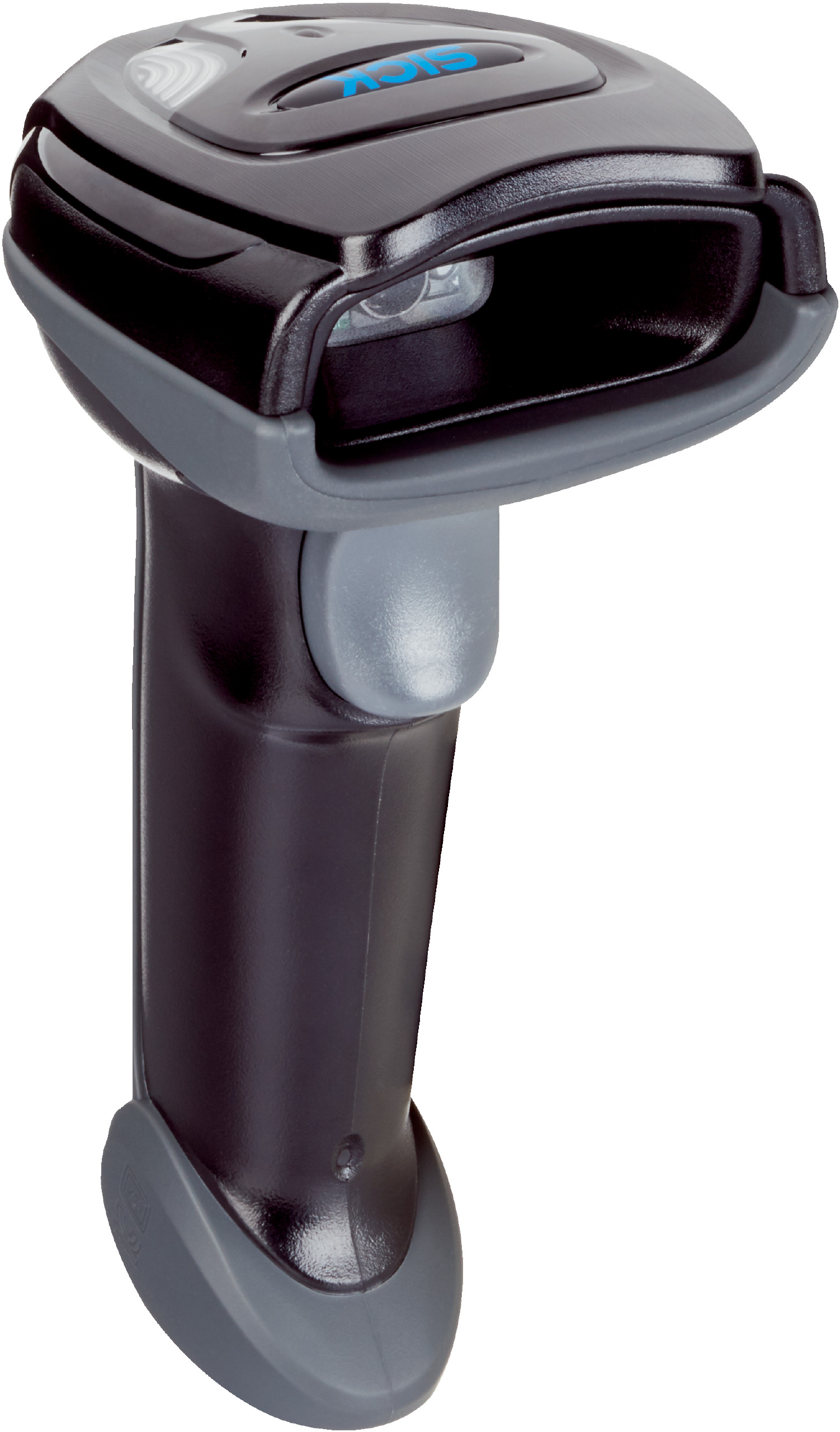

Wireless Barcode Scanner IDM241E-411S | 1280px Resolution | Bluetooth V4.0 | IP52 Rated | by SICK
The Wireless Barcode Scanner IDM241E-411S is designed for efficient mobile scanning in industrial and logistics environments. With a high sensor resolution of 1280 px x 800 px and Bluetooth V4.0 connectivity, it offers a cable-free experience with a wireless range of up to 100 m. Its IP52 rated housing ensures protection against dust and water splashes, making it ideal for various applications, including batch scanning and wireless data transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED visible red, 660 nm
- Alignment aid: LED green, 660 nm
- Reading distance: 30 mm to 400 mm
- Scanning frequency: 60 Hz
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA during operation, 175 mA standby
- Enclosure rating: IP52
- Weight: 208 g including UltraCap™ rechargeable battery
- Dimensions: 94 mm x 71 mm x 160 mm
- MTBF: 100,000 hours
- Wireless operating range: up to 100 m (free view)
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out of range scanning
- Interfaces: USB, Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232
- Bluetooth: V4.0, 2.402 to 2.4830 GHz
- Shock resistance: 25 drops from 1.8 m height on concrete
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Permissible relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 160mm x 94mm x 71mm
- Weight: 0.208 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 800 px with LED visible red light source
- Reads 1D, 2D, and stacked barcode types including QR, Data Matrix, PDF417
- IP52 rated housing for protection against dust and water splashes
- Shock resistant to 25 drops from 1.8 m height on concrete
- Code buffer supports up to 5,000 codes for batch mode and 100,000 for out of range scanning
- Multiple interface options including USB, Ethernet, PROFINET, EtherCAT, PROFIBUS DP, and Serial RS-232
Professional Installation Requirements
- Professional setup recommended including base station, connecting cable, and power supply unit for commissioning.
Applications
- Standard application for wireless barcode scanning
- Industrial and logistics environments requiring mobile handheld scanning
- Batch scanning and wireless data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Batteryless UltraCap™ supercapacitor reduces hazardous waste and environmental impact
- Long service life lowers electronic waste compared to battery-operated devices
- Non-hazardous goods classification facilitates safer shipping and handling
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

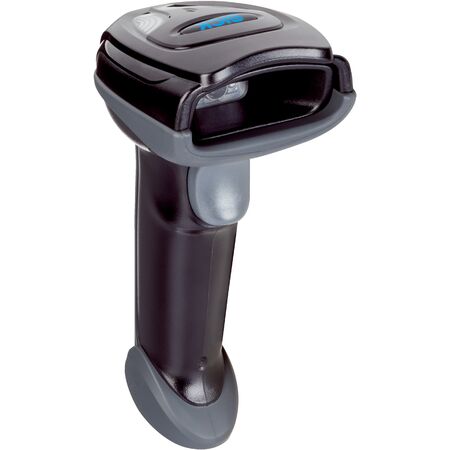

The SICK IDM241E-411S USB Set is available for immediate purchase, ideal for industrial and logistics applications requiring reliable wireless barcode scanning.
