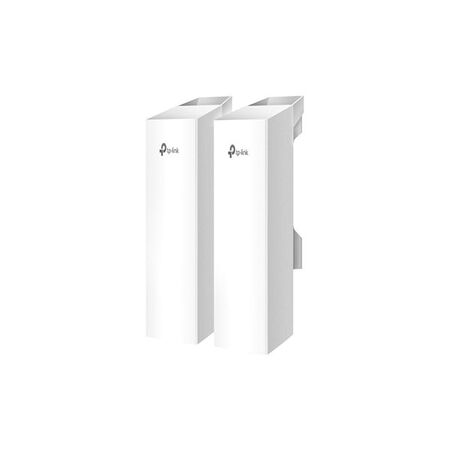

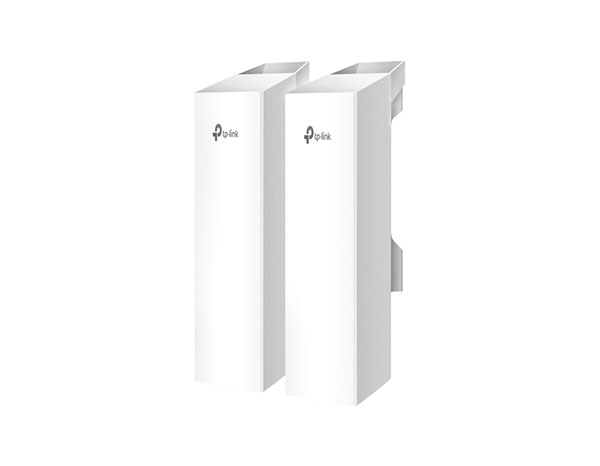

Wireless Bridge Kit 1km 867 Mbps IP65 Ness
Ness wireless bridge kit features 1km range, 867 Mbps speed and 3 Gigabit ports in an IP65 weatherproof build. Ideal for wireless network bridge links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EAP211-Bridge KIT, 5 GHz Outdoor Wireless Bridge, Point-to-Point Wireless Bridge, Wireless Network Bridge
Technical Specifications
- Wireless Standard: IEEE 802.11a/b/g/n/ac
- Wireless Frequency: 5 GHz
- Maximum Wireless Rate: Up to 867 Mbps
- Transmission Distance: Up to 1 km
- Ethernet Interfaces: 3 × Gigabit Ethernet ports
- Antenna: Internal 2 × 2 dual-polarised directional MIMO, 7 dBi
- Beamwidth: 70° horizontal × 70° vertical
- Power Supply: 12 V DC or 24 V passive PoE; adapter included
- Maximum Power Consumption: 11.5 W
- Weatherproof Rating: IP65
- Lightning Protection: 6 kV common-mode protection
- Operating Temperature: -40 °C to +70 °C
- Operating Humidity: 10–90% non-condensing
- Management: Standalone web interface, Omada App or Omada SDN
- Kit Contents: Two EAP211-Bridge units, passive PoE adapters, power cords, installation guide and mounting hardware
- Manufacturer Certifications: CE, FCC and RoHS
- Dimensions (H x L x W): 224mm x 60mm x 79mm
- Weight: 0.5618 kg
Key Features
- Preconfigured wireless bridge kit for rapid point-to-point deployment
- Supports wireless transmission up to 1 km with clear line of sight
- Up to 867 Mbps 5 GHz 802.11ac wireless data rate
- Three Gigabit Ethernet ports per bridge for cameras and network devices
- IP65 enclosure for outdoor installations
- 6 kV lightning protection and wind-resistant design
- Auto-pairing for simplified initial setup
- Directional 2 × 2 MIMO antennas with 70° beamwidth
- Supports passive PoE and 12 V DC power
- Compatible with standalone management and Omada SDN centralised management
Professional Installation Requirements
- Professional installation is recommended for outdoor pole or wall mounting, correct antenna alignment, weatherproof cable entry, grounding and safe connection of the included power equipment. Maintain clear line of sight between bridge units for the stated range.
Applications
- Point-to-point network links between buildings
- Wireless connection to detached offices, warehouses, sheds and workshops
- Outdoor IP camera and surveillance network links
- Extending LAN connectivity across campuses, farms and commercial sites
- Temporary or permanent outdoor network infrastructure
Environmental Benefits
- Low maximum power consumption of 11.5 W helps reduce operating energy use
- IP65 weatherproof construction supports extended outdoor service life and can reduce replacement waste
- Wireless bridging can reduce the need for new inter-building trenching and long copper cable runs
- RoHS certification indicates restriction of specified hazardous substances in the product
Warranty Information
Ness Corporation's general warranty for Ness manufactured or supplied products is 3 years from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness terms and conditions.
Available Now
Available through Ness and authorised Australian distributors; confirm current stock and regional hardware-version availability before ordering.
