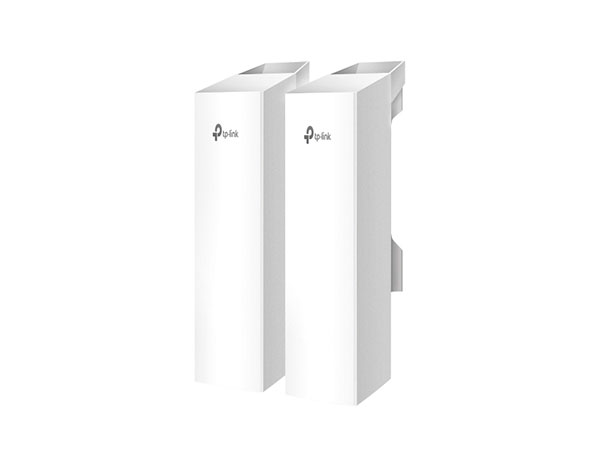

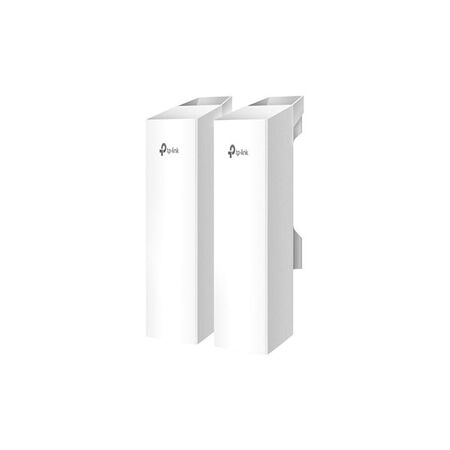

Wireless Bridge Kit 500m TP-Link Ness
Ness TP-Link EAP100-Bridge wireless bridge kit with 500m range. Ideal for wireless network bridge links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Omada EAP100-Bridge KIT, 2.4GHz 300Mbps Wireless Bridge, Point-to-Point Wireless Bridge
Technical Specifications
- Wireless Standard: IEEE 802.11b/g/n
- Frequency: 2.4GHz
- Maximum Wireless Rate: 300Mbps
- Transmission Distance: Up to 500m
- Ethernet Ports: 3 × 10/100Mbps
- Antenna: Internal 2×2 dual-polarised directional MIMO, 8dBi
- Beamwidth: Horizontal 70°, vertical 70°
- Power Input: 12V DC, 802.3af PoE, 24V passive PoE or 48V passive PoE
- Maximum Power Consumption: 4.8W
- Weatherproof Rating: IP65 for pole mounting
- Lightning Protection: Up to 6kV
- Operating Temperature: -40°C to +70°C
- Management: Omada App, web interface and Omada SDN
- Kit Contents: Two preconfigured bridge units with mounting accessories and power equipment
- Dimensions (H x L x W): 224mm x 60mm x 79mm
- Weight: 1.5 kg
Key Features
- Preconfigured bridge pair for rapid point-to-point deployment
- Supports wireless network links up to 500m under suitable conditions
- 2.4GHz 300Mbps wireless transmission
- Three 10/100Mbps Ethernet ports per bridge unit
- Automatic pairing and app-guided alignment
- IP65 weatherproof enclosure for outdoor pole installations
- Supports standalone or centralised Omada management
- Role switch for Main AP and Client AP operation
- Designed for CCTV, remote-building and site-to-site network links
Professional Installation Requirements
- Outdoor pole installation should follow the manufacturer's mounting, grounding and lightning-protection instructions. Fixed mains electrical work is not required when using the supplied low-voltage power adapter.
Applications
- Point-to-point wireless links between buildings
- CCTV and security camera network extension
- Connecting remote gates, sheds, workshops or site offices
- Wireless network bridging across commercial or residential properties
- Temporary or permanent outdoor data links
Standards & Compliance
- AS/NZS 4268:2017 Amd 1:2021 for applicable short-range radio equipment requirements
- Australian supply requires applicable ACMA requirements and Regulatory Compliance Mark labelling
Environmental Benefits
- Low maximum power consumption of 4.8W supports reduced operating energy use
- IP65 weatherproof construction supports extended service life and reduced replacement waste
- RoHS compliance is specified by the manufacturer, restricting certain hazardous substances
- Reusable low-voltage network hardware can reduce the need for new cabling between buildings
Warranty Information
Ness's general warranty for Ness-manufactured or supplied products is 3 years from the date of purchase, unless otherwise specified. Confirm product-specific warranty terms at purchase.
Available Now
Available through Ness and authorised Australian distributors, subject to regional product availability.
