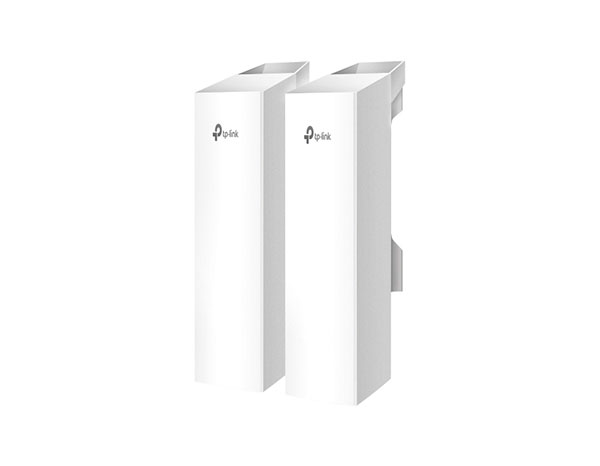

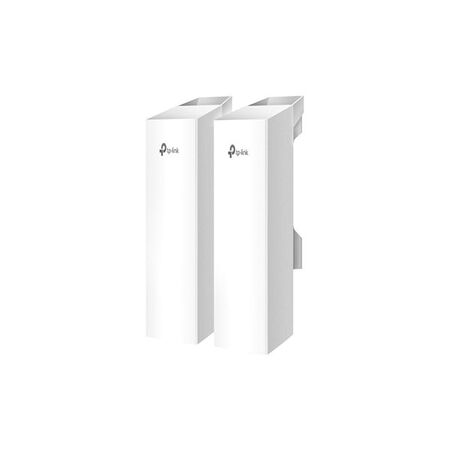

Wireless Bridge Kit 5km 867 Mbps 3 Gigabit Ports IP65 Ness
Ness wireless bridge kit features a 5km range, 867 Mbps, 3 gigabit ports and IP65 rating. Ideal for wireless network bridge links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Omada EAP215-Bridge KIT, 5 GHz Outdoor Wireless Bridge, Long-Range Wi-Fi Bridge, Point-to-Point Wireless Bridge
Technical Specifications
- Model: EAP215-Bridge KIT
- Wireless Standard: IEEE 802.11a/b/g/n/ac
- Wireless Frequency: 5 GHz
- Maximum Wireless Data Rate: 867 Mbps
- Maximum Transmission Distance: Up to 5 km
- Ethernet Interfaces: 3 × Gigabit Ethernet ports
- Antenna: Internal 2 × 2 dual-polarised directional MIMO
- Antenna Gain: 11 dBi at 5 GHz
- Power Supply: 12 V DC or 24 V passive PoE; adapter included
- Maximum Power Consumption: 11.5 W
- Weather Protection: IP65
- Lightning Protection: 6 kV
- Operating Temperature: -40 °C to 70 °C
- Management: Standalone web interface, Omada App and Omada SDN
- Security: WPA/WPA2 Personal and Enterprise, VLAN and access control
- Certifications: CE, FCC and RoHS
- Dimensions (H x L x W): 224mm x 79mm x 60mm
- Weight: 2 kg
Key Features
- Preconfigured wireless bridge kit for rapid point-to-point deployment
- Up to 5 km transmission distance under suitable line-of-sight conditions
- 867 Mbps 5 GHz 802.11ac wireless data rate
- Three Gigabit Ethernet ports for cameras, switches or other network devices
- IP65 weatherproof enclosure for indoor or outdoor use
- 6 kV lightning protection for outdoor installations
- Auto-pairing and app-guided alignment features
- Supports passive PoE for flexible installation
- Compatible with Omada SDN centralised management
Professional Installation Requirements
- Professional installation is recommended for outdoor pole mounting, precise antenna alignment, weatherproof cable entry, earthing and PoE connection. Install in accordance with applicable ACMA requirements and the manufacturer’s instructions.
Applications
- Point-to-point network links between buildings
- Wireless connectivity for remote CCTV cameras
- Warehouse, campus and industrial network extensions
- Outdoor security and access-control networks
- Temporary or permanent links where cable installation is impractical
Standards & Compliance
- AS/NZS 4268:2017 — applicable Australian/New Zealand standard for short-range radio equipment limits and measurement; confirm the supplied unit’s ACMA/RCM compliance marking before deployment
Environmental Benefits
- Low maximum power consumption of 11.5 W can reduce operating energy use
- IP65 weather protection supports longer service life and reduces premature replacement waste
- RoHS certification indicates restriction of specified hazardous substances in the product
Warranty Information
Ness states that Ness-manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. ([ness.com.au](https://ness.com.au/product-warranty))
Available Now
Available through Ness and authorised Australian networking and security distributors.
