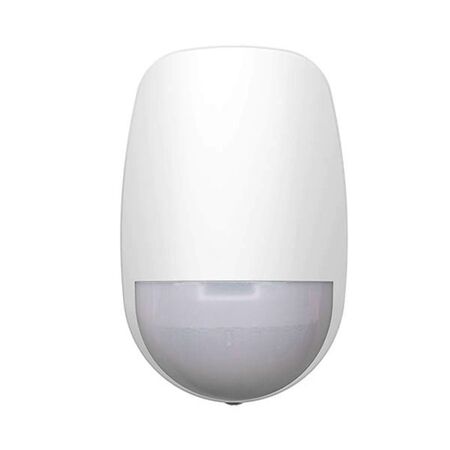

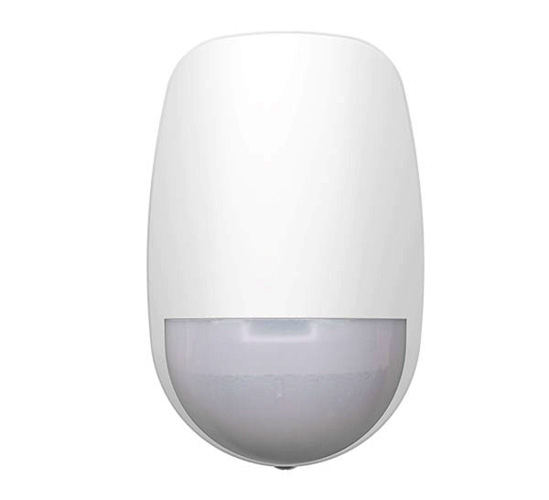

Wireless Curtain PIR Detector AX PRO Hikvision
Hikvision AX PRO wireless curtain PIR detector for narrow zone motion detection. Ideal for alarm systems protecting openings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wireless Curtain PIR Detector, AX PRO Narrow-Angle PIR, Perimeter Curtain Motion Detector
Technical Specifications
- Detection Technology: Passive infrared (PIR)
- Detection Range: 15 m
- Detection Angle: 6.3°
- Detection Zones: 18
- Detectable Speed: 0.3–2 m/s
- Wireless Communication: Two-way Tri-X RF wireless
- Transmission Frequency: 433 MHz
- Wireless Range: Up to 1.2 km in open area
- Transmission Security: AES-128 encryption
- Power Supply: 1 x CR123A battery, 3 V
- Battery Life: Up to 5 years under specified operating conditions
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10–90% RH, non-condensing
- Mounting Height: 1.8–3 m
- Installation: Indoor wall mounting; optional wall and ceiling brackets available
- Tamper Protection: Front and rear
- Pet Immunity: Not specified; do not treat as pet-immune
- Dimensions (H x L x W): 103mm x 48.5mm x 65.5mm
- Weight: 0.128 kg
Key Features
- Creates a narrow detection curtain for windows, doorways, hallways and perimeter openings
- 15 m detection coverage with a 6.3° field of view
- Two-way wireless communication for alarm and status reporting
- Frequency hopping helps improve resistance to wireless interference and jamming
- AES-128 encrypted wireless transmission
- Automatic sensitivity adjustment and digital temperature compensation
- Front and rear tamper detection
- Blue alarm LED indicator
- Power-up, remote ID and QR-code enrolment methods
- Replaceable CR123A battery with up to five years of stated service life
Professional Installation Requirements
- Installation and commissioning should be carried out by a suitably qualified security-alarm installer. Positioning, wireless signal strength, tamper operation and integration with the AX PRO control panel should be tested before handover. Follow the manufacturer’s installation instructions and applicable Australian alarm-system requirements.
Applications
- Protecting windows, doors and other building openings
- Perimeter protection using a narrow infrared detection curtain
- Residential intrusion alarm systems
- Small commercial premises, offices and retail sites
- Hallways, corridors and restricted access points
- AX PRO wireless alarm installations
Standards & Compliance
- AS/NZS 2201.1:2007: relevant Australian standard for intruder alarm systems; verify complete system installation and certification requirements
- ACMA radiofrequency and electromagnetic compatibility requirements apply to wireless equipment marketed in Australia; product-specific Australian conformity documentation should be verified before installation
Environmental Benefits
- Low-power battery operation reduces ongoing energy consumption compared with permanently mains-powered detection devices
- Up to five years of stated battery life can reduce battery replacement frequency and associated waste
- Replaceable battery and durable sealed-optics construction can extend service life and reduce premature product replacement
Warranty Information
Hikvision Australia’s RMA policy lists wireless detectors under a 24-month warranty category, subject to the applicable sales terms, proof of purchase, authorised distribution and exclusions for incorrect installation, misuse or unauthorised repair. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V6.0.pdf?utm_source=openai))
Available Now
Available through Hikvision Australia and authorised Australian security-equipment distributors. Confirm the regional model and radio frequency before ordering.
