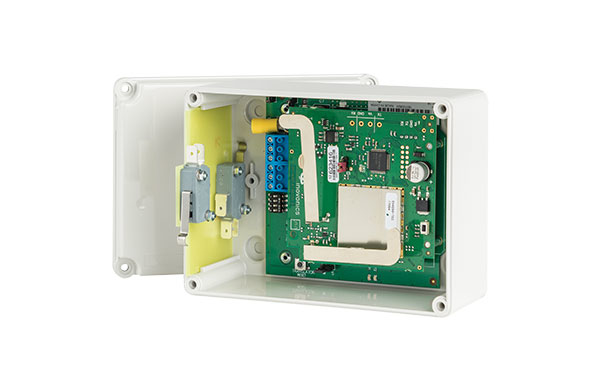

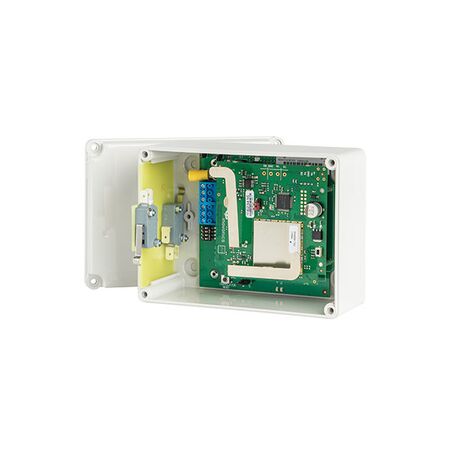

Wireless Data Gathering Panel DGP Inovonics Ecostream Tecom

BRAND: Ness
SKU: 120-402
$1,503.60 List price: $2,004.80
+ −
30 Days Return Electricians Unlock Trade Access
Tecom wireless data gathering panel features Inovonics Ecostream. Ideal for adding wireless devices to Challenger alarm systems.

Alternatively Known As: Tecom TS0825E Wireless DGP, Wireless Data Gathering Panel, Inovonics EchoStream Wireless Expander, Challenger Wireless Input Expander

Technical Specifications
  • Model: TS0825E
  • System Compatibility: Tecom Challenger alarm systems
  • Power Supply: 13.8 VDC via system LAN
  • Operating Current: 90 mA
  • Wireless Frequency: 915–928 MHz Australia; 921–928 MHz New Zealand
  • Wireless Alarm Inputs: Up to 16 or 32
  • Maximum Duress Inputs: 1,024
  • Maximum Distance from Challenger Panel: 1.5 km
  • System Capacity: Up to 15 DGPs per control panel; maximum 240 wireless zones
  • Communications Cable: Belden 8723 or equivalent
  • Operating Temperature: 0°C to 60°C
  • Enclosure Rating: IP55 plastic enclosure
  • Addressing: Individually addressed by DIP switches
  • Dimensions (H x L x W): 150mm x 70mm x 110mm
  • Weight: 0.2 kg
Key Features
  • Adds wireless devices to compatible Tecom Challenger alarm systems
  • Supports Inovonics EchoStream wireless PIRs, smoke detectors, glass-break detectors, pendants and remotes
  • Provides up to 32 virtual wireless alarm inputs
  • Supports up to 1,024 duress users or panic pendants
  • Wireless sensor supervision with heartbeat monitoring
  • Reports wireless signal margin to the Challenger system
  • Reports detector and duress transmitter low-battery conditions
  • Monitors wireless channels for interference and jamming
  • Front and rear tamper protection
  • Compatible with Inovonics repeaters to extend wireless coverage
  • Internal transmitter database for registering device IDs
Professional Installation Requirements
  • Installation, wiring, addressing and programming should be completed by a suitably qualified security systems technician. The unit requires connection to a compatible Tecom Challenger system and configuration of the wireless transmitters in accordance with the manufacturer's installation documentation.
Applications
  • Adding wireless intrusion detectors to Tecom Challenger alarm systems
  • Wireless protection of heritage buildings where drilling or cabling is restricted
  • Connecting wireless devices in detached garages, sheds and outbuildings
  • Wireless panic and duress pendant integration
  • Security installations where cable runs through concrete walls, floors or difficult-access areas are impractical
Standards & Compliance
  • For use as part of intruder alarm system installations designed, installed, commissioned and maintained in accordance with AS/NZS 2201.1:2007
Environmental Benefits
  • Reduces the need for extended cable runs, trenching and wall penetrations during system expansion
  • Low operating current of approximately 90 mA helps limit system energy consumption
  • IP55 enclosure and supervised wireless operation support reliable service life and reduce premature replacement waste
Warranty Information

Tecom hardware is covered by a 5-year warranty against manufacturing defects, subject to the manufacturer's warranty terms and replacement after testing and verification.

Available Now

Available through Tecom and authorised Australian security-system distributors; confirm current stock and compatibility before ordering.
