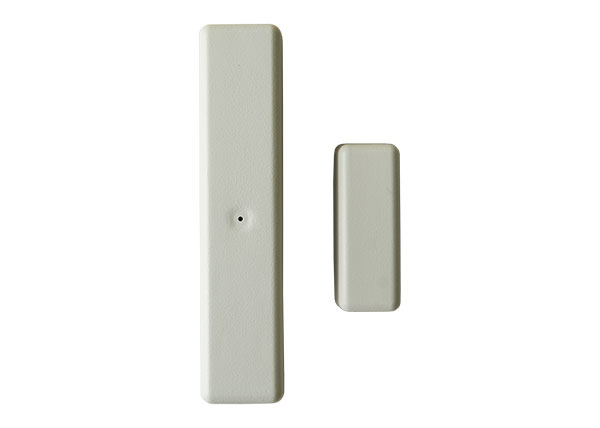

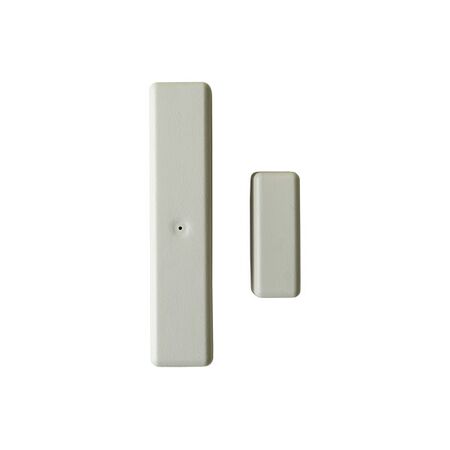

Wireless Door Sensor Slim Line Reed 902-928MHz Battery Powered Ness
Ness wireless door sensor features a slim line reed, 902-928MHz operation and battery power. Ideal for wireless alarm system installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness TWR Slim Line Reed, Ness 6020 Wireless Door Sensor, Wireless Magnetic Door Contact
Technical Specifications
- Model: TWR Slim Line Reed
- Ness SKU: K-106-273
- Radio Frequency: 902–928 MHz frequency-hopping spread spectrum
- Technology: Two-way wireless communication with signal acknowledgement
- Detection: Built-in reed switch
- Maximum Reed Operating Gap: 12 mm
- Battery: 3.6 V ER14250 lithium battery, included
- Typical Battery Life: 7 years
- Tamper Protection: Front and back tamper options
- Operating Temperature: -10°C to 40°C
- Relative Humidity: 5–95% non-condensing
- Compatibility: Ness M1 two-way wireless transceiver 101-292 and Ness TWR-SCR standalone transceiver 106-304
- Dimensions (H x L x W): 20mm x 86mm x 18mm
- Weight: 0.1 kg
Key Features
- Slimline profile for discreet installation on door and window frames
- Two-way wireless communication with positive signal acknowledgement
- Built-in magnetic reed switch for open and closed detection
- Front and back tamper options
- Supplied magnet for unobtrusive mounting
- Low-battery reporting to the compatible alarm control system
- ER14250 lithium battery included
Professional Installation Requirements
- Installation and enrolment should be completed by a suitably qualified security alarm installer where the sensor forms part of a monitored or professionally installed alarm system.
Applications
- Residential door and window monitoring
- Commercial premises entry-point protection
- Wireless intrusion alarm systems
- Replacement or extension sensor for compatible Ness TWR systems
Standards & Compliance
- AS/NZS 2201.1:2007 — applicable to the design, installation, commissioning and maintenance of intruder alarm systems; product-specific conformity is not stated by the manufacturer
Environmental Benefits
- Typical seven-year battery life reduces the frequency of lithium battery replacement and associated waste
- Low-power wireless operation supports extended service intervals
- Compact construction reduces material use compared with larger wired or wireless sensor housings
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation’s warranty terms and Australian Consumer Law.
Available Now
Available through Ness Corporation and authorised Australian security-system distributors.
