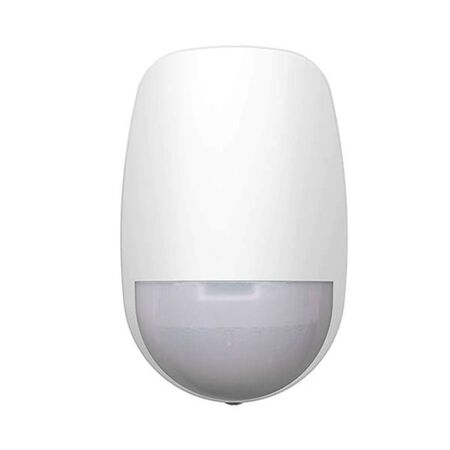

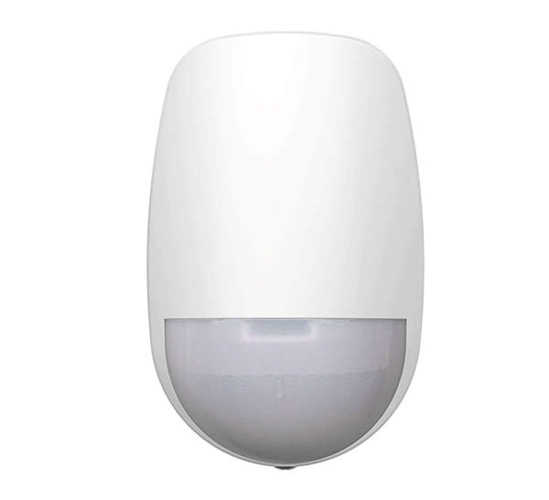

Wireless Dual-Tech Detector AX PRO Hikvision
Hikvision AX PRO wireless dual-tech detector for motion detection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AX PRO Wireless Dual Technology Detector, PIR and Microwave Motion Detector, Pet-Immune Wireless Motion Sensor
Technical Specifications
- Detection Method: Passive infrared and microwave
- Detection Range: 12 m
- Detection Angle: 85.9°
- Detection Zones: 52 zones across 4 planes
- Microwave Frequency: 24 GHz (24.15–24.25 GHz)
- Pet Immunity: Up to 30 kg
- Transmission Technology: Tri-X wireless
- Transmission Method: Two-way RF wireless
- Transmission Frequency: 433 MHz
- Transmission Range: Up to 1.2 km in free space
- Transmission Security: AES-128 encryption
- Power Supply: 2 x CR123A batteries
- Battery Life: Up to 5 years in standard standby conditions
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Recommended Mounting Height: 1.8–2.4 m
- Dimensions (H x L x W): 103mm x 48.5mm x 65.5mm
- Weight: 0.141 kg
Key Features
- Combines PIR and microwave detection for improved motion detection accuracy
- Automatic, high and pet-sensitive detection modes
- Pet immunity for animals up to 30 kg
- Digital temperature compensation and digital signal processing
- Creep-zone protection and sealed optics
- Front and rear tamper protection
- Two-way wireless communication with frequency hopping
- Signal strength and environmental temperature indicators
- Green, red and blue LED status indicators
- Wall-mounted design for AX PRO wireless alarm systems
Professional Installation Requirements
- Installation, enrolment and commissioning should be performed by a qualified security alarm installer. Position and test the detector in accordance with the Hikvision installation instructions and applicable intruder alarm requirements.
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Offices, shops and small business premises
- Indoor motion detection zones requiring pet immunity
- AX PRO wireless alarm installations
Standards & Compliance
- AS/NZS 2201.1:2007 is applicable to the design, installation, commissioning and maintenance of intruder alarm systems incorporating wire-free detection devices; product-specific certification was not stated in the available Hikvision documentation.
Environmental Benefits
- Battery-powered wireless design can reduce cabling and installation materials
- Up to five-year standard battery life can reduce service visits and battery waste
- Reusable electronic housing supports longer service life than disposable detection components
Warranty Information
Hikvision Australia warranty support is available through authorised distribution partners. A product-specific warranty period for the AX PRO DS-PDD12P-EG2-WB was not stated in the available Hikvision documentation; confirm the applicable term with the supplier.
Available Now
Available through Hikvision and authorised Australian security distributors.
