Wireless Family Relay Interface 240V NO/NC 5A Smoke Alarm Cavius

BRAND: Cavius
SKU: 9005 CAVRI
$146.10 List price: $194.80
+ −
30 Days Return Electricians Unlock Trade Access

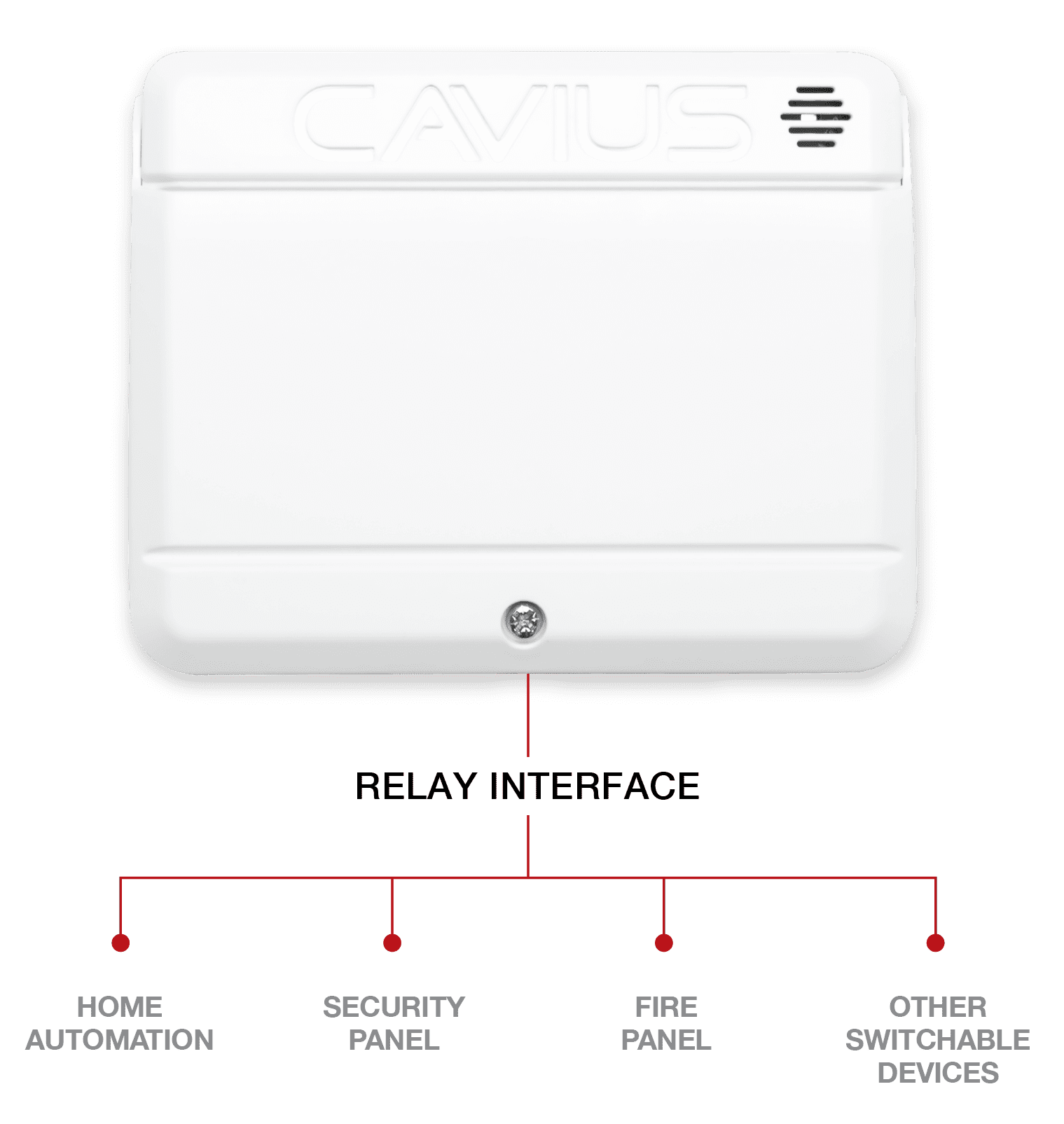

Cavius Wireless Family relay interface. 240V, NO/NC relay 250VAC/30VDC 5A, links smoke and heat alarms to security, fire and home automation.

Alternatively Known As: Cavius 9005 CAVRI, Wireless Family Relay Switch, Cavius Relay Interface

Technical Specifications
  • Product Code: 9005 CAVRI
  • Product Type: Wireless relay interface
  • Power Supply: 230-240V AC
  • Relay Contacts: NO/NC
  • Relay Rating: 250VAC at 5A or 30VDC at 5A
  • Trigger Input: 3V to 30V DC
  • RF Interconnect: Up to 32 Wireless Family alarms
  • Interconnected Radio Frequency: 926.365 MHz
  • Dimensions: 145 x 110 x 27mm
  • Weight: 250g
  • Dimensions (H x L x W): 27mm x 145mm x 110mm
  • Weight: 0.25 kg
Key Features
  • Connects Cavius Wireless Family alarms to external systems
  • Normally Open and Normally Closed relay contacts
  • 250VAC at 5A relay rating
  • 30VDC at 5A relay rating
  • Trigger input supports 3V to 30V DC
  • Latched or pulsed relay output
  • Backup Duracell lithium battery
  • Green LED indicates mains power
  • RF interconnection for up to 32 devices
Professional Installation Requirements
  • This is a mains powered interface and should be installed by a suitably qualified professional or registered electrician in accordance with applicable electrical safety requirements.
Applications
  • Security panel integration
  • Fire panel integration
  • Home automation systems
  • External switchable devices
  • Cavius Wireless Family alarm integration
Standards & Compliance
  • AS4268 RF requirements.
  • RCM/CE requirements as applicable to the product.
Environmental Benefits
  • Replaceable backup battery extends service life
  • Designed for integration with existing alarm and automation systems
Warranty Information

Cavius datasheet states a 10-year warranty.

Available Now

Available from Cavius Australia and authorised distributors.
