Wireless Family Relay Switch | NC & NO Contacts | Battery Backup | RF Technology | by Cavius
The Wireless Family Relay Switch is designed for seamless integration with CAVIUS Wireless Family smoke and heat alarms, featuring Normally Closed (NC) and Normally Open (NO) contacts for versatile applications. With a reliable battery backup and the ability to connect up to 32 alarms, this switch is perfect for enhancing fire safety in both residential and commercial settings. Its intelligent test button and visual indicators ensure optimal functionality and peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless Family Relay Switch | NC & NO Contacts | Battery Backup | RF Technology | by Cavius
Brand: Cavius
SKU: 9005 CAVRI
Alternatively Known As: Wireless Relay Interface, Fire Alarm Relay Switch, Smoke Alarm Relay Module, Wireless Alarm Relay
Technical Specifications

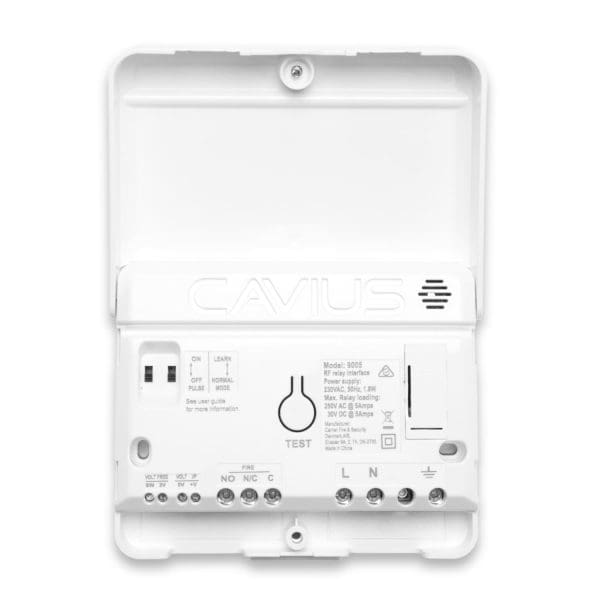

- Relay contacts: Normally Closed (NC) and Normally Open (NO) change over
- Trigger input: Volt-free 3V DC output with return, voltage input 3V – 30V
- Output relay rating: 250V AC @ 5 amps or 30V DC @ 5 amps
- Battery backup: Replaceable Duracell Lithium battery
- Visual indicator: Green LED for mains power supply
- RF technology: Connects up to 32 Wireless Family alarms
- Test button: Intelligent test to confirm alarm function
- Hush button: 10 minute silence
- Low battery alert: 30 days
- Installation: Smart-clip ceiling mechanism
- Dimensions (H x L x W): 40mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- Relay switch with Normally Closed (NC) and Normally Open (NO) change over contacts
- Trigger input for two-way activation (latched or pulsed) with volt-free 3V DC output and 3V-30V input
- Battery backup with replaceable Duracell Lithium battery
- Output relay rated at 250V AC @ 5 amps or 30V DC @ 5 amps
- Green LED visual indicator for mains power supply
- New RF technology supporting connection of up to 32 Wireless Family alarms
- Intelligent test button to confirm alarm functionality
- 10 minute hush button and 30 day low battery alert
- Easy installation with smart-clip ceiling mechanism
- Accessory option to function as a lamp hook
- Compatible with CAVIUS Wireless Family Mains Powered Smoke Alarm, Smart Remote, 5 Year Smoke Alarm, and Thermal Heat Alarm
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Integration with CAVIUS Wireless Family smoke and heat alarms

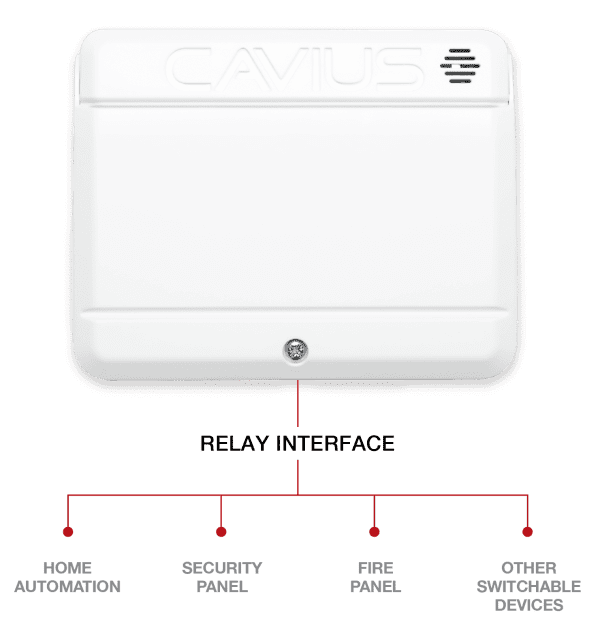

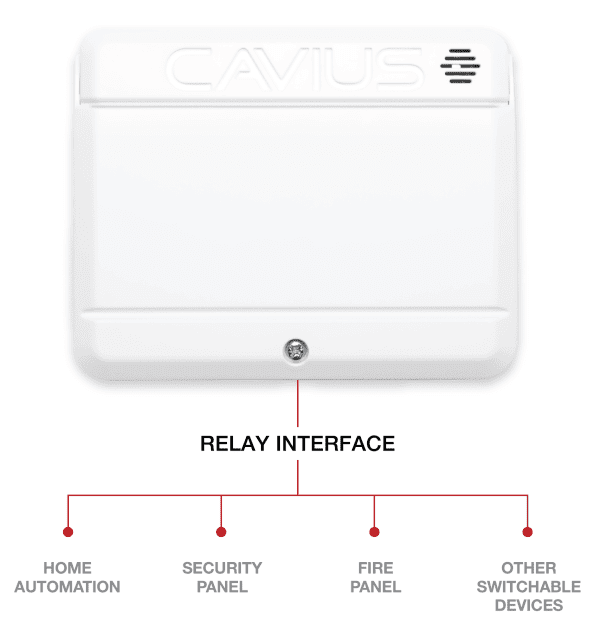

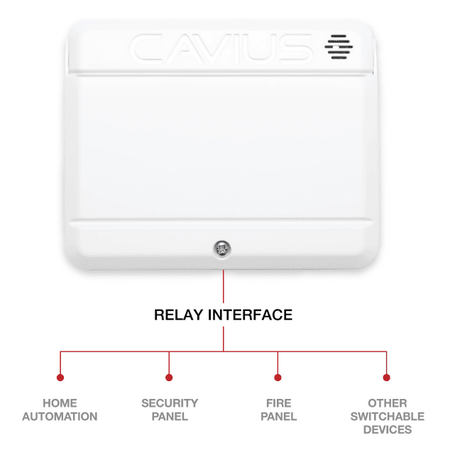

- Triggering auxiliary devices such as security alarm panels, fire alarm panels, home automation systems
- Activation of strobe lights, sounders, emergency lights
- Shutting down air conditioners or releasing magnetic door holders

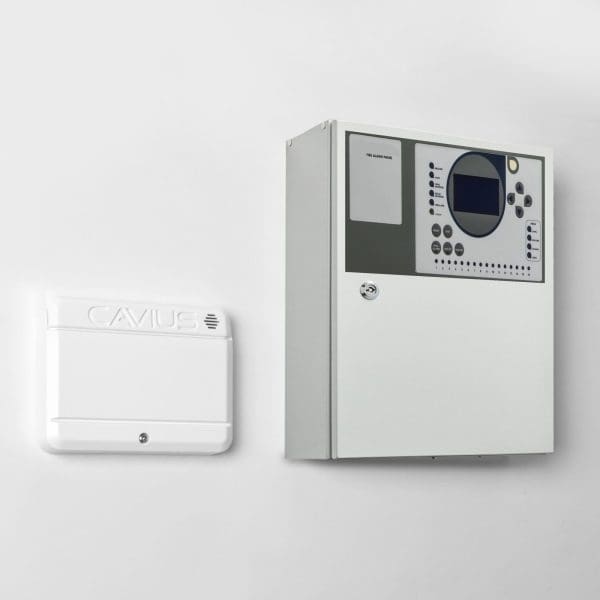

- Connection with third-party devices like sprinkler flow switches or fire panels
Standards & Compliance
- Complies with AS/NZS 3786:2014 for smoke alarms
Environmental Benefits
- Supports integration with energy-efficient home automation systems
- Enables timely fire detection and response, reducing potential environmental damage from fire incidents
Warranty Information
Standard manufacturer warranty applies; please refer to Cavius for specific warranty terms.
Available Now
The Cavius Wireless Family Relay Switch 9005 CAVRI is available for immediate purchase, ideal for residential and commercial fire safety integration.
