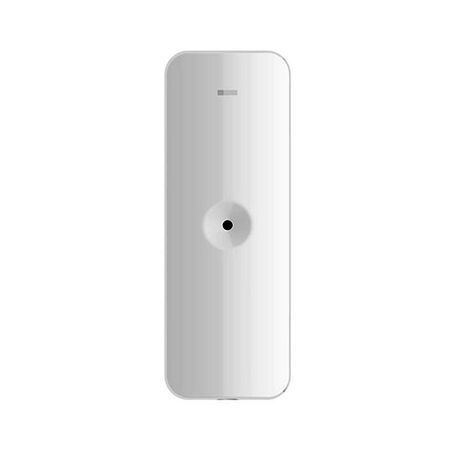

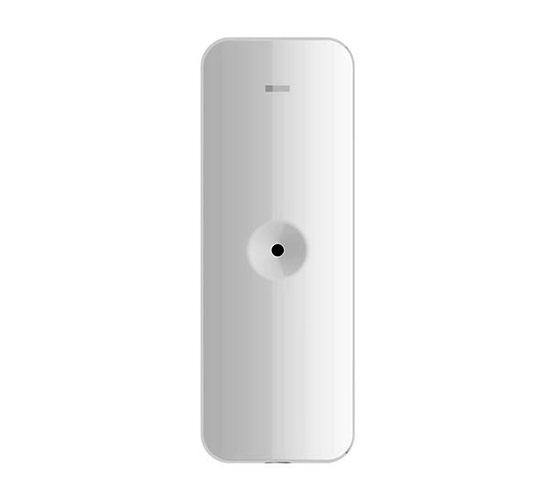

Wireless Glass Break Detector AX PRO Hikvision
Hikvision AX PRO wireless glass break detector for glass breakage detection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AX PRO Acoustic Glass Break Sensor, Wireless Glass Break Sensor, AX PRO Glass Break Detector
Technical Specifications
- Detection Method: Acoustic sensor
- Detection Range: 8 m
- Detection Angle: 120°
- Sensitivity Settings: 2 m, 4 m, 6 m and 8 m
- Compatible Glass: Float, plate, tempered, wired, laminated, leaded and double glazing
- Glass Thickness: 2.4 mm to 6.4 mm
- Glass Size: 0.3 m x 0.3 m to 3 m x 3 m
- Wireless Technology: Tri-X two-way RF wireless
- Transmission Frequency: 433 MHz
- Transmission Range: Up to 1 km in free space
- Transmission Security: AES-128 encryption
- Power Supply: 2 x CR123A batteries, 3 V typical
- Battery Life: Up to 5 years standby time
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Mounting Method: Wall or ceiling
- Application Environment: Indoor
- Dimensions (H x L x W): 107mm x 24.5mm x 38.8mm
- Weight: 0.1 kg
Key Features
- Acoustic detection of glass breakage
- Configurable detection sensitivity from 2 m to 8 m
- Supports multiple glass types, including laminated and double glazing
- Front and rear tamper protection
- Two-way Tri-X wireless communication with frequency hopping
- Signal-strength and ambient-temperature indicators
- Blue alarm LED indicator
- Power-up, remote ID and QR-code enrolment
- Suitable for integration with Hikvision AX PRO alarm systems
Professional Installation Requirements
- Installation, wireless enrolment and alarm-system commissioning should be performed by a suitably qualified security-alarm installer in accordance with the AX PRO installation instructions and applicable Australian requirements.
Applications
- Residential intrusion alarm systems
- Commercial security alarm systems
- Rooms with large windows or glazed doors
- Conservatories and enclosed outdoor rooms
- Retail, office and light-industrial premises
Standards & Compliance
- AS/NZS 2201.1:2007 is applicable to the design, installation, commissioning and maintenance of intrusion alarm systems; product-specific Australian certification should be confirmed for the supplied regional model.
Environmental Benefits
- Low-power wireless operation avoids dedicated signal cabling during installation
- Up to five-year battery life can reduce battery replacement frequency
- Replaceable batteries allow the detector to be maintained without discarding the complete unit
- Long service life and tamper monitoring can reduce premature replacement and electronic waste
Warranty Information
Hikvision AX PRO alarm products are commonly supplied in Australia with a 3-year manufacturer warranty through authorised distribution channels; confirm the applicable warranty period and terms with the supplying distributor. Batteries are generally treated as consumable items.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional model and distributor stock.
