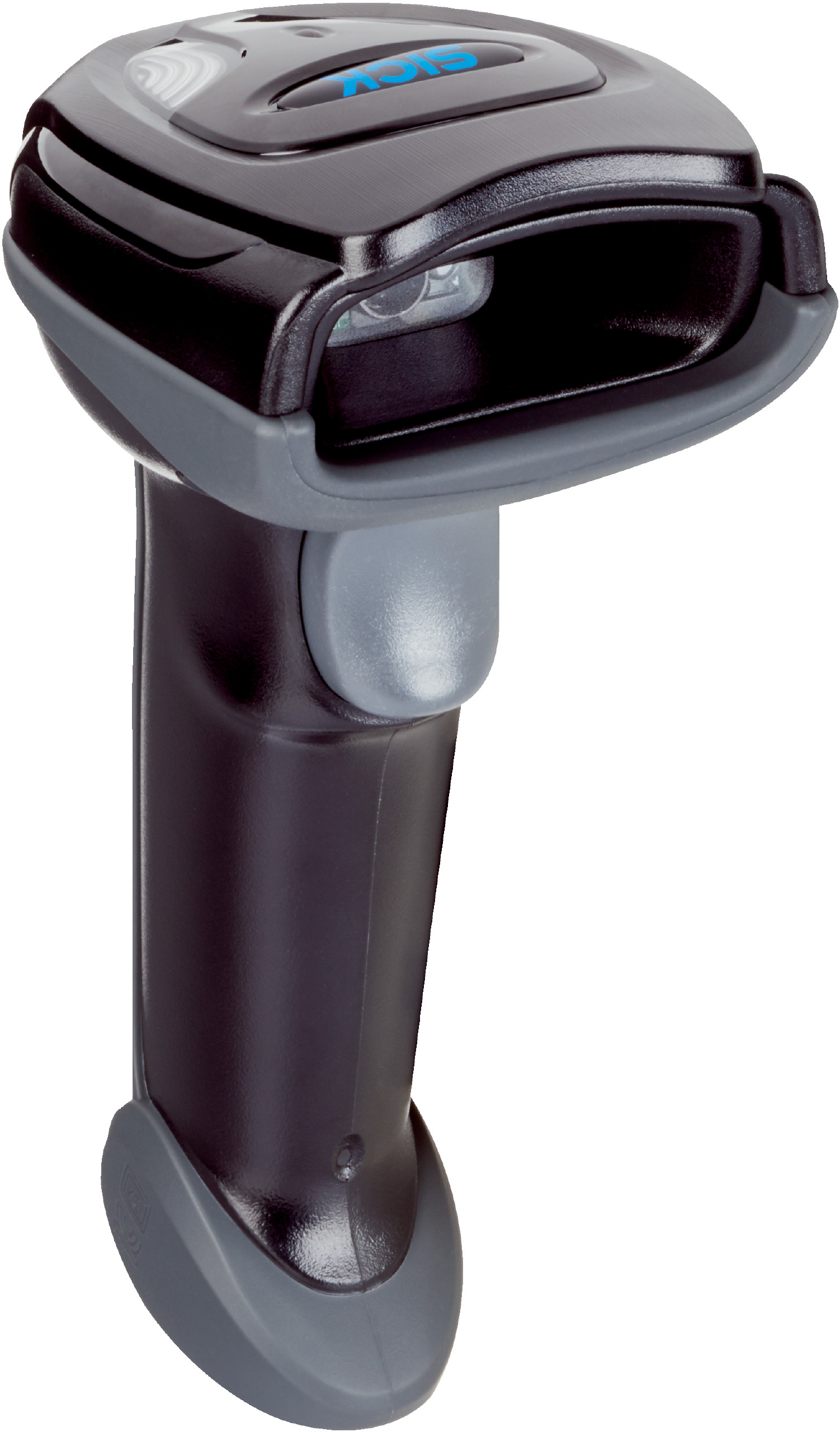

Wireless Handheld Barcode Scanner | UltraCap™ Batteryless Design | 1280 px x 800 px Resolution | IP52 Rated | by SICK
The Wireless Handheld Barcode Scanner is designed for efficient mobile scanning in industrial and commercial environments. Featuring a high sensor resolution of 1280 px x 800 px and a cable-free UltraCap™ design, it eliminates the need for batteries while providing a reading distance of 30 mm to 400 mm. With support for 1D and 2D barcode types and an IP52 rating for dust and splash protection, this scanner is perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED visible red, 660 nm
- Alignment aid: LED green, 660 nm
- Reading distance: 30 mm to 400 mm
- Scanning frequency: 60 Hz
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA (operation), 175 mA (standby)
- Enclosure rating: IP52
- Weight: 208 g including UltraCap™ rechargeable battery
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, QR code, Data Matrix, PDF417, and more
- Battery power: Over 4,200 scans per full charge
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out-of-range scanning
- Interfaces: Ethernet, PROFINET, EtherCAT®, Serial RS-232, PROFIBUS DP, USB, Bluetooth V4.0
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95% non-condensing
- Shock resistance: 25 drops from 1.8 m on concrete
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 160mm x 94mm x 71mm
- Weight: 0.21 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with Bluetooth V4.0 and multiple fieldbus integration options
- High sensor resolution of 1280 px x 800 px with LED visible red light source
- Reading distance from 30 mm to 400 mm with scanning frequency of 60 Hz
- Supports 1D, 2D, and stacked barcode types with large code buffer
- IP52 rated enclosure for dust and splash protection
- Shock resistant to 25 drops from 1.8 m height on concrete
- Wireless operating range up to 100 m with batch function for extended radius
Professional Installation Requirements
- Professional installation recommended for integration with existing fieldbus systems and configuration using IDM Setup Tool.
Applications
- Standard application for mobile handheld scanning in industrial and commercial environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Batteryless operation reduces hazardous waste and environmental impact
- Long service life lowers electronic waste generation
- Non-hazardous goods classification simplifies shipping and handling
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now

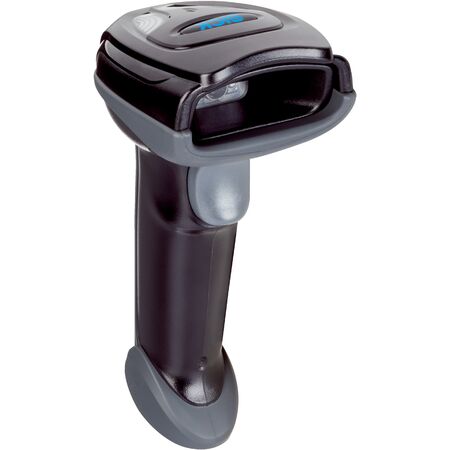

The SICK IDM241E-411S wireless handheld scanner is available for immediate purchase, ideal for industrial and commercial scanning applications requiring robust, batteryless operation.
