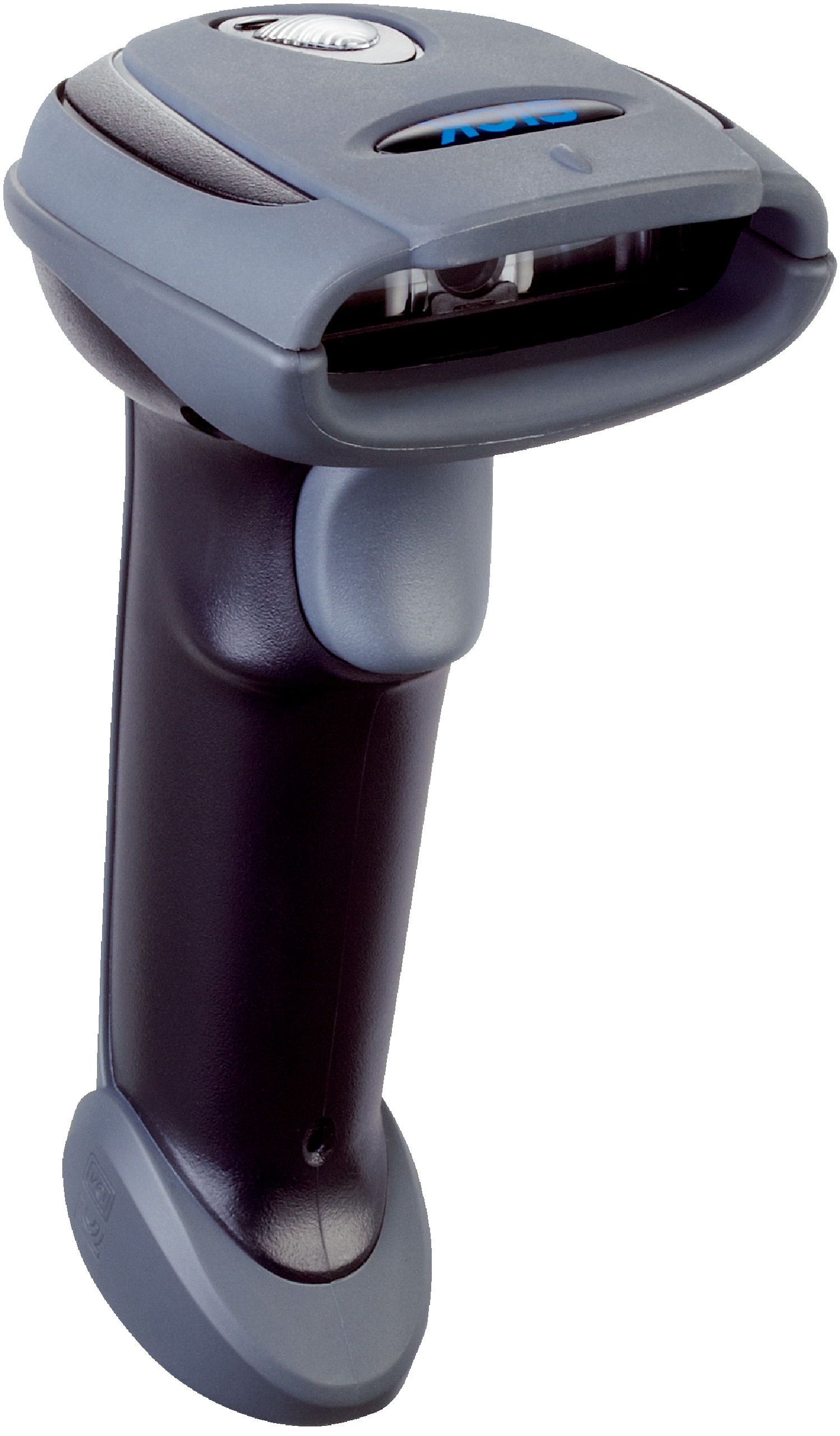

Wireless Handheld Barcode Scanner | UltraCap™ Batteryless Design | IP52 Rated | 100m Wireless Range | by SICK
The Wireless Handheld Barcode Scanner is designed for mobile scanning in industrial and commercial environments, featuring a cable-free UltraCap™ supercapacitor for batteryless operation. With a reading distance of 20 mm to 850 mm and an IP52 rating for dust and water protection, this scanner ensures reliability and efficiency in various applications, making it ideal for professionals seeking a durable and eco-friendly solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED, Visible, Red, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC to 5 V
- Current consumption: Operation 180 mA, Standby 80 mA
- Enclosure rating: IP52
- Weight: 208 g including UltraCap™ rechargeable battery
- Readable code structures: 1D codes, Stacked
- Supported bar code types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN/JAN, MSI/Plessey, Australian Post, and many others
- Stacked code types: PDF417, MicroPDF417, Composite Code
- Code buffer: 80,000 codes (EAN)
- Shock resistance: 25 drops from 1.8 m on concrete
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Interfaces: Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, USB, Serial RS-232 TTL, Bluetooth V4.0
- Dimensions (H x L x W): 156.2mm x 97.8mm x 70.5mm
- Weight: 0.208 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with wireless operating range up to 100 m (free view)
- Supports multiple interfaces including Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, USB, Serial RS-232 TTL, and Bluetooth V4.0
- Reads 1D and stacked barcodes with high resolution and scanning frequency
- IP52 rated enclosure for protection against dust and water spray
- Shock resistant to 25 drops from 1.8 m height on concrete
- Includes rechargeable UltraCap™ battery with over 4,200 scans per full charge
- Optical and acoustic indicators for good read, battery charge, and radio connection status
Professional Installation Requirements
- Professional installation and commissioning by qualified personnel recommended, including setup of base station, connecting cables, and power supply units.
Applications
- Standard application for mobile handheld scanning in industrial and commercial environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Batteryless UltraCap™ supercapacitor reduces electronic waste compared to battery-operated devices
- Long service life lowers operating costs and environmental impact
- Non-hazardous for shipping, reducing transport risks
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now

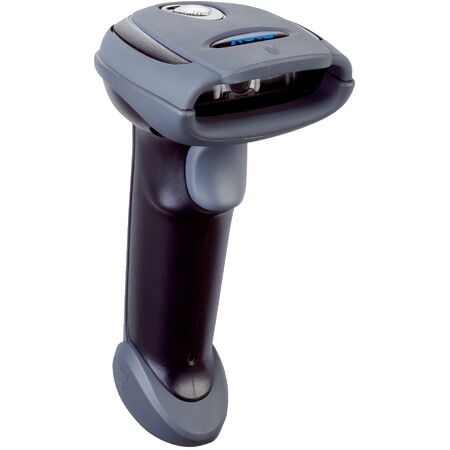

The SICK IDM141E-411S wireless handheld scanner is available for immediate purchase, ideal for industrial and commercial barcode scanning applications requiring mobility and reliability.
