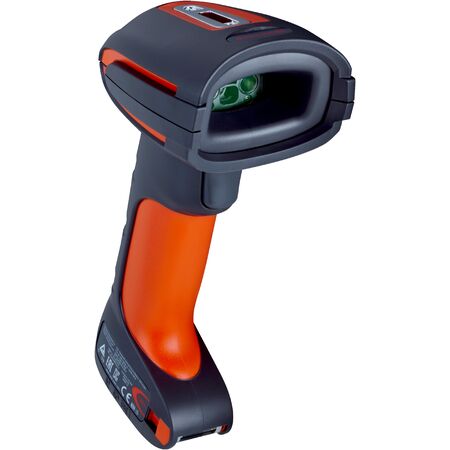

Wireless Industrial Barcode Scanner HW1981IFR-3 | 1280px x 800px Resolution | IP65 Rated | by SICK
The Wireless Industrial Barcode Scanner HW1981IFR-3 features a high sensor resolution of 1280 px x 800 px and an impressive reading distance of 150 mm to 16,000 mm. Designed for industrial applications, it supports 1D, 2D, and stacked barcode types, making it ideal for data capture in various environments. With its durable IP65 housing and wireless operation, this scanner ensures reliable performance while minimizing installation impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 800 px
- Light source: LED, Visible, Red, 624 nm ± 18 nm
- Alignment aid: Laser, Red, 650 nm
- Reading distance: 150 mm to 16,000 mm
- Code resolution: ≥ 0.05 mm (1D), ≥ 2 mm (2D)
- Supply voltage: 3.7 V DC
- Current consumption: Charging 1 A at 5 V DC, Standby 120 mA
- Housing material: Plastic (UL 94 V-0)
- Enclosure rating: IP65
- Weight: 420 g including rechargeable battery
- Readable code structures: 1D, 2D, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, Data Matrix, QR code, PDF417, and more
- Battery power: Minimum 7,200 scans over 8 hours
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out of range scanning
- Interfaces: Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB, PS/2, Bluetooth
- Indicators: 2 LEDs, beeper, vibration
- Shock resistance: 50 drops from 2 m at -30 °C
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 195mm x 133mm x 75mm
- Weight: 0.42 kg
Key Features
- Wireless variant with full range focus
- High sensor resolution of 1,280 px x 800 px
- Visible red LED light source at 624 nm ± 18 nm
- Laser alignment aid at 650 nm
- Reading distance from 150 mm to 16,000 mm
- Omni-directional code alignment
- Supports 1D, 2D, and stacked barcode types
- Battery supports minimum 7,200 scans over 8 hours
- Code buffer for batch and out of range scanning
- Multiple interface options including Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB, PS/2, and Bluetooth
- IP65 rated housing for dust and water protection
- Shock resistant to 50 drops from 2 m at -30 °C
- Operating temperature range from -20 °C to +50 °C
- Ambient light immunity up to 100,000 lx
Professional Installation Requirements
- Professional installation recommended to ensure proper setup and integration with existing industrial systems.
Applications
- Industrial application for barcode scanning and data capture
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Durable IP65 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HW1981IFR-3 Wireless Industrial Barcode Scanner is available for immediate purchase, ideal for industrial scanning applications requiring robust wireless data capture.
