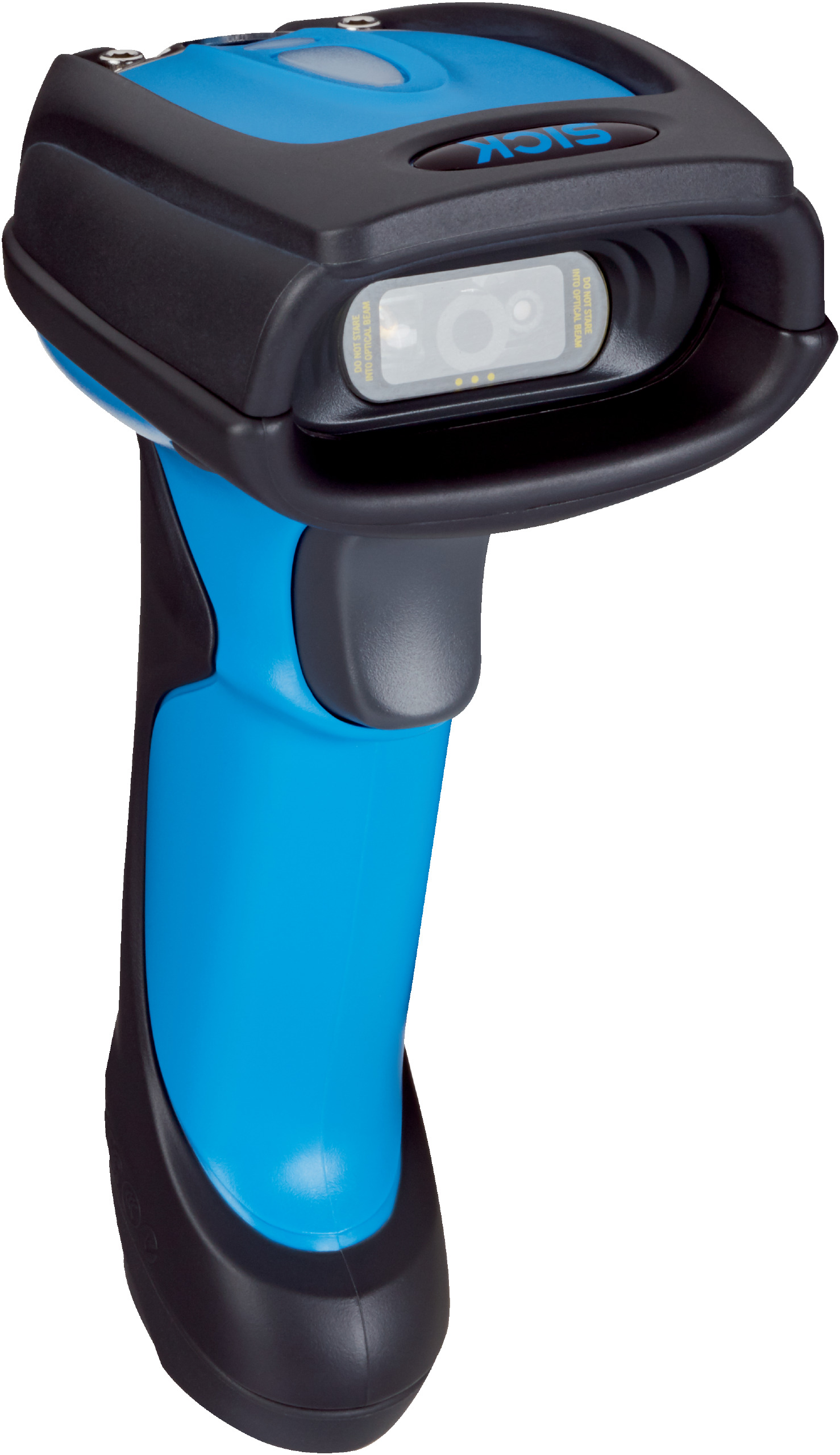

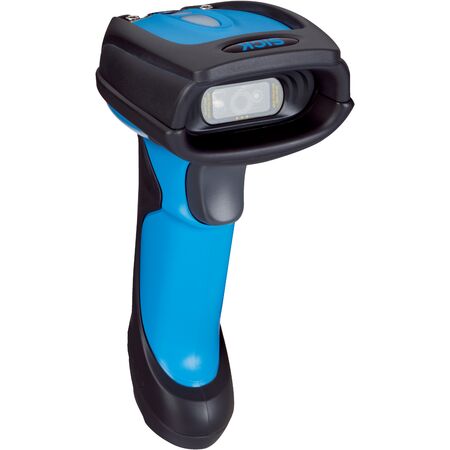

Wireless Industrial Barcode Scanner IDM261-411S | 1280 px x 800 px Resolution | IP65 Rated | by SICK
The Wireless Industrial Barcode Scanner IDM261-411S offers high sensor resolution of 1280 px x 800 px and a robust IP65 rated enclosure, making it ideal for industrial applications requiring reliable wireless scanning. With Bluetooth V4.0 connectivity and the ability to read 1D, 2D, and stacked barcodes, this scanner supports over 60,000 scans per charge, ensuring efficiency in warehouse and logistics operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, Visible, Red, 660 nm
- Alignment aid: Laser, Red, 630 nm
- Laser class: 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC, ± 5%
- Current consumption: 750 mA (operation), 175 mA (standby)
- Enclosure rating: IP65
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Battery power: Over 60,000 scans per full charge
- Code buffer: 5,000 codes (batch mode), 100,000 codes (out of range)
- Interfaces: Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232, USB, Bluetooth V4.0
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.228 kg
Key Features
- Wireless scanner design with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 800 px with visible red LED light source
- Reads 1D, 2D, and stacked barcodes including QR, Data Matrix, PDF417, and many postal codes
- Battery supports over 60,000 scans per full charge
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height on concrete
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232, and USB
- Optical, acoustic, and vibration indicators for status feedback
- Code buffer stores up to 5,000 codes for batch mode and 100,000 codes for out-of-range scanning
Professional Installation Requirements
- Professional installation recommended including setup of base station, connecting cables, and power supply for commissioning.
Applications
- Industrial applications requiring wireless barcode scanning
- Warehouse and logistics for 1D, 2D, and stacked code reading
- Batch scanning and extended wireless range operations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation complexity
- Long battery life minimizes frequent charging and energy consumption
- Durable IP65 housing extends product lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM261-411S Wireless Industrial Barcode Scanner is available for immediate purchase, ideal for industrial and logistics applications requiring robust wireless scanning solutions.
