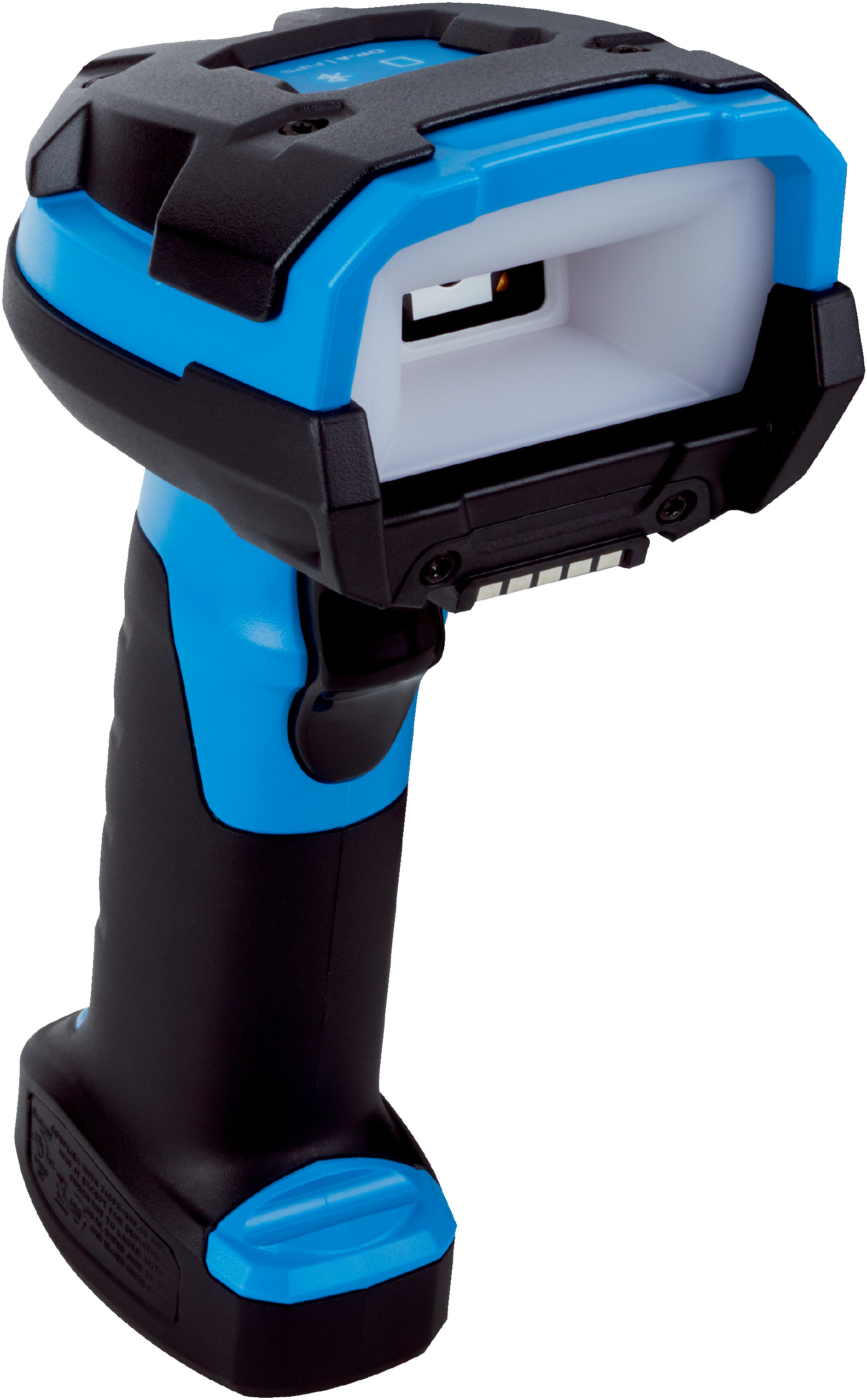

Wireless Industrial Barcode Scanner | 1280 px x 960 px Resolution | Bluetooth V4.0 | IP65 & IP68 Rated | by SICK
The Wireless Industrial Barcode Scanner is designed for high-performance scanning in industrial applications, featuring a 1280 px x 960 px resolution and Bluetooth V4.0 connectivity with an operating range of up to 100 m. With its robust IP65 and IP68 enclosure ratings, this scanner is perfect for warehousing and manufacturing environments, ensuring durability and reliability even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px
- Light source: LED visible warm white and red (634 nm, 630 nm alignment aid)
- Reading distance: 3 mm to 125 mm
- Code resolution: ≥ 0.08 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 1200 mA (full charge), 400 mA (minimum charge), 80 mA standby
- Enclosure rating: IP65 and IP68
- Battery: 3100 mAh rechargeable
- Code buffer: 9000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial (RS-232 TTL), USB, Bluetooth V4.0
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Shock resistance: Multiple drops from 2.4 m onto concrete
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.4 kg
Key Features
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 960 px
- Reads 1D, 2D, stacked, and direct-marked codes omni-directionally
- LED visible light source with warm white and red LEDs
- Robust housing with IP65 and IP68 enclosure rating
- Battery capacity of 3100 mAh enabling over 100,000 scans per charge
- Multiple interfaces including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial, USB
- Shock resistant to multiple falls from 2.4 m onto concrete
- Optical, acoustic, and vibration indicators for operational status
- Configuration software: Z-Up Tool
Professional Installation Requirements
- Professional installation recommended to integrate with existing industrial networks and ensure optimal wireless performance.
Applications
- Industrial applications requiring wireless barcode scanning
- Warehousing and logistics for 1D and 2D code reading
- Manufacturing environments needing durable and high-resolution scanning
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Long battery life reduces frequent charging and energy consumption
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

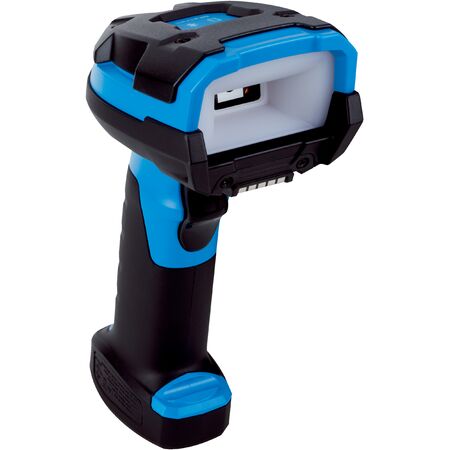

The SICK ZS3678-DPAF262VZK wireless industrial barcode scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring robust and flexible scanning solutions.
