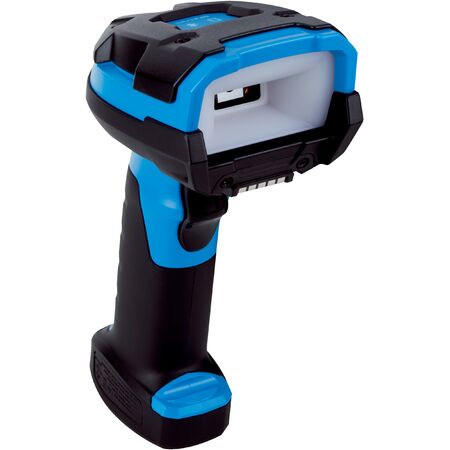

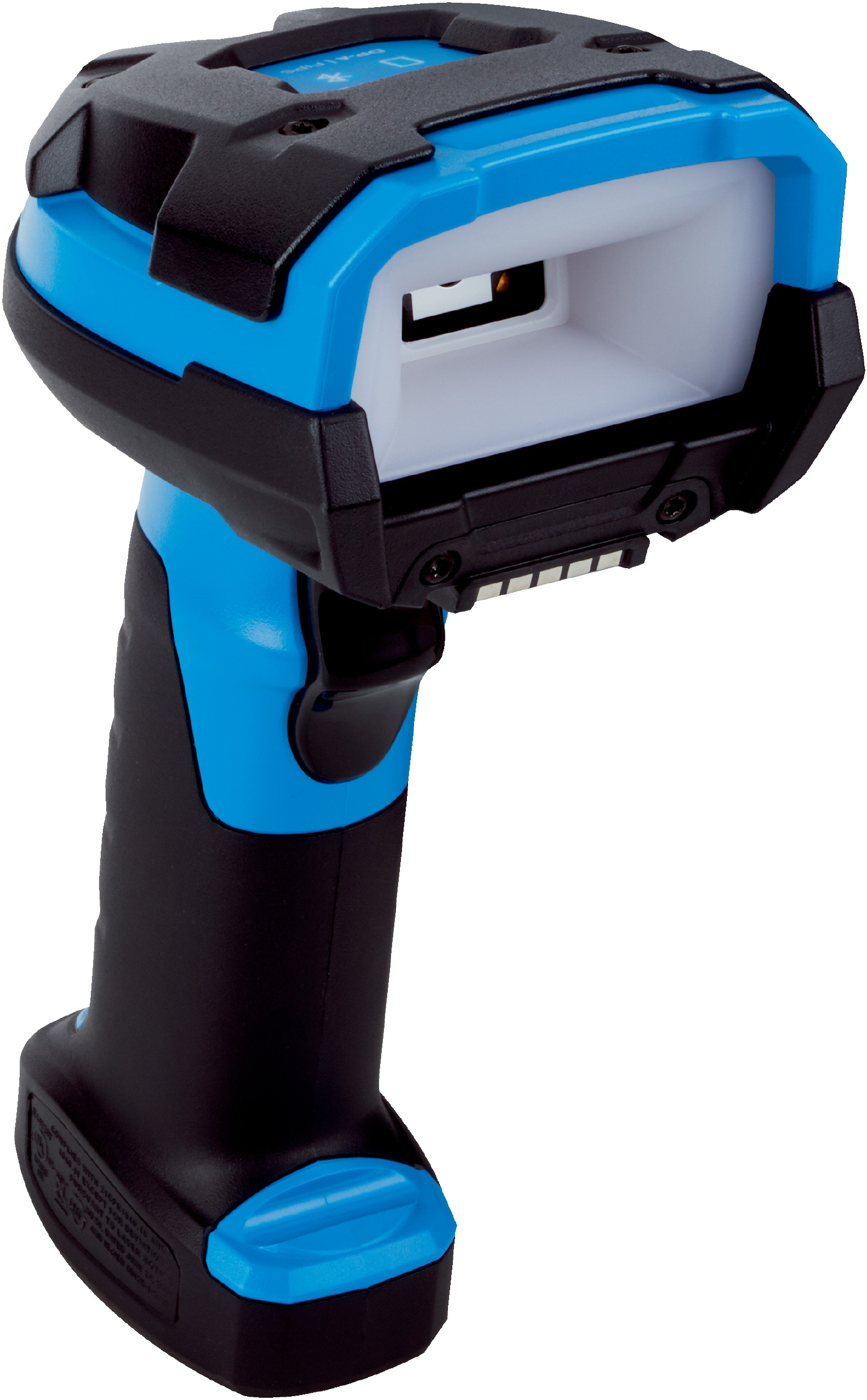

Wireless Industrial Barcode Scanner | 1280px x 960px Resolution | IP65 & IP68 Rated | by SICK
The Wireless Industrial Barcode Scanner is designed for robust performance in industrial applications, featuring a high sensor resolution of 1280px x 960px and a wireless range of up to 100 meters. Ideal for logistics and manufacturing environments, this scanner reads 1D, 2D, stacked, and direct-marked codes omni-directionally, ensuring reliable code reading in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px
- Light source: LED visible warm white and red (634 nm, 630 nm alignment aid)
- Reading distance: 3 mm to 125 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 1,200 mA (full charge mode), 400 mA (minimum charge mode), 80 mA standby
- Enclosure rating: IP65 and IP68
- Weight: 402 g including rechargeable battery
- Battery power: 3,100 mAh
- Code buffer: 9,000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial (RS-232 TTL), USB, Bluetooth V4.0
- Wireless range: up to 100 m free view
- Shock resistance: multiple falls from 2.4 m onto concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.4 kg
Key Features
- Wireless variant with a wireless operating range up to 100 m (free view)
- High sensor resolution of 1,280 px x 960 px
- Reads 1D, 2D, stacked, and direct-marked codes omni-directionally
- Supports multiple interfaces including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, USB, Serial, and Bluetooth
- Battery capacity of 3,100 mAh enabling over 100,000 scans per full charge
- Robust housing with IP65 and IP68 enclosure rating
- Shock resistant to multiple falls from 2.4 m onto concrete
- Optical, acoustic, and vibration indicators for operational status
- Configuration software: Z-Up Tool
Professional Installation Requirements
- Professional installation recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial applications requiring wireless barcode scanning
- Environments needing robust and reliable code reading
- Use in logistics, manufacturing, and warehouse management
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Long battery life reduces frequent battery replacements
- Durable design minimizes electronic waste through extended product life
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK ZS3678-DPAF262VZWW wireless industrial barcode scanner is available for immediate purchase, ideal for industrial and logistics applications requiring reliable wireless code reading.
