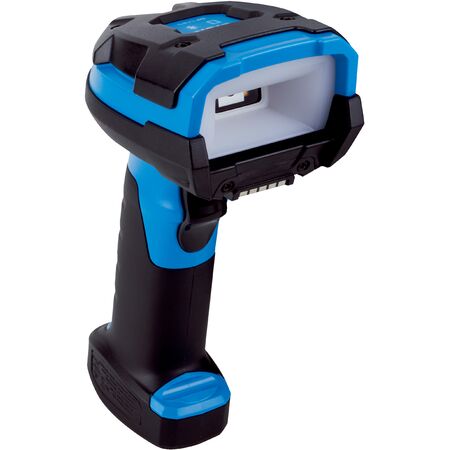

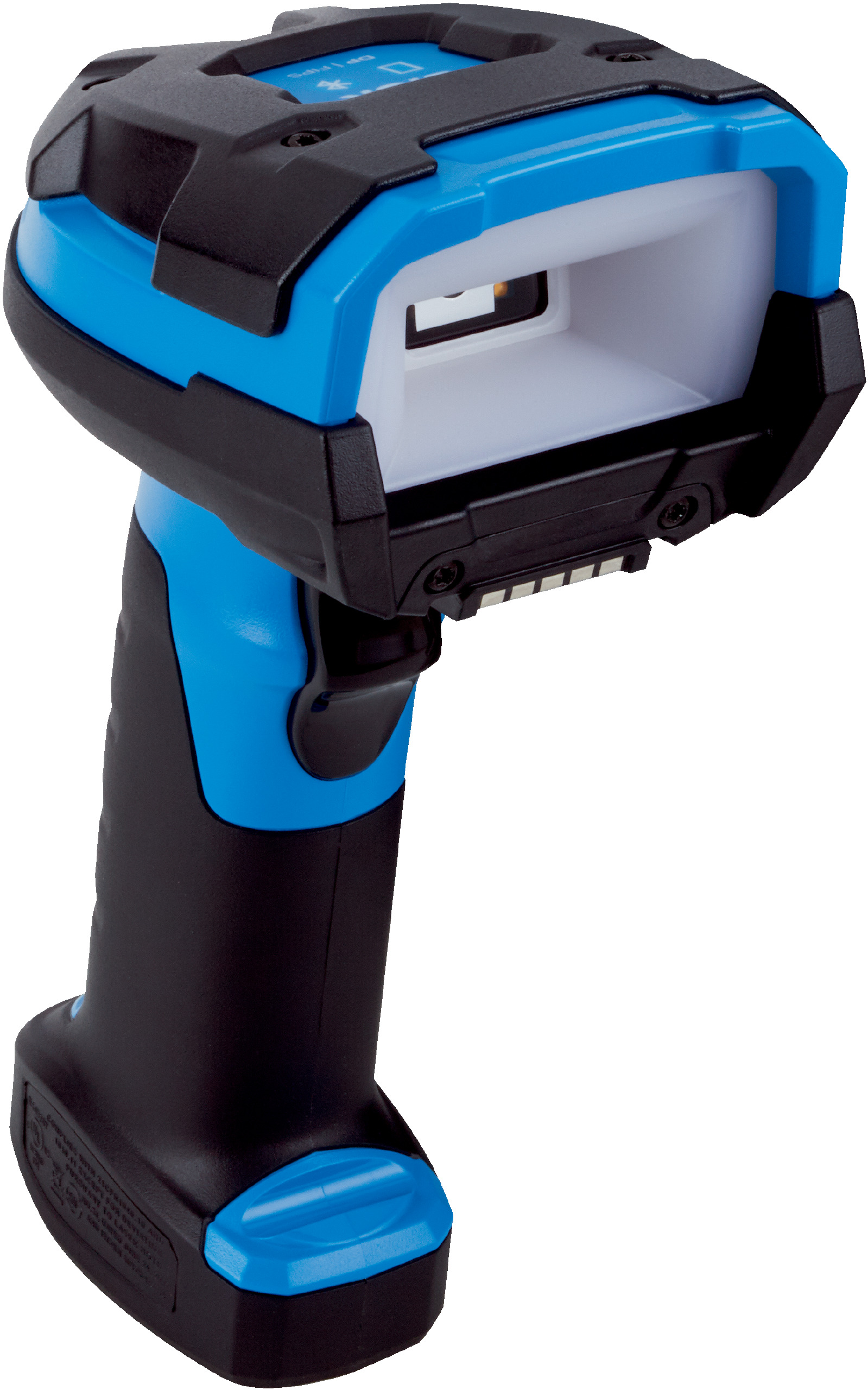

Wireless Industrial Barcode Scanner | 1280 px x 960 px Resolution | IP65 & IP68 Rated | by SICK
The Wireless Industrial Barcode Scanner is designed for high-density code reading in industrial applications. With a high sensor resolution of 1280 px x 960 px and robust IP65/IP68 rated housing, it excels in harsh environments. Ideal for manufacturing and logistics, this scanner offers wireless operation with Bluetooth V4.0, ensuring flexibility and efficiency in batch scanning tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px
- Light source: LED visible warm white and red (634 nm, 630 nm alignment aid)
- Reading distance: 0 mm to 86 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 1,200 mA (full charge), 400 mA (minimum charge), 80 mA standby
- Enclosure rating: IP65 and IP68
- Battery: 3,100 mAh rechargeable
- Code buffer: 9,000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial (RS-232 TTL), USB, Bluetooth V4.0
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Shock resistance: Multiple drops from 2.4 m onto concrete
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.4 kg
Key Features
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1,280 px x 960 px
- Reads 1D, 2D, stacked, and direct-marked codes omni-directionally
- Robust IP65 and IP68 rated housing for harsh environments
- Battery capacity of 3,100 mAh enabling over 100,000 scans per charge
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial, and USB
- Shock resistant to multiple drops from 2.4 m onto concrete
- Optical, acoustic, and vibration indicators for operational status
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with safety standards.
Applications
- Industrial applications requiring high density code reading
- Wireless scanning in manufacturing and logistics
- Batch scanning and extended wireless range environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Long battery life minimizes frequent battery replacements
- Durable IP65/IP68 housing extends product lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK ZS3678-DP2F263VZWW wireless high density industrial scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring robust and flexible code scanning solutions.
