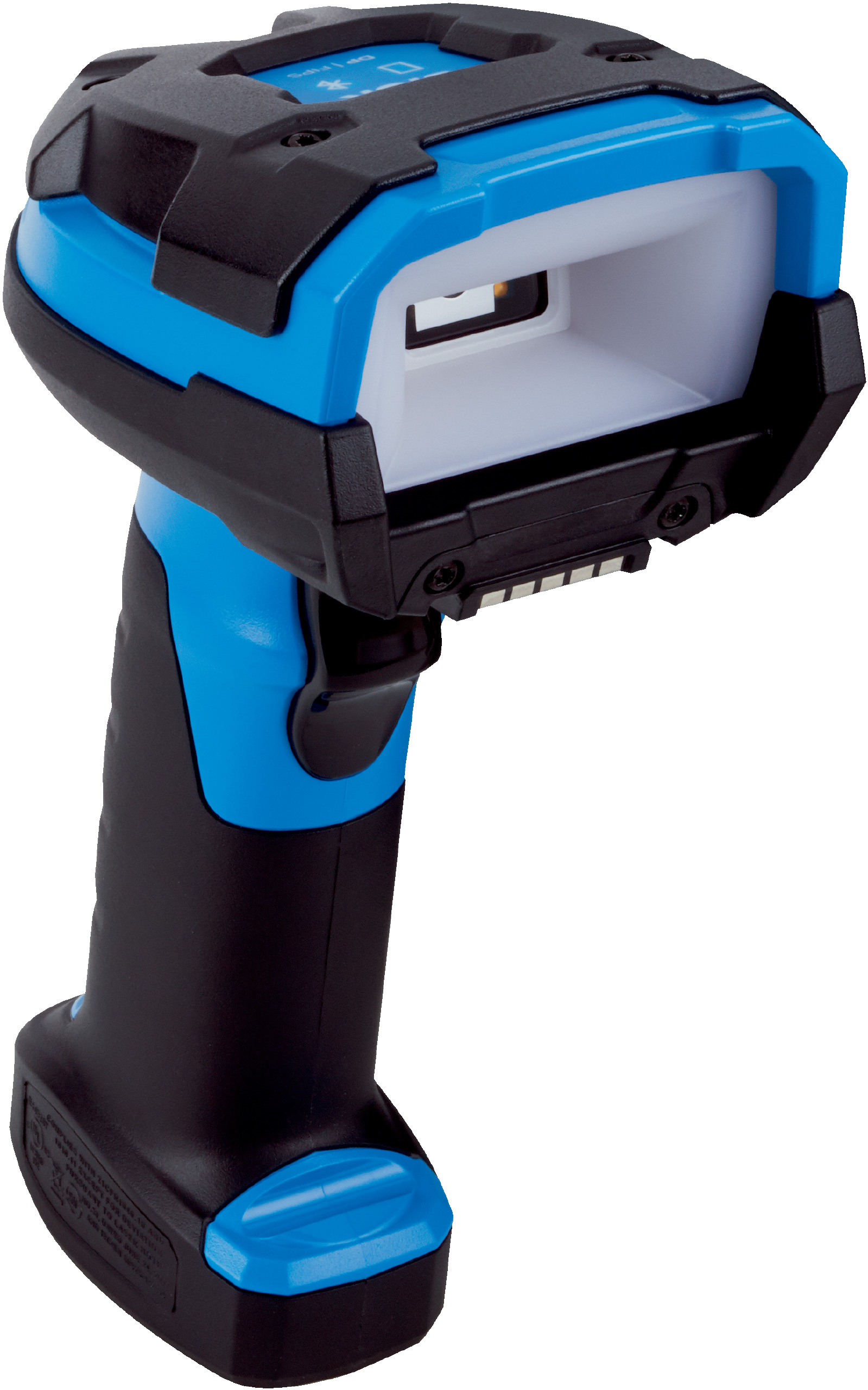

Wireless Industrial Barcode Scanner | 1280 px x 960 px Resolution | IP65 & IP68 Rated | by SICK
The Wireless Industrial Barcode Scanner is designed for high-density barcode scanning in industrial applications. With a high sensor resolution of 1280 px x 960 px and a robust IP65/IP68 enclosure, it ensures reliable performance in challenging environments. Ideal for wireless scanning up to 100 m, this scanner features a long-lasting 3100 mAh battery, capable of over 100,000 scans per charge, making it perfect for manufacturing and logistics operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px
- Light source: LED visible warm white and red (634 nm, 630 nm)
- Reading distance: 0 mm to 86 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 1200 mA (full charge), 400 mA (minimum charge), 80 mA standby
- Enclosure rating: IP65 and IP68
- Battery power: 3100 mAh, over 100,000 scans per full charge
- Code buffer: 9000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB, Bluetooth V4.0
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: Multiple falls from 2.4 m onto concrete
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.4 kg
Key Features
- Wireless variant with Bluetooth TM V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 960 px
- Reads 1D, 2D, stacked, and direct-marked codes omni-directionally
- LED light source with visible warm white and red LEDs for alignment aid
- Battery capacity of 3100 mAh enabling over 100,000 scans per full charge
- Robust housing with IP65 and IP68 enclosure rating
- Shock resistant to multiple falls from 2.4 m concrete height
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial scanning equipment and network integration.
Applications
- Industrial applications requiring high density barcode scanning
- Wireless scanning environments with up to 100 m operating range
- Batch scanning and communication with multiple scanners via base station
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Long battery life reduces frequent battery replacements
- Durable design minimizes electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

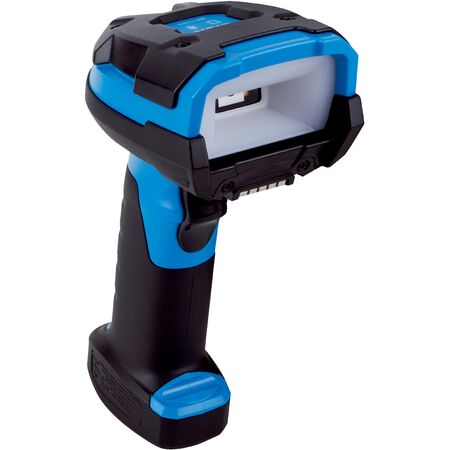

The SICK ZS3678-DP2F263VZK wireless high density industrial scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring robust and flexible barcode scanning solutions.
